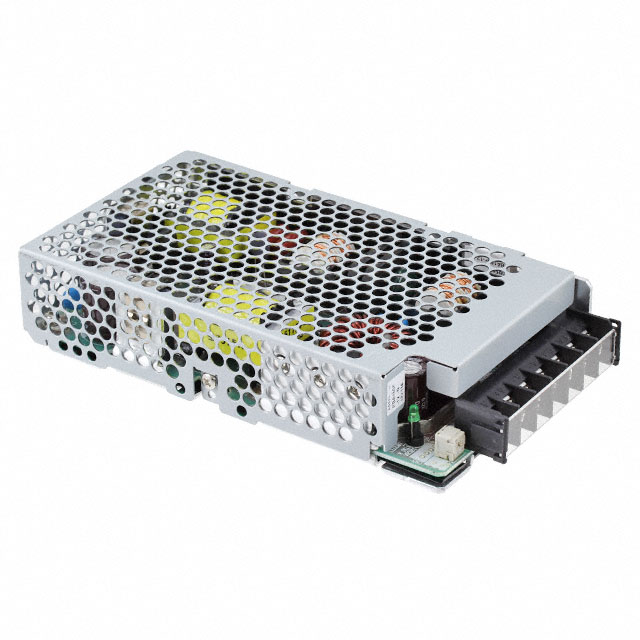

PBA150 Series

Switching Power Supplies

Manufacturer: Cosel USA, Inc.

Catalog

Switching Power Supplies

Catalog

Switching Power Supplies

...

Part	Minimum Load Required	Mounting Type	Voltage - Isolation	Approval Agency	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [custom]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output 1	Applications	Voltage - Output 1
Cosel USA, Inc. PBA150F-36-CVN		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "	36 V	Enclosed	71 °C	-10 °C	88 %	4.3 A	ITE (Commercial)
Cosel USA, Inc. PBA150F-3R3-CT		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Open Frame	71 °C	-10 °C		30 A	ITE (Commercial)	3.3 V
Cosel USA, Inc. PBA150F-3R3-R		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Open Frame	71 °C	-10 °C		30 A	ITE (Commercial)	3.3 V
Cosel USA, Inc. PBA150F-24-CR		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Open Frame	71 °C	-10 °C	88 %		ITE (Commercial)	24 V
Cosel USA, Inc. PBA150F-15-RT		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Open Frame	71 °C	-10 °C	87 %	10 A	ITE (Commercial)	15 V
Cosel USA, Inc. PBA150F-5-KN		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Enclosed	71 °C	-10 °C	86 %	30 A	ITE (Commercial)	5 V
Cosel USA, Inc. PBA150F-24-VN		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Enclosed	71 °C	-10 °C	88 %		ITE (Commercial)	24 V
Cosel USA, Inc. PBA150F-24-G		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Open Frame	71 °C	-10 °C	88 %		ITE (Commercial)	24 V
Cosel USA, Inc. PBA150F-12-CR		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Open Frame	71 °C	-10 °C	86 %	13 A	ITE (Commercial)	12 V
Cosel USA, Inc. PBA150F-24-CVN		Chassis Mount	3000 V	CE cURus TUV	1	6.61 in	167.9 mm	93 mm	1.34 in	34 mm	3.66 "		Enclosed	71 °C	-10 °C	88 %		ITE (Commercial)	24 V
