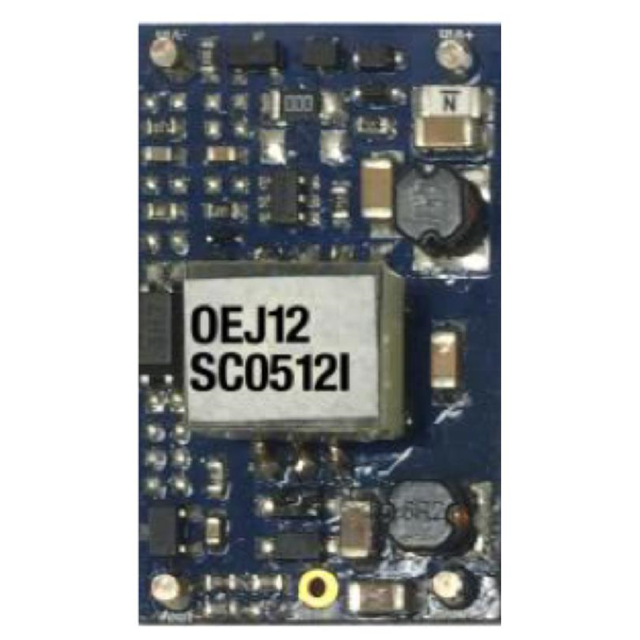

OEJ12SC0512 Series
Manufacturer: ETA-USA
Beta
⌘K
DC DC CONVERTER 12V 1.56W
| Part | Voltage - Output 1 | Current - Output (Max) [Max] | Package / Case | Power (Watts) | Number of Outputs | Applications | Type | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Voltage - Isolation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ETA-USA | 12 V | 130 mA | 4-DIP Module | 1.56 W | 1 | ITE (Commercial) | Isolated Module | 4.5 V | 16 V | -20 ░C | 71 °C | 20 mm | 32 mm | 0.39 " | 10 mm | 0.79 in | 1.26 in | 83 % | 1.5 kV | Through Hole |
