09300240 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, PLASTIC COVER, LOW PROFILE, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 24B

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Lock Location	Ingress Protection	Housing Material	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Size	Connector Type	Housing Finish	Style	Thread Size

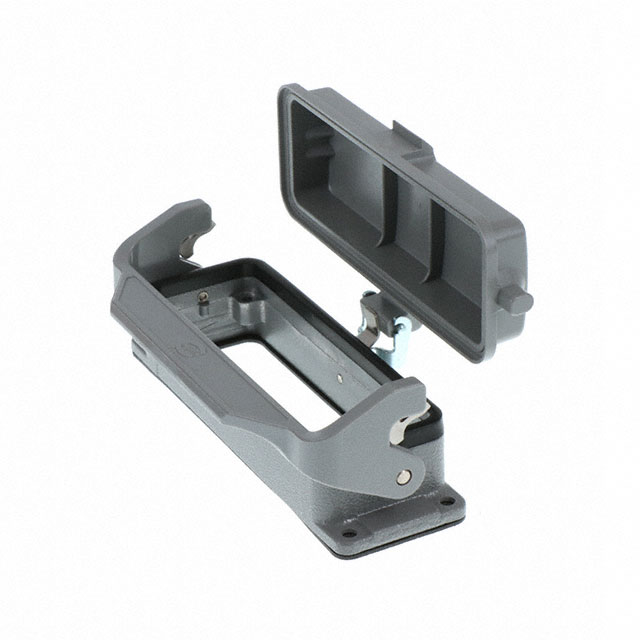

HARTING 09300240304	125 °C	-40 C	Gray	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "	Cover	24 B	Base - Panel Mount	Powder Coated	Bottom Entry

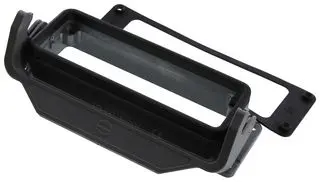

HARTING 09300240307	125 °C	-40 C	Gray	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "		24 B	Base - Panel Mount	Powder Coated	Bottom Entry

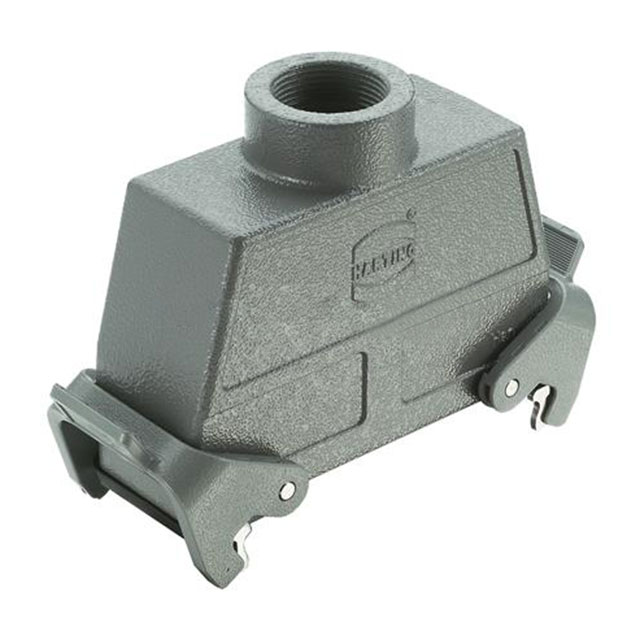

HARTING 09300240730	125 °C	-40 C	Gray	Locking Clip (2) on Hood Top	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	3.087 "	43 mm	120 mm	78.4 mm	1.693 "	4.724 in	Cable to Cable	24 B	Hood - Coupling	Powder Coated	Bottom Entry Top or Bottom Entry	PG21
HARTING 09300240585				Locking Clip (1) on Hood			2.992 in	43 mm	120 mm	76 mm	1.693 "	4.724 in		24 B	Hood		Side Entry	PG29
HARTING 09300240481	125 °C	-40 C	Gray	Locking Clip (1) on Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	2.992 in	43 mm	120 mm	76 mm	1.693 "	4.724 in		24 B	Hood	Powder Coated	Top Entry	PG29
HARTING 09300240543				Locking Clip (1) on Base Bottom			2.992 in	43 mm	120 mm	76 mm	1.693 "	4.724 in		24 B	Hood		Side Entry	PG29

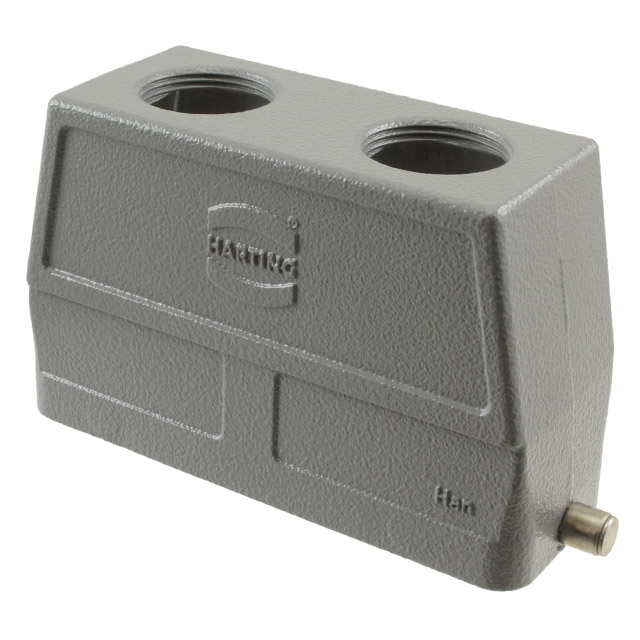

HARTING 09300240447				Locking Clip (1) on Base Bottom			2.992 in	43 mm	120 mm	76 mm	1.693 "	4.724 in		24 B	Hood		Top Entry Dual	PG21
HARTING 09300240318	125 °C	-40 C	Gray	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	1.138 "	43.4 mm	140 mm	28.9 mm	1.709 "	5.512 "	Cover	24 B	Base - Panel Mount	Powder Coated	Bottom Entry
HARTING 09300240221	125 °C	-40 C	Gray	Locking Clip (2) on Hood	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	3.181 in	57 mm	144 mm	80.8 mm	2.244 "	5.669 in	Cover	24 B	Base - Box Mount	Powder Coated	Side Entry	PG29
HARTING 09300240461	125 °C	-40 C	Gray	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	2.992 in	43 mm	120 mm	76 mm	1.693 "	4.724 in		24 B	Hood	Powder Coated	Top Entry Dual	PG29
