614J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN AXIAL 60X32MM 24VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Air Flow | Air Flow | Material - Frame | Lifetime @ Temp. | Power (Watts) | RPM | Termination | Bearing Type | Fan Type | Weight | Weight | Size / Dimension [z] | Size / Dimension [x] | Noise | Features | Voltage - Rated | Width [y] | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

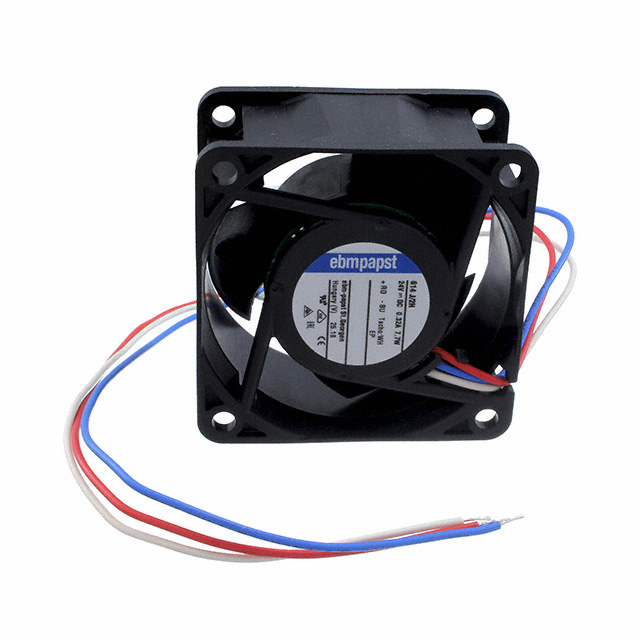

 ebm-papst Inc. | 14 VDC | 26.4 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | 41.1 CFM | 1.15 m³/min | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 57500 Hrs | 7.7 W | 11700 RPM | 3 Wire Leads | Ball | Tubeaxial | 99.79 g | 0.22 lb | 60 mm | 60 mm | 62 dB(A) | Locked Rotor Protection Speed Sensor (Tach) | 24 VDC | 32 mm | -20 ░C | 70 °C | ||||||

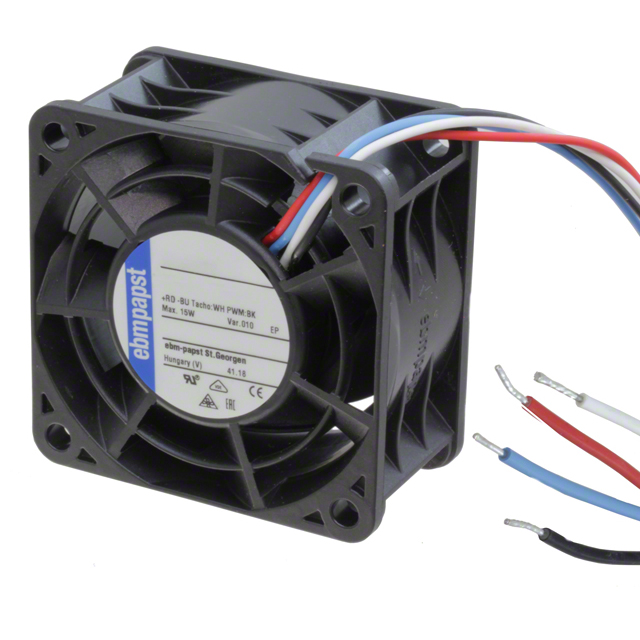

 ebm-papst Inc. | 18 VDC | 30 V | Polyamide (PA) Nylon Fiberglass Reinforced | 48.9 CFM | 1.37 m³/min | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 14.2 W | 15000 RPM | 4 Wire Leads | Ball | Tubeaxial | 60 mm | 60 mm | 62 dB(A) | Auto Restart Locked Rotor Protection PWM Control Speed Sensor (Tach) | 24 VDC | 32 mm | -40 C | 172 °F | 590 mA | CE UL VDE | 78 °C | -40 °C | 2.288 in H2O | 570 Pa |
