2317211 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

4P,2MM,REC,IDC,LATCH,26-30,STRIP

Part	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Contact Finish	Fastening Type	Number of Rows	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions	Wire Type	Color	Connector Type	Pitch [x]	Pitch [x]

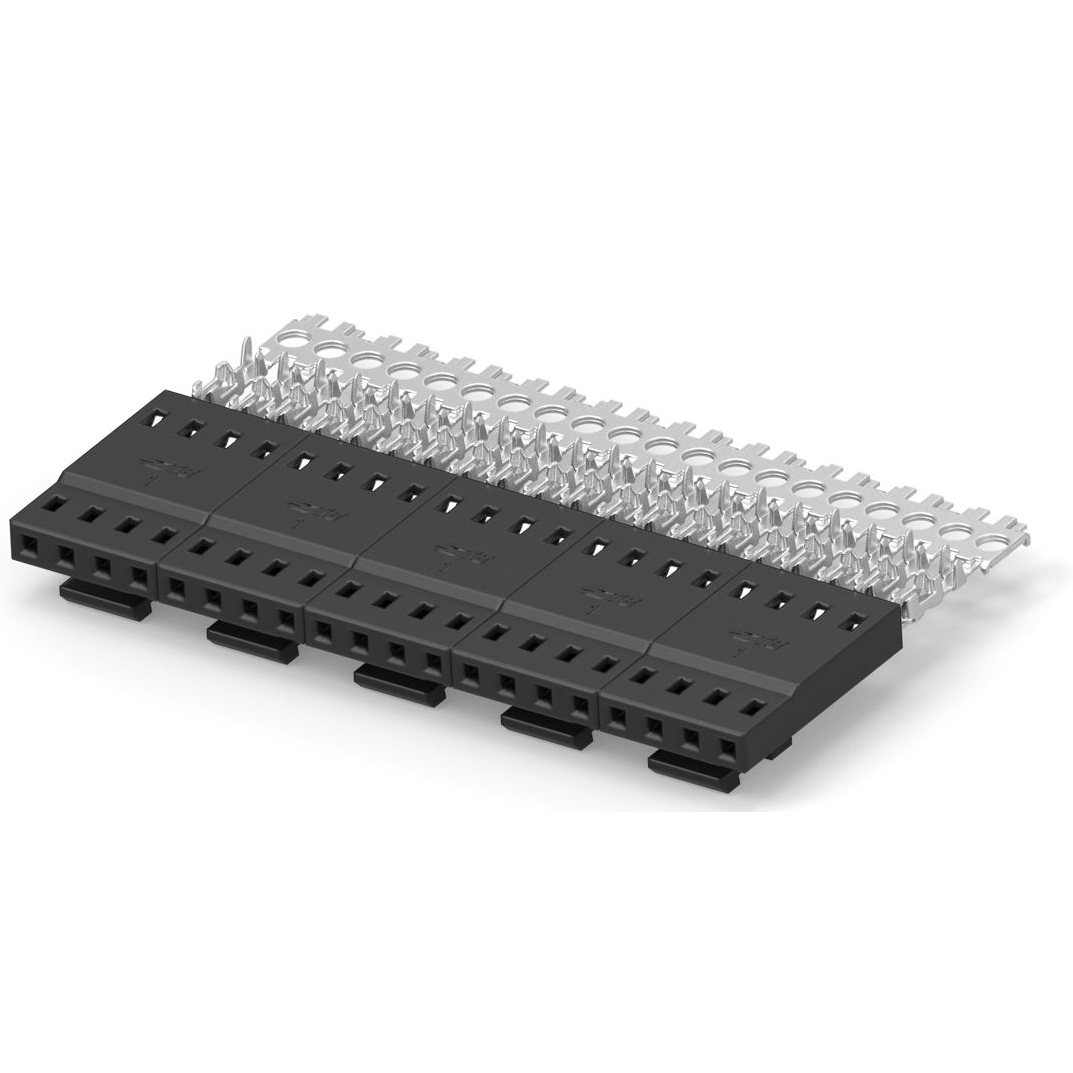

TE Connectivity Raychem Cable Protection 2317211-4	IDC	50 µin	1.27 µm	Female Socket	Tin	Latch Lock	1	Free Hanging (In-Line)	26 AWG	30 AWG	4	Discrete or Ribbon Cable	Black	Receptacle	0.079 in	2 mm

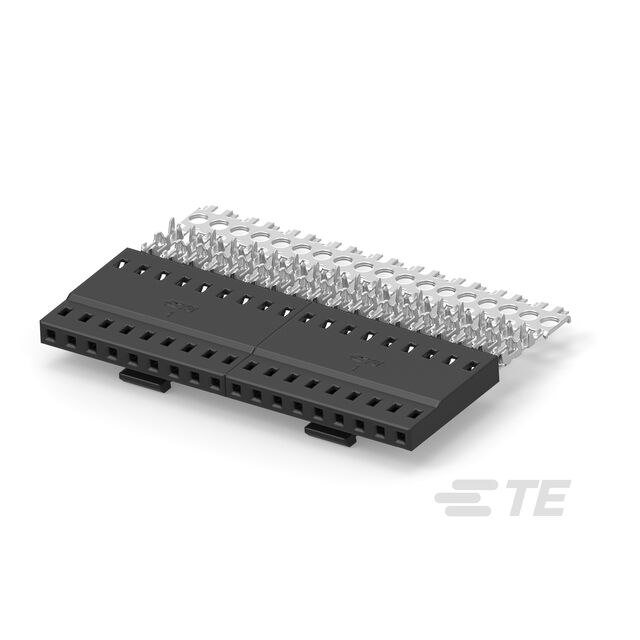

TE Connectivity Raychem Cable Protection 2317211-9	IDC	50 µin	1.27 µm	Female Socket	Tin	Latch Lock	1	Free Hanging (In-Line)	26 AWG	30 AWG	9	Discrete or Ribbon Cable	Black	Receptacle	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 2317211-7	IDC	50 µin	1.27 µm	Female Socket	Tin	Latch Lock	1	Free Hanging (In-Line)	26 AWG	30 AWG	7	Discrete or Ribbon Cable	Black	Receptacle	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 1-2317211-0	IDC	50 µin	1.27 µm	Female Socket	Tin	Latch Lock	1	Free Hanging (In-Line)	26 AWG	30 AWG	10	Discrete or Ribbon Cable	Black	Receptacle	0.079 in	2 mm
TE Connectivity Raychem Cable Protection 2317211-8	IDC	50 µin	1.27 µm	Female Socket	Tin	Latch Lock	1	Free Hanging (In-Line)	26 AWG	30 AWG	8	Discrete or Ribbon Cable	Black	Receptacle	0.079 in	2 mm

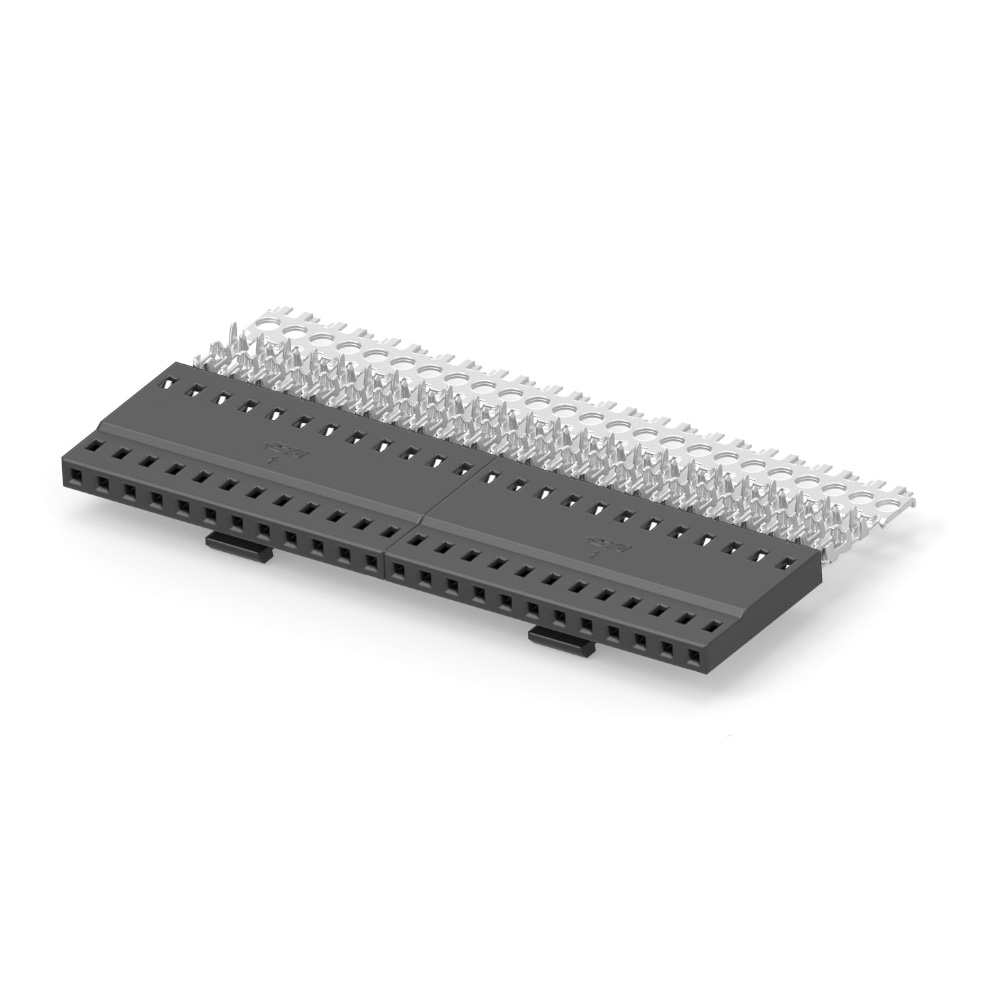

TE Connectivity Raychem Cable Protection 1-2317211-2	IDC	50 µin	1.27 µm	Female Socket	Tin	Latch Lock	1	Free Hanging (In-Line)	26 AWG	30 AWG	12	Discrete or Ribbon Cable	Black	Receptacle	0.079 in	2 mm

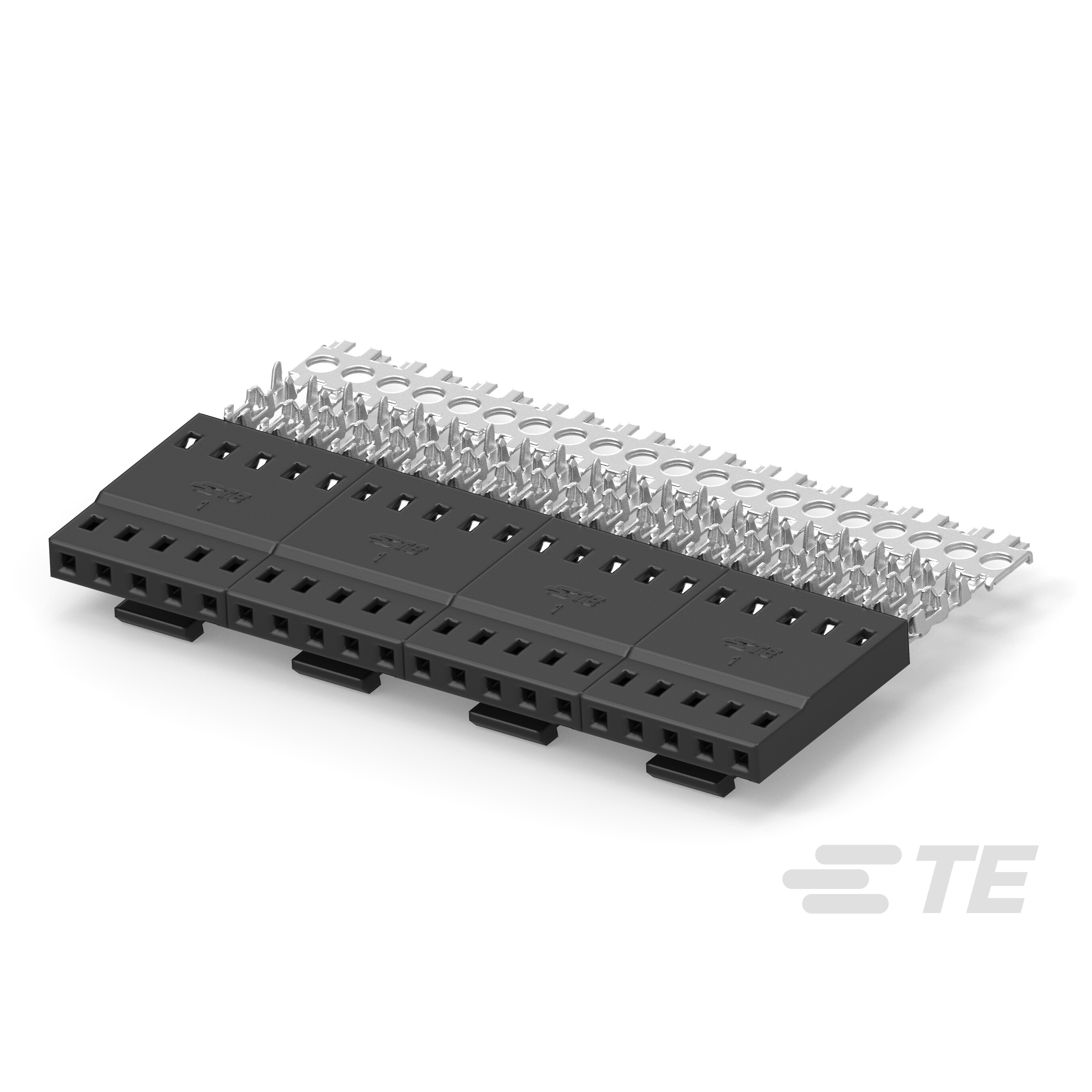

TE Connectivity Raychem Cable Protection 2317211-5	IDC	50 µin	1.27 µm	Female Socket	Tin	Latch Lock	1	Free Hanging (In-Line)	26 AWG	30 AWG		Discrete or Ribbon Cable	Black	Receptacle	0.079 in	2 mm
