5682 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

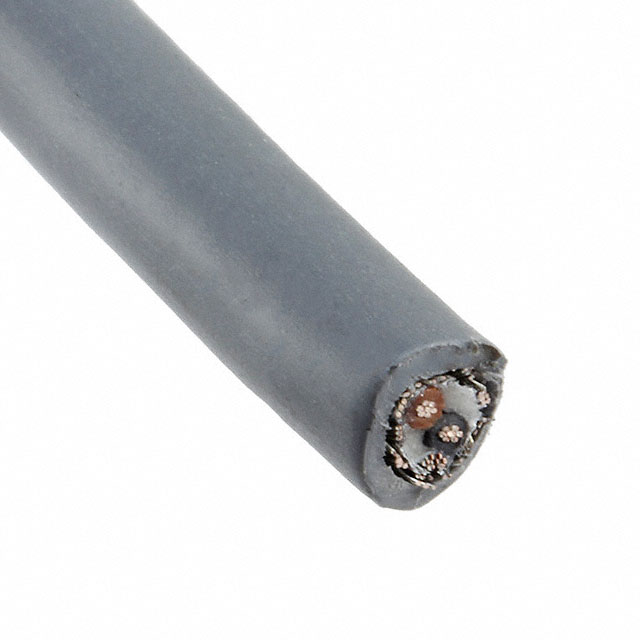

CBL 2COND 26AWG SHLD 1000=1000'
| Part | Shield Material | Shield Coverage | Conductor Strand [x] | Conductor Strand [x] | Ratings | Usage | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Shield Type | Conductor Material | Conductor Insulation | Cable Type | Features | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 34 AWG | 7 | ISO 10993 UL Style 2464 | Communication Control | Slate | -35 °C | 105 ░C | 300 VDC | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 0.174 in | 4.42 mm | 0.813 mm | 0.032 in | 26 AWG | ||||
ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 34 AWG | 7 | ISO 10993 UL Style 2464 | Communication Control | Slate | -35 °C | 105 ░C | 300 VDC | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 0.174 in | 4.42 mm | 0.813 mm | 0.032 in | 26 AWG | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 34 AWG | 7 | ISO 10993 UL Style 2464 | Communication Control | Slate | -35 °C | 105 ░C | 300 VDC | Braid Foil | Copper Tinned | Poly-Vinyl Chloride (PVC) | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 0.174 in | 4.42 mm | 0.813 mm | 0.032 in | 26 AWG | 304.8 m | 1000 ft |
