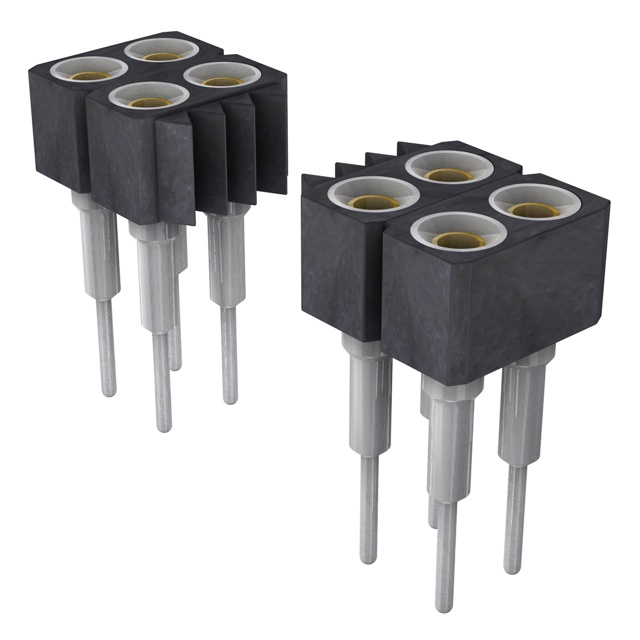

416-83 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 52POS 0.1 GOLD PCB

...

Part	Insulation Material	Contact Shape	Contact Material	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Number of Positions Loaded	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions	Material Flammability Rating	Contact Type	Connector Type	Termination	Insulation Color	Current Rating (Amps)	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Insulation Height [custom]	Insulation Height [custom]
Preci-Dip 416-83-252-41-007101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin	10 mm	0.394 "	0.126 "	3.2 mm	29.5 µin	0.75 µm	52	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2
Preci-Dip 416-83-254-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin			0.126 "	3.2 mm	29.5 µin	0.75 µm	54	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2	0.591 in	15 mm

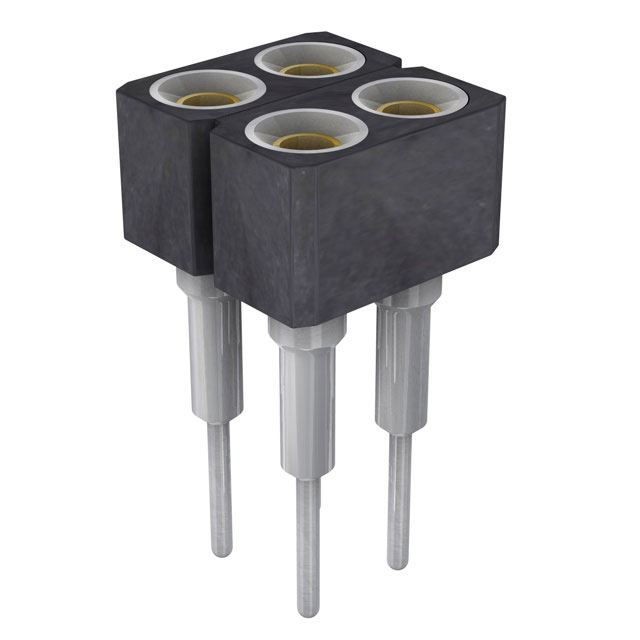

Preci-Dip 416-83-204-41-013101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin			0.126 "	3.2 mm	29.5 µin	0.75 µm	4	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2
Preci-Dip 416-83-232-41-004101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin	22 mm	0.866 in	0.126 "	3.2 mm	29.5 µin	0.75 µm		UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2
Preci-Dip 416-83-266-41-018101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin	7 mm	0.276 in	0.126 "	3.2 mm	29.5 µin	0.75 µm	66	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2
Preci-Dip 416-83-210-41-004101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin	22 mm	0.866 in	0.126 "	3.2 mm	29.5 µin	0.75 µm	10	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2
Preci-Dip 416-83-228-41-018101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin	7 mm	0.276 in	0.126 "	3.2 mm	29.5 µin	0.75 µm	28	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2
Preci-Dip 416-83-248-41-007101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin	10 mm	0.394 "	0.126 "	3.2 mm	29.5 µin	0.75 µm	48	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2
Preci-Dip 416-83-270-41-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin			0.126 "	3.2 mm	29.5 µin	0.75 µm	70	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2	0.591 in	15 mm
Preci-Dip 416-83-218-41-018101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Gold	0.1 "	2.54 mm	0.1 in	2.54 mm	Through Hole	All	Tin	7 mm	0.276 in	0.126 "	3.2 mm	29.5 µin	0.75 µm	18	UL94 V-0	Female Socket	Socket	Solder	Black	3 A	Push-Pull	-55 C	125 °C	2
