TSCDJJN Series

Catalog

SENSOR 5PSID 0.09" .05V 8DIP

Part	Maximum Pressure	Maximum Pressure	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Port Style	Package / Case	Package / Case	Features	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Output [Max]	Output	Operating Pressure	Operating Pressure	Pressure Type	Termination Style	Applications	Port Size	Port Size	Port Size	Operating Pressure
Honeywell Sensing and Productivity Solutions TSCDJJN005PDUCV	30 PSI	206.84 kPa	Through Hole	12 V	1.5 V	8-DIP	Barbless	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm	Temperature Compensated	0.15 %	85 °C	-40 C	Wheatstone Bridge	50 mV	5V	5 PSI	34.47 kPa	Differential	PC Pin	Board Mount	Dual Male Tube	0.09 in	2.34 mm
Honeywell Sensing and Productivity Solutions TSCDJJN100PDUCV	245 PSI	1689.22 kPa	Through Hole	12 V	1.5 V	8-DIP	Barbless	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm	Temperature Compensated	0.15 %	85 °C	-40 C	Wheatstone Bridge	60 mV		100 PSI	689.48 kPa	Differential	PC Pin	Board Mount	Dual Male Tube	0.09 in	2.34 mm

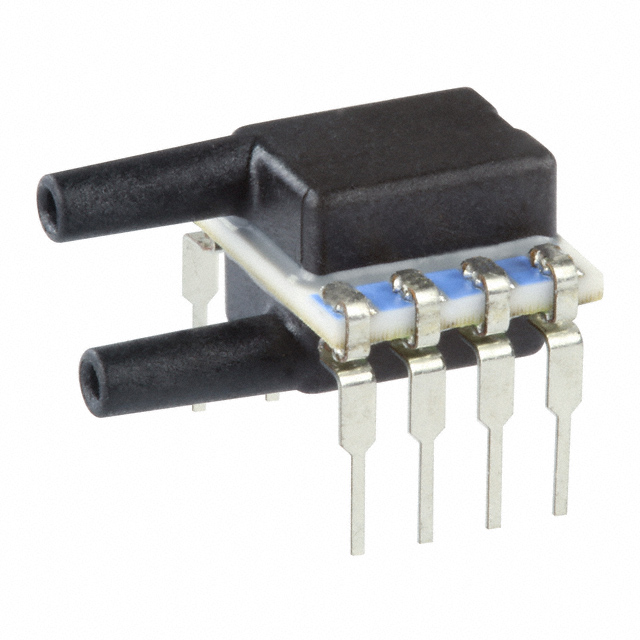

Honeywell Sensing and Productivity Solutions TSCDJJN001PDUCV	12.5 PSI	86.18 kPa	Through Hole	12 V	1.5 V	8-DIP	Barbless	8-DIP (0.524" 13.30mm) Dual Ports Same Side	0.524 in 13.3 mm	Temperature Compensated	0.2 %	85 °C	-40 C	Wheatstone Bridge	15 mV				Differential	PC Pin	Board Mount	Dual Male Tube	0.09 in	2.34 mm	±1PSI (±6.89kPa)
