SRN91-1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

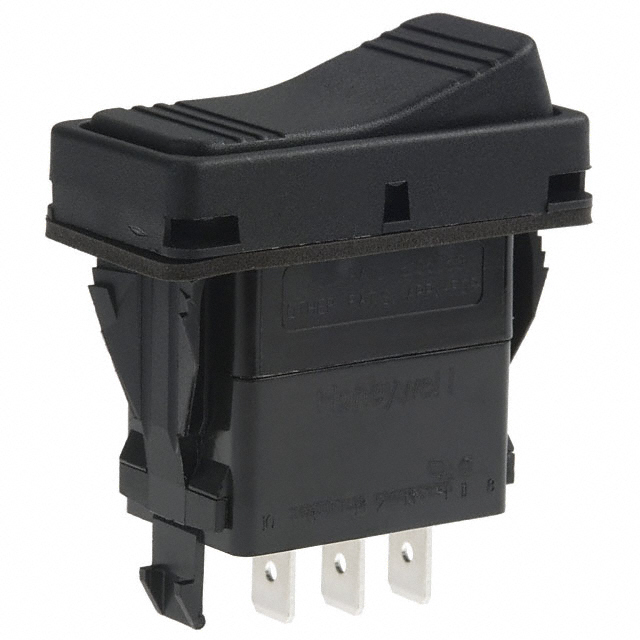

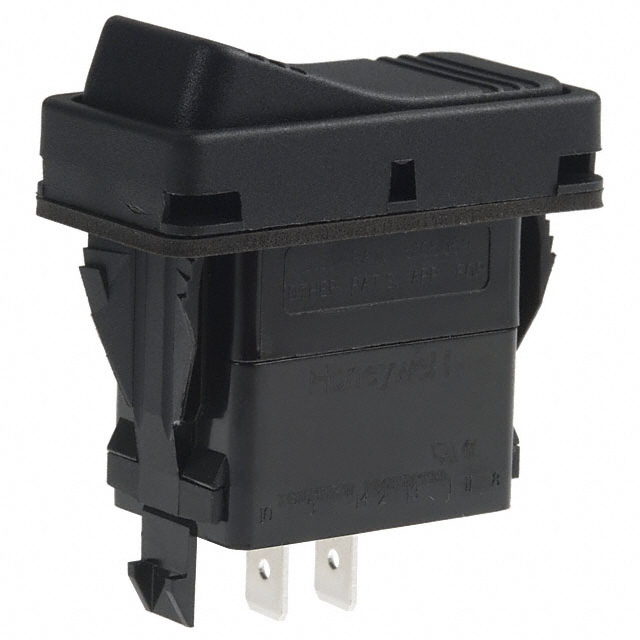

SWITCH ROCKER SPDT 15A 125V
| Part | Color - Actuator/Cap | Current Rating (Amps) | Voltage Rating - AC | Termination Style | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Mechanical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Electrical Life | Mounting Type | Actuator Marking | Switch Function | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Black | 15 A | 125 V | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight Waterproof | 85 °C | -40 °C | SPDT | 150000 Cycles | 20.82 mm | 36.83 mm | 50000 Cycles | Panel Mount Snap-In | No Marking | On-Mom | Concave (Curved) |
 Honeywell Sensing and Productivity Solutions | Black | 15 A | 125 V | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight Waterproof | 85 °C | -40 °C | SPST-NC | 150000 Cycles | 20.82 mm | 36.83 mm | 50000 Cycles | Panel Mount Snap-In | No Marking | On-Mom | Concave (Curved) |
Honeywell Sensing and Productivity Solutions | Black | 15 A | 125 V | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight Waterproof | 85 °C | -40 °C | SPDT | 150000 Cycles | 20.82 mm | 36.83 mm | 100000 Cycles | Panel Mount Snap-In | No Marking | On-On | Concave (Curved) |
