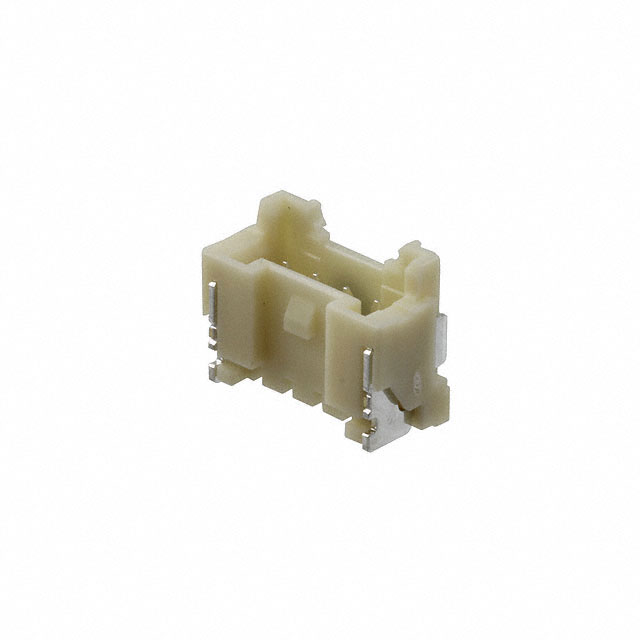

SM04B-PA Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 4POS 2MM
| Part | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Contact Type | Style | Connector Type | Number of Positions Loaded | Termination | Material Flammability Rating | Voltage Rating | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Insulation Color | Number of Rows | Fastening Type | Features | Contact Material | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Shape | Mounting Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 3 A | 5.69 mm | 0.224 in | Male Pin | Board to Cable/Wire | Header | All | Solder | UL94 V-0 | 250 V | Shrouded - 4 Wall | 85 °C | -25 °C | Nylon Polyamide (PA) | Natural | 1 | Locking Ramp | Pick and Place Solder Retention | Copper Alloy | 0.079 " | 2 mm | 4 | Square | Right Angle Surface Mount | Tin |
