F2211/16 Series

Catalog

HEATSHRINK 0.062" X 70' BLACK

Part	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Features	Material	Shelf Life Start	Type	Length [x]	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shelf Life	Color	Length	Length [x]	Length	Length
ALPHA WIRE F2211/16 BK017	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Flame Resistant Fluid Resistant UV Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible	70 ft	21.3 m	0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Black
ALPHA WIRE F2211/16 GR017	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Flame Resistant Fluid Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible	70 ft	21.3 m	0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Green
ALPHA WIRE F2211/16 CL161	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Fluid Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible			0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Clear
ALPHA WIRE F2211/16 GR001	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Flame Resistant Fluid Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible		304.8 m	0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Green	1000 ft
ALPHA WIRE F2211/16 WH001	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Flame Resistant Fluid Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible		304.8 m	0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	White	1000 ft

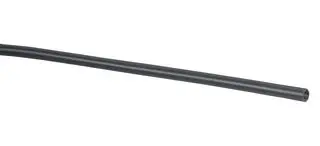

ALPHA WIRE F2211/16 CL103	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Fluid Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible	4 ft		0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Clear		1.22 m
ALPHA WIRE F2211/16 RD060	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Flame Resistant Fluid Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible		152.4 mm	0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Red			6 "	0.5 '
ALPHA WIRE F2211/16 BL060	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Flame Resistant Fluid Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible		152.4 mm	0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Blue			6 "	0.5 '
ALPHA WIRE F2211/16 CL017	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Fluid Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible	70 ft	21.3 m	0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Clear
ALPHA WIRE F2211/16 BK001	2 to 1	0.43 mm	0.017 in	90 °C	135 °C	-55 °C	Flame Resistant Fluid Resistant UV Resistant	Polyolefin (PO) Irradiated	Date of Manufacture	Tubing Flexible		304.8 m	0.062 "	1.57 mm	0.79 mm	0.031 in	144 Months	Black	1000 ft
