ATS-02E Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

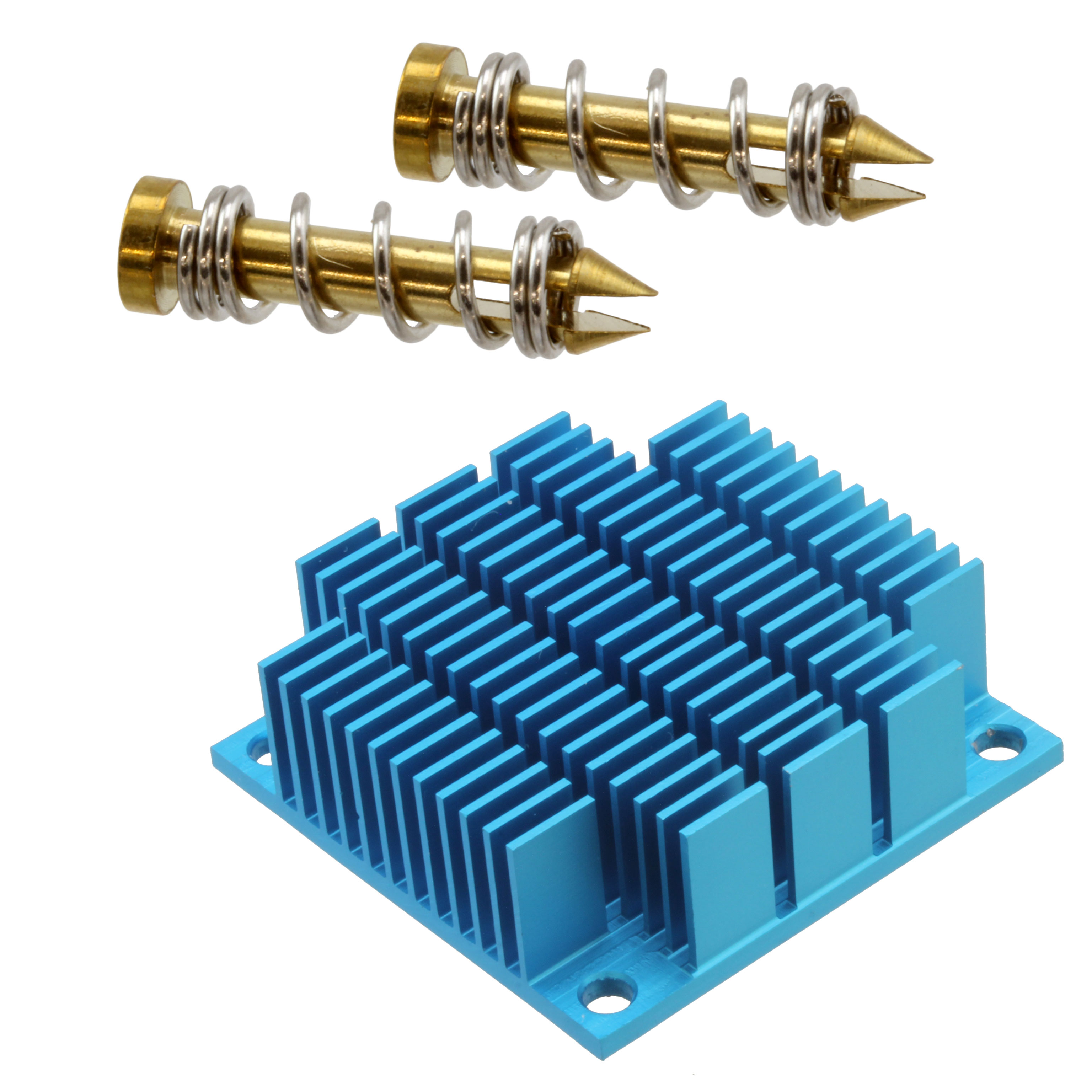

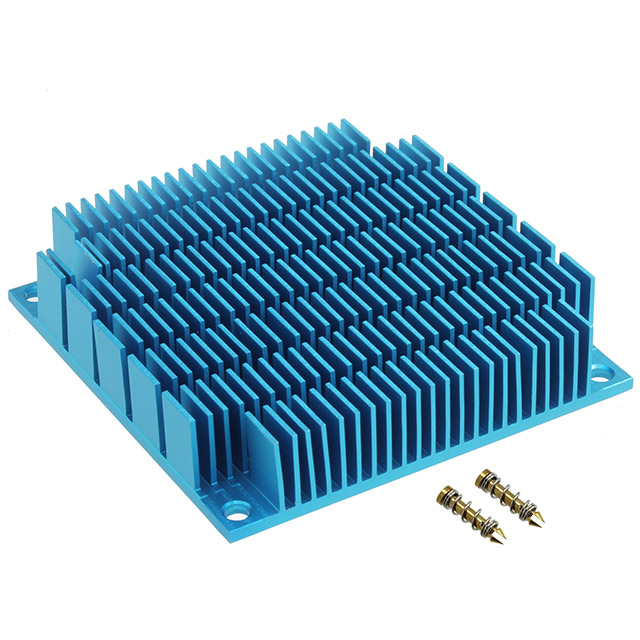

HEAT SINKS PUSHPIN HEAT SINK ASSEMBLY, COARSE-PITCH/STRAIGHT, HOLE: LEFT-TAB, BLUE, NO TIM

...

Part	Fin Height [z]	Fin Height [z]	Material Finish	Attachment Method	Material	Type	Package Cooled	Width	Width	Shape	Length [x]	Length [x]	Thermal Resistance @ Forced Air Flow	Fin Height	Fin Height	Length	Length	Width [x]	Width [x]	Width [y]	Width [y]
Advanced Thermal Solutions Inc. ATS-02E-161-C1-R0	20 mm	0.79 in	Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	1.772 in	45 mm	Fins Square	1.772 in	45 mm	4.72 °C/W
Advanced Thermal Solutions Inc. ATS-02E-70-C2-R0			Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	1.772 in	45 mm	Fins Square	1.772 in	45 mm	8.7 °C/W	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-02E-171-C2-R0	20 mm	0.79 in	Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA			Fins Square			7.33 °C/W			0.03 m	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-02E-210-C2-R0			Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA			Fins Square	2.756 in	70 mm	5.18 °C/W	12 mm	0.472 in			70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-02E-184-C1-R0			Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA			Fins Square			4.11 °C/W	25 mm	0.984 in					1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02E-13-C3-R0	15 mm	0.59 in	Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA			Fins Square	1.969 in	50 mm	13.78 °C/W					50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-02E-191-C2-R0	30 mm	1.181 in	Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	1.772 in	45 mm	Fins Square	1.772 in	45 mm	2.9 °C/W
Advanced Thermal Solutions Inc. ATS-02E-28-C1-R0	15 mm	0.59 in	Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA			Fins Square	2.756 in	70 mm	10.57 °C/W					70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-02E-98-C1-R0	15 mm	0.59 in	Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA	1.772 in	45 mm	Fins Square	1.772 in	45 mm	15.29 °C/W
Advanced Thermal Solutions Inc. ATS-02E-23-C1-R0	15 mm	0.59 in	Blue Anodized	Push Pin	Aluminum	Top Mount	ASIC BGA CPU LGA			Fins Square	2.362 in	60 mm	11.99 °C/W							2.362 in	60 mm
