737-024 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 24POS 0.156

Part	Termination Rows	Material - Insulation	Read Out	Termination	Contact Material	Number of Positions/Bay/Row	Color	Card Type	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Gender	Number of Positions	Contact Finish	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 737-024-545-101	1	Polyester Thermoplastic	Single	Press-Fit Wire Wrap	Copper Alloy	24	Black	Non Specified - Single Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	1	-40 C	105 ░C	Cantilever	Female	24	Gold
EDAC Inc. 737-024-560-206		Polyester Thermoplastic	Dual	Press-Fit	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever Make Before Break	Female	24	Gold	2	2
EDAC Inc. 737-024-525-206		Polyester Thermoplastic	Dual	Press-Fit	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever	Female	24	Gold	2	2

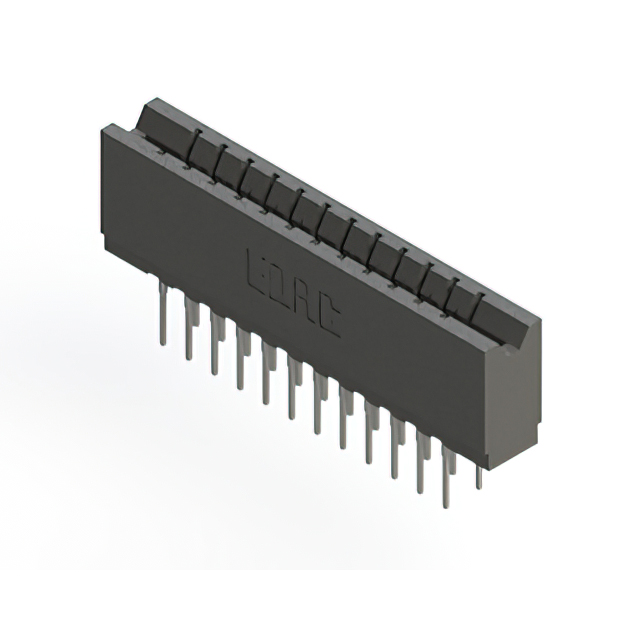

EDAC Inc. 737-024-522-206		Polyester Thermoplastic	Dual	Press-Fit	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever	Female	24	Gold	2	2

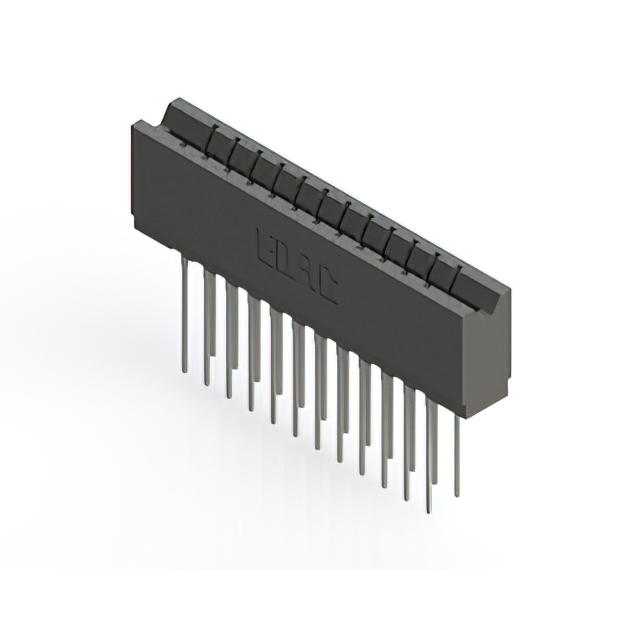

EDAC Inc. 737-024-541-206		Polyester Thermoplastic	Dual	Press-Fit Wire Wrap	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever	Female	24	Gold	2	2
EDAC Inc. 737-024-540-206		Polyester Thermoplastic	Dual	Press-Fit Wire Wrap	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever	Female	24	Gold	2	2

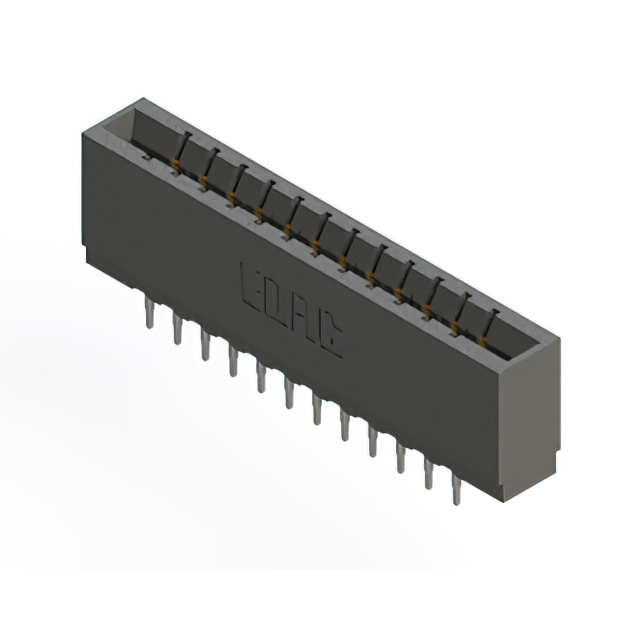

EDAC Inc. 737-024-560-201		Polyester Thermoplastic	Dual	Press-Fit	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever Make Before Break	Female	24	Gold	2	2
EDAC Inc. 737-024-545-206		Polyester Thermoplastic	Dual	Press-Fit Wire Wrap	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever	Female	24	Gold	2	2
EDAC Inc. 737-024-541-201		Polyester Thermoplastic	Dual	Press-Fit Wire Wrap	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever	Female	24	Gold	2	2

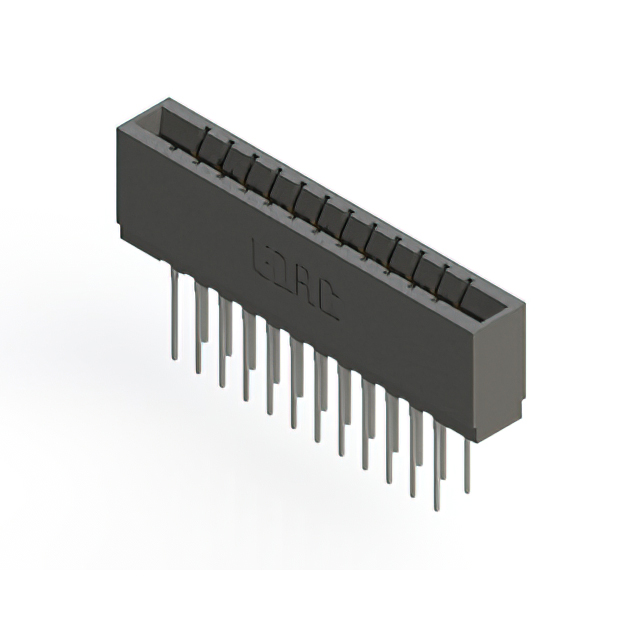

EDAC Inc. 737-024-545-201		Polyester Thermoplastic	Dual	Press-Fit Wire Wrap	Copper Alloy	12	Black	Non Specified - Dual Edge	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám		-40 C	105 ░C	Cantilever	Female	24	Gold	2	2
