800A Series
Manufacturer: E-Switch
Beta
⌘K
PUSHBUTTON SWITCHES PUSHBUTTON, SPDT , ON-(ON), THROUGH HOLE, RIGHT ANGLE, VERTICAL, BLACK, IP67
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Mechanical Life | Voltage Rating - DC | Current Rating (Amps) | Color - Actuator/Cap | Voltage Rating - AC | Type | Actuator Type | Circuit | Switch Function | Mounting Type | Termination Style | Ingress Protection | Actuator Marking | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

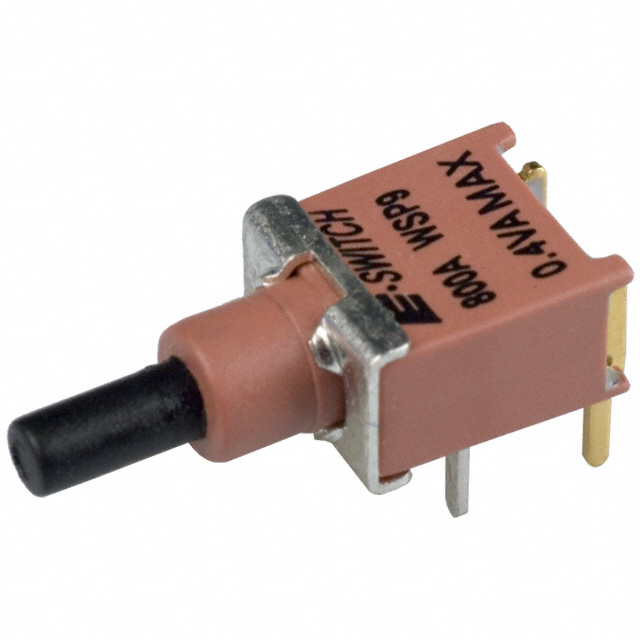

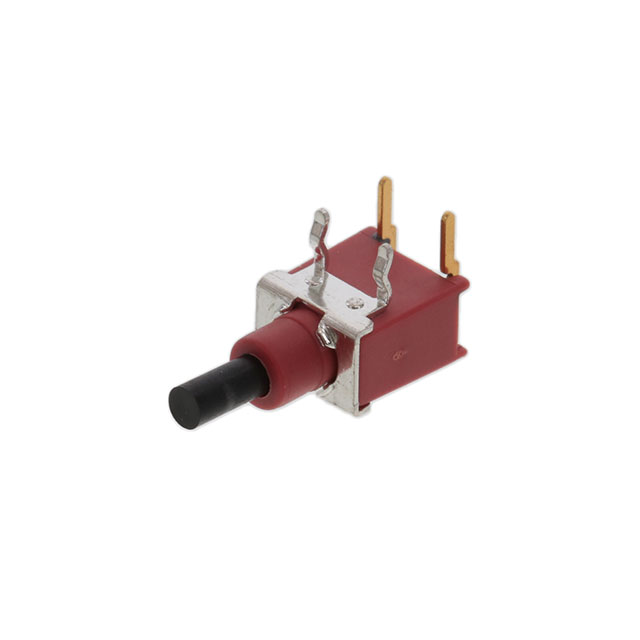

 E-Switch | 85 °C | -40 C -30 ░C | 50000 Cycles | 50000 Cycles | 20 V | 0.4 VA | Black | 20 V | Standard | Button Round | SPDT | On-Mom | Right Angle Through Hole Vertical | PC Pin | |||
E-Switch | 85 °C | -40 C | 20 V | 0.4 VA | Black | 20 V | Standard | Button Round | SPDT | On-Mom | Right Angle Through Hole Vertical | PC Pin | |||||
E-Switch | 85 °C | -40 C -30 ░C | 50000 Cycles | 1 A | Black | 120 V | Standard | Plunger Round | SPST-NO | Off-Mom | Right Angle Through Hole | PC Pin | IP67 - Dust Tight Waterproof | No Marking | Epoxy Sealed Terminals |
