XC6192 Series

Catalog

IC PWR SWITCH P-CH 1:1 8USP-B06

Part	Fault Protection	Switch Type	Features	Package / Case	Rds On (Typ)	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output	Voltage - Load [Min]	Voltage - Load [Max]	Number of Outputs	Mounting Type	Output Type	Output Configuration	Supplier Device Package	Interface	Input Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Torex Semiconductor Ltd XC6192B503ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C

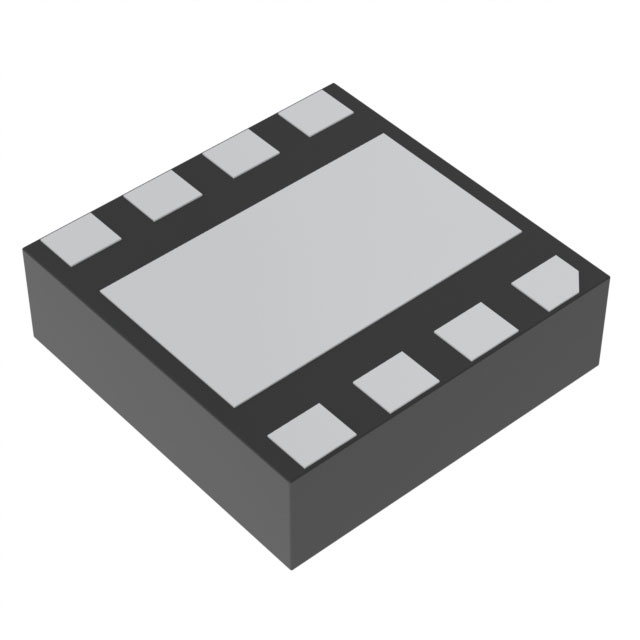

Torex Semiconductor Ltd XC6192A115ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C
Torex Semiconductor Ltd XC6192B105ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C
Torex Semiconductor Ltd XC6192AA10ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C
Torex Semiconductor Ltd XC6192B315ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C

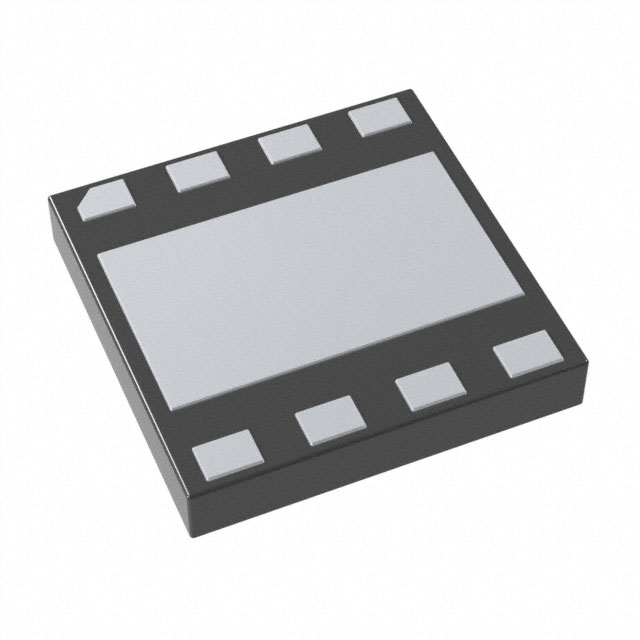

Torex Semiconductor Ltd XC6192AA05ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	USP-8B06	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C
Torex Semiconductor Ltd XC6192A505ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C
Torex Semiconductor Ltd XC6192BA10ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C
Torex Semiconductor Ltd XC6192A103ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C
Torex Semiconductor Ltd XC6192A503ER-G	Short Circuit	General Purpose	Power Good Shutdown	8-XFDFN Exposed Pad	340 mOhm	Not Required	1:1	2.5 V	6 V	1	Surface Mount	P-Channel	High Side	8-USP-B06 (2x2)	On/Off	Non-Inverting	400 mA	85 C	-40 ¯C
