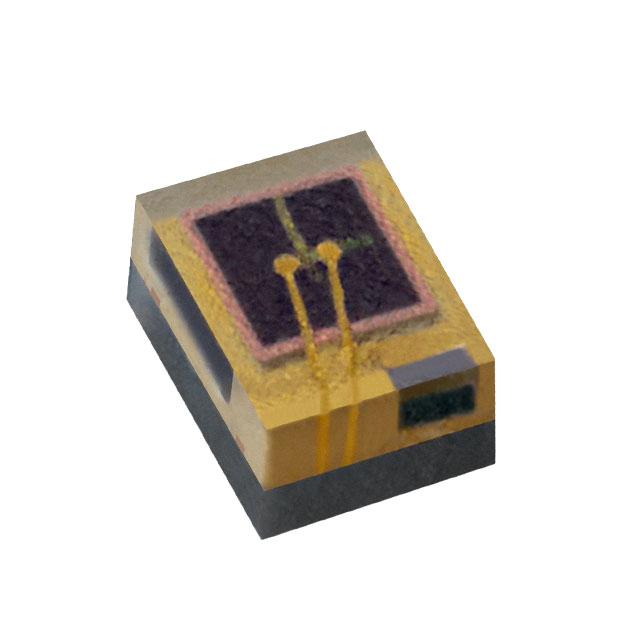

L1IZ Series
Manufacturer: Lumileds
Beta
⌘K
LMIL1IZ-0850000000000
| Part | Current - DC Forward (If) (Max) [Max] | Mounting Type | Viewing Angle | Type | Voltage - Forward (Vf) (Typ) | Package / Case | Radiant Intensity (Ie) Min @ If [Min] | Orientation | Wavelength | Operating Temperature [Max] | Operating Temperature | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumileds | 1 A | Surface Mount | 150 ° | Infrared (IR) | 3.2 V | 2-SMD No Lead | 250 mW/sr | Top View | 850 nm | 125 °C | TC | -30 ░C |
