3RP2005 Series

Manufacturer: Siemens

Catalog

RELAY TIME DELAY 100SEC 3A 250V

Part	Contact Rating @ Voltage	Circuit	Termination Style	Mounting Type	Delay Time [Max]	Delay Time [Min]	Timing Adjustment Method	Relay Type	Function	Timing Initiate Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Supply	Voltage - Supply
Siemens 3RP20051AQ30	3 A 250 VAC	SPDT (1 Form C)	Screw Terminal	Chassis Mount DIN Rail	100 Sec	0.05 Sec	Screwdriver Slot	Mechanical Relay	Programmable (Multi-Function)	Input Voltage	127 VAC/DC	100 VAC	24 VAC/DC	24 VDC
Siemens 3RP20052AQ30	3 A 250 VAC	SPDT (1 Form C)	Spring Terminal	Chassis Mount DIN Rail	100 Sec	0.05 Sec	Screwdriver Slot	Mechanical Relay	Programmable (Multi-Function)	Input Voltage	127 VAC/DC	100 VAC	24 VAC/DC	24 VDC

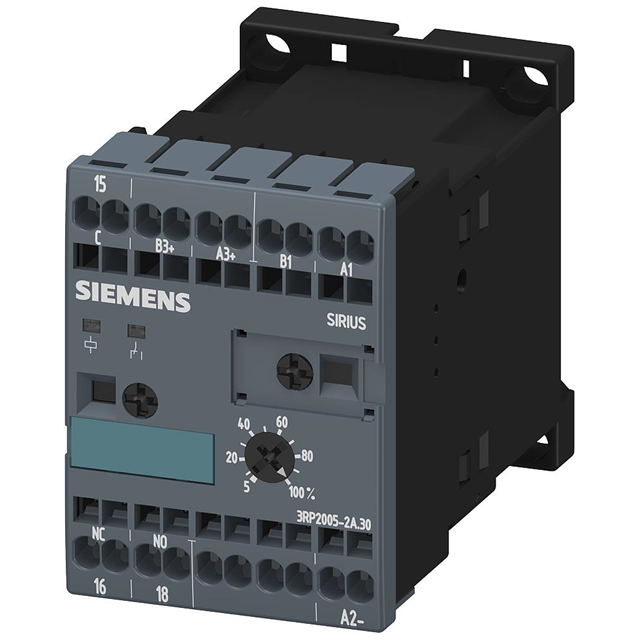

Siemens 3RP20052AP30	3 A 250 VAC	SPDT (1 Form C)	Spring Terminal	Chassis Mount DIN Rail	100 Sec	0.05 Sec	Screwdriver Slot	Mechanical Relay	Programmable (Multi-Function)	Input Voltage	240 VAC	200 VAC	24 VAC/DC
Siemens 3RP20051BW30	3 A 250 VAC	DPDT (2 Form C)	Screw Terminal	Chassis Mount DIN Rail	100 Sec	0.05 Sec	Screwdriver Slot	Mechanical Relay	Programmable (Multi-Function)	Input Voltage	240 VAC	24 VAC

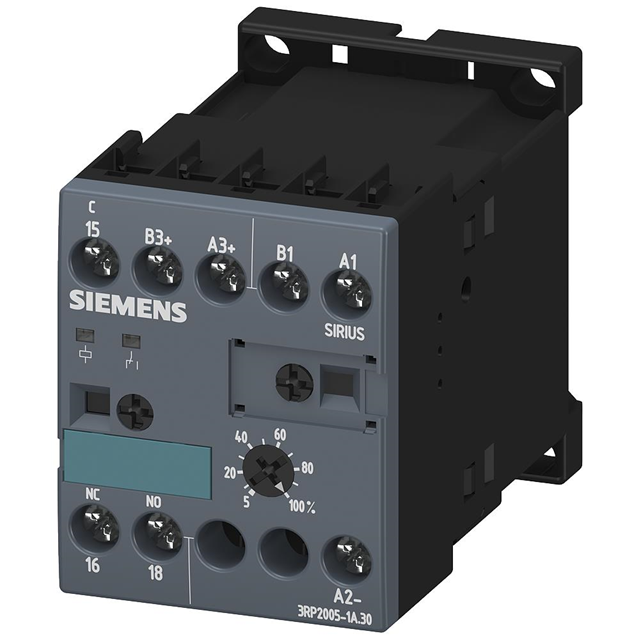

Siemens 3RP20051AP30	3 A 250 VAC	SPDT (1 Form C)	Screw Terminal	Chassis Mount DIN Rail	100 Sec	0.05 Sec	Screwdriver Slot	Mechanical Relay	Programmable (Multi-Function)	Input Voltage	240 VAC	200 VAC	24 VAC/DC
Siemens 3RP20052BW30	3 A 250 VAC	DPDT (2 Form C)	Spring Terminal	Chassis Mount DIN Rail	100 Sec	0.05 Sec	Screwdriver Slot	Mechanical Relay	Programmable (Multi-Function)	Input Voltage	240 VAC	24 VAC
