CWR-142 Series

Catalog

CONN IDC 20POS 28-30AWG VERT

Part	Number of Positions Loaded	Board-Side Pitch	Contact Finish Thickness	Contact Finish Thickness	Features	Cable Pitch	Cable Pitch	Contact Finish	Row Spacing	Row Spacing	Mounting Type	Connector Type	Number of Positions	Color	Cable Termination	Wire Gauge	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions [custom]

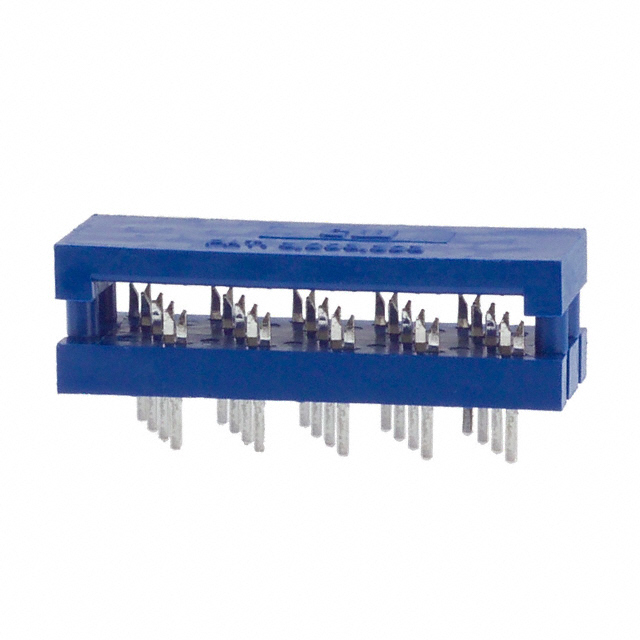

CW Industries CWR-142-20-0003	All	5.08 mm	2.54 µm	100 µin	Feed Through	1.27 mm	0.05 in	Tin-Lead	2.54 mm	0.1 "	Through Hole	Ribbon Cable	20	Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG

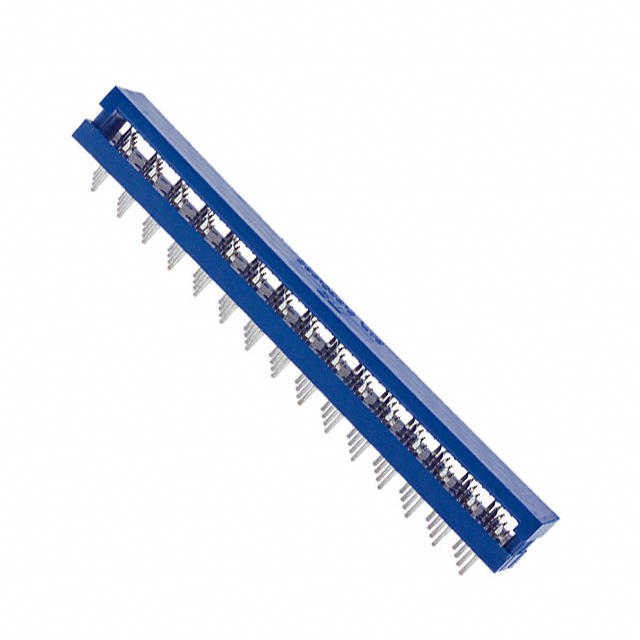

CW Industries CWR-142-60-0003	All	5.08 mm	2.54 µm	100 µin	Feed Through	1.27 mm	0.05 in	Tin-Lead	2.54 mm	0.1 "	Through Hole	Ribbon Cable	60	Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG

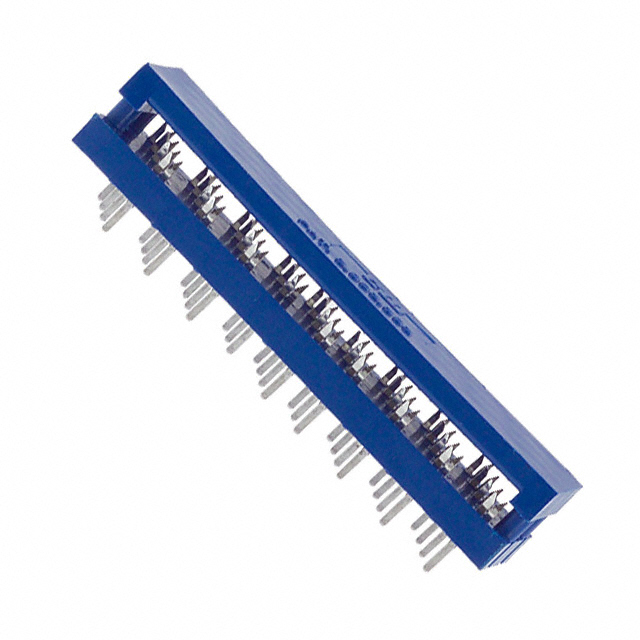

CW Industries CWR-142-34-0003	All	5.08 mm	2.54 µm	100 µin	Feed Through	1.27 mm	0.05 in	Tin-Lead	2.54 mm	0.1 "	Through Hole	Ribbon Cable		Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG	34

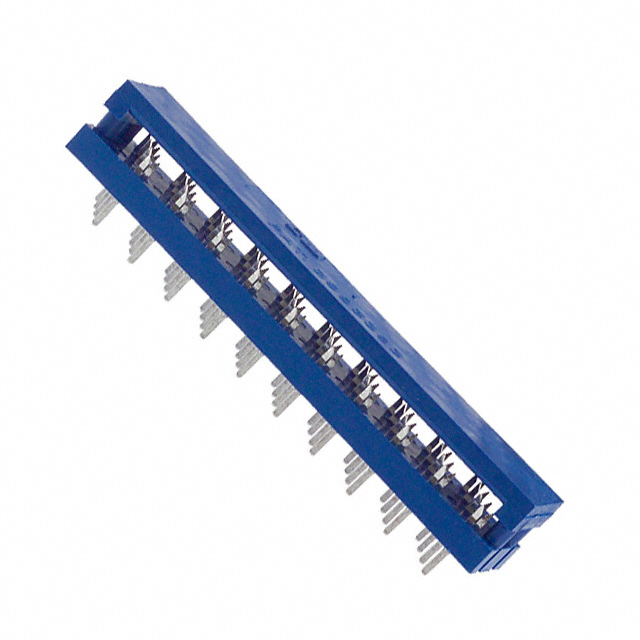

CW Industries CWR-142-40-0003	All	5.08 mm	2.54 µm	100 µin	Feed Through	1.27 mm	0.05 in	Tin-Lead	2.54 mm	0.1 "	Through Hole	Ribbon Cable	40	Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG
CW Industries CWR-142-10-0000	All	5.08 mm	0.25 Ám	10 Áin	Feed Through	1.27 mm	0.05 in	Gold	2.54 mm	0.1 "	Through Hole	Ribbon Cable	10	Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG
CW Industries CWR-142-34-0203	All	5.08 mm			Feed Through	1.27 mm	0.05 in	Tin	2.54 mm	0.1 "	Through Hole	Ribbon Cable		Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG	34

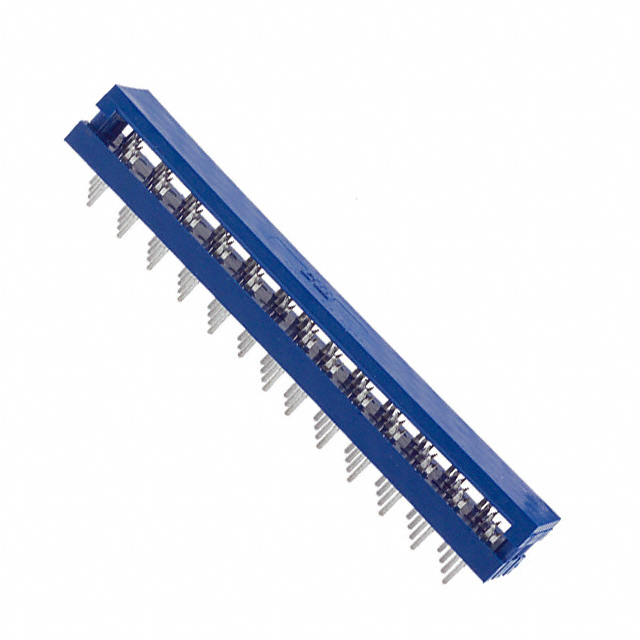

CW Industries CWR-142-50-0003	All	5.08 mm	2.54 µm	100 µin	Feed Through	1.27 mm	0.05 in	Tin-Lead	2.54 mm	0.1 "	Through Hole	Ribbon Cable	50	Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG

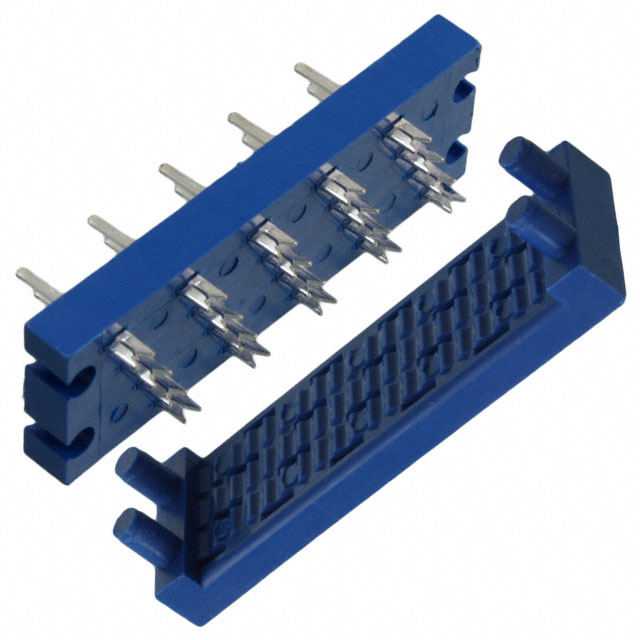

CW Industries CWR-142-20-0203	All	5.08 mm			Feed Through	1.27 mm	0.05 in	Tin	2.54 mm	0.1 "	Through Hole	Ribbon Cable	20	Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG

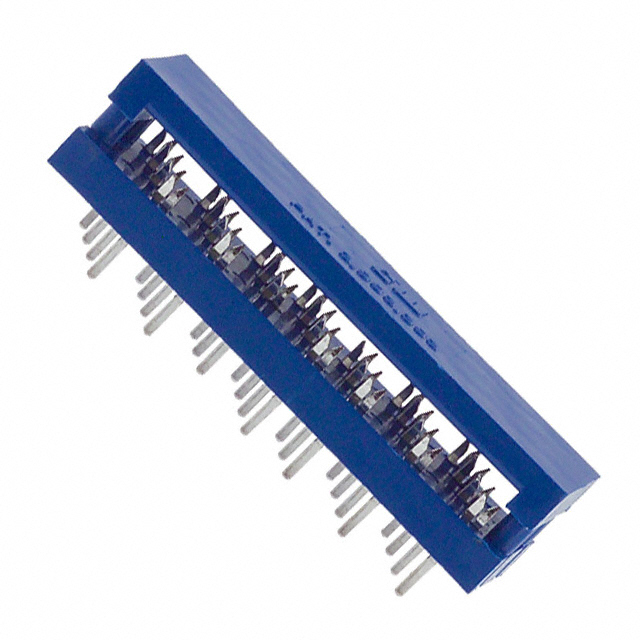

CW Industries CWR-142-26-0203	All	5.08 mm			Feed Through	1.27 mm	0.05 in	Tin	2.54 mm	0.1 "	Through Hole	Ribbon Cable	26	Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG

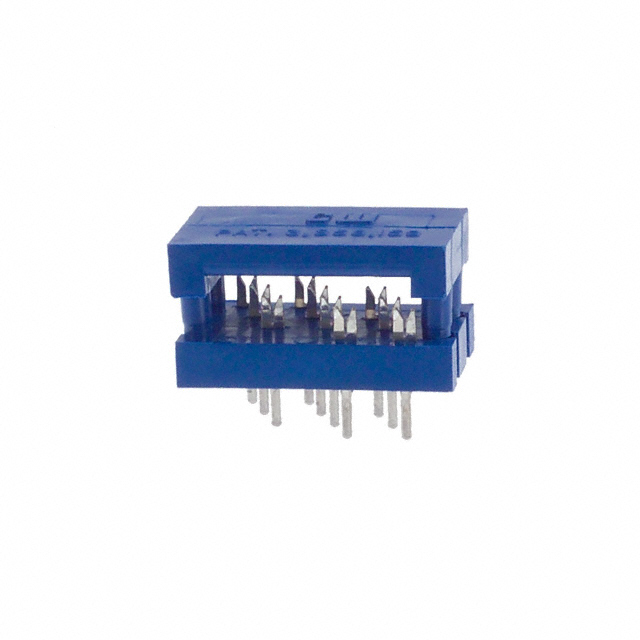

CW Industries CWR-142-10-0003	All	5.08 mm	2.54 µm	100 µin	Feed Through	1.27 mm	0.05 in	Tin-Lead	2.54 mm	0.1 "	Through Hole	Ribbon Cable	10	Blue	IDC	Stranded or Solid	27.5 AWG	30 AWG
