M2013SS Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Features	Bushing Thread	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Illumination	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Switch Function	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Length [x]	Bushing Thread
NKK Switches M2013SS1W30	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	1/4-40	Standard Round	85 °C	-30 ░C	SPDT	Non-Illuminated	30 V	3 A 6 A	PC Pin	125 V	On-Off-On	6.5 mm	Right Angle Through Hole
NKK Switches M2013SS2G23	Brass Chrome Plated	50000 Cycles	Epoxy Sealed Terminals	Unthreaded	Standard Round	85 °C	-30 ░C	SPDT	Non-Illuminated	28 V	0.4 VA	PC Pin	28 V	On-Off-On	6.5 mm	Through Hole
NKK Switches M2013SS1W01-BB	Brass Chrome Plated	25000 Steps	White Cap	1/4-40	Standard Round with Cap	85 °C	-30 ░C	SPDT	Non-Illuminated	30 V	3 A 6 A	Solder Lug	125 V	On-Off-On	6.5 mm	Panel Mount	13.5 mm
NKK Switches M2013SS2G40	Brass Chrome Plated	50000 Cycles	Epoxy Sealed Terminals	Unthreaded	Standard Round	85 °C	-30 ░C	SPDT	Non-Illuminated	28 V	0.4 VA	PC Pin	28 V	On-Off-On	6.5 mm	Right Angle Through Hole Vertical

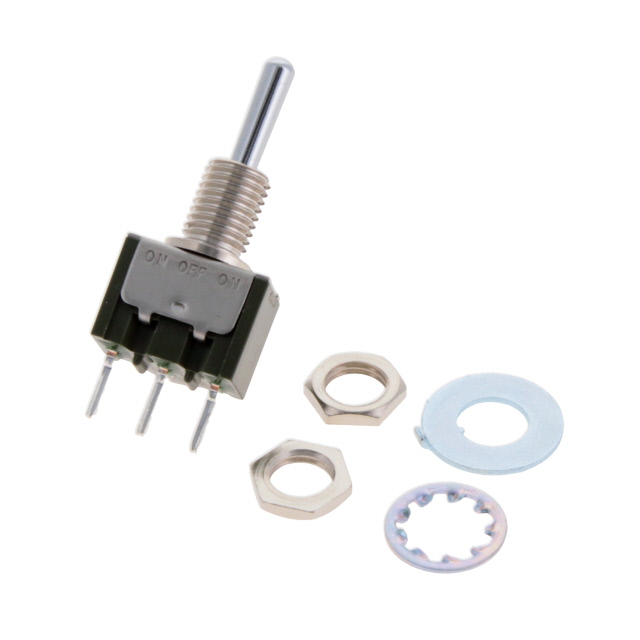

NKK Switches M2013SS4W03	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	M6	Standard Round	85 °C	-30 ░C	SPDT	Non-Illuminated	30 V	4 A 6 A	PC Pin	125 V	On-Off-On	6.5 mm	Panel Mount		0.75
NKK Switches M2013SS1W03-BG	Brass Chrome Plated	25000 Steps	Blue Cap	1/4-40	Standard Round with Cap	85 °C	-30 ░C	SPDT	Non-Illuminated	30 V	3 A 6 A	PC Pin	125 V	On-Off-On	6.5 mm	Panel Mount	13.5 mm

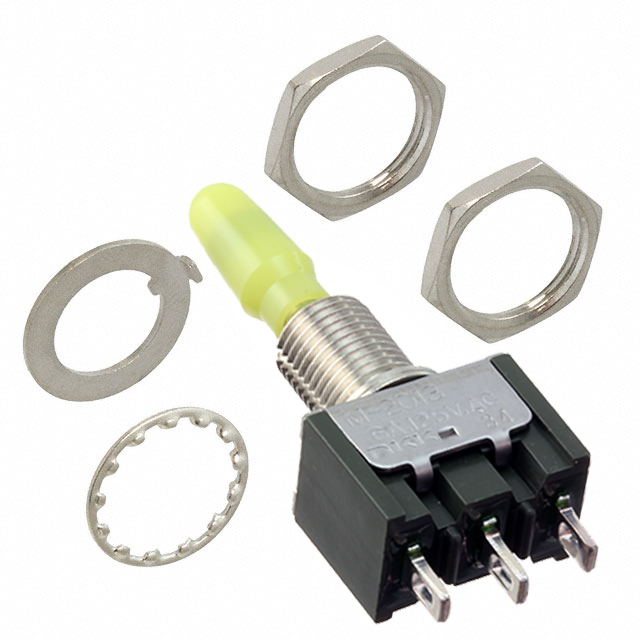

NKK Switches M2013SS1W01-BE	Brass Chrome Plated	25000 Steps	Yellow Cap	1/4-40	Standard Round with Cap	85 °C	-30 ░C	SPDT	Non-Illuminated	30 V	3 A 6 A	Solder Lug	125 V	On-Off-On	6.5 mm	Panel Mount	13.5 mm
NKK Switches M2013SS4W01	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	M6	Standard Round	85 °C	-30 ░C	SPDT	Non-Illuminated	30 V	3 A 6 A	Solder Lug	125 V	On-Off-On	6.5 mm	Panel Mount		0.75
NKK Switches M2013SS1W02	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	1/4-40	Standard Round	85 °C	-30 ░C	SPDT	Non-Illuminated	30 V	3 A 6 A	Quick Connect - 0.062" (1.5mm)	125 V	On-Off-On	6.5 mm	Panel Mount
NKK Switches M2013SS1G40	Brass Chrome Plated	50000 Cycles	Epoxy Sealed Terminals	1/4-40	Standard Round	85 °C	-30 ░C	SPDT	Non-Illuminated	28 V	0.4 VA	PC Pin	28 V	On-Off-On	6.5 mm	Panel Mount Right Angle Vertical
