PBC15 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 30POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Number of Positions Loaded	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Fastening Type	Number of Rows [custom]	Contact Finish - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Post	Insulation Color	Number of Positions	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Shape	Connector Type	Contact Material	Shrouding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Insulation Height [z]	Insulation Height [z]	Number of Rows
Sullins Connector Solutions PBC15DAAN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Push-Pull	2	Gold	3 A	0.1 in	2.54 mm	3.05 mm	0.12 in	0.25 µm	10 µin	Male Pin	11.43 mm	0.45 in	Tin	Black	30	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Through Hole	-65 ░C	125 °C
Sullins Connector Solutions PBC15DFBN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Push-Pull	2	Gold	3 A	0.1 in	2.54 mm	5.58 mm	0.22 in	0.25 µm	10 µin	Male Pin			Tin	Black	30	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Through Hole	-65 ░C	125 °C	0.638 in	16.21 mm

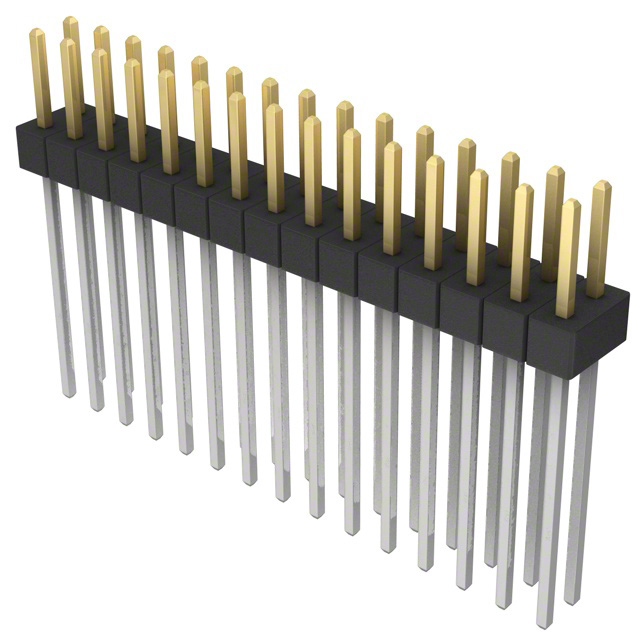

Sullins Connector Solutions PBC15DAFN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Push-Pull	2	Gold	3 A	0.1 in	2.54 mm			0.25 µm	10 µin	Male Pin			Tin	Black	30	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Through Hole	-65 ░C	125 °C	0.95 in	24.13 mm	15.75 mm	0.62 "
Sullins Connector Solutions PBC15DBBN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Push-Pull	2	Gold	3 A					0.25 µm	10 µin	Male Pin			Tin	Black	30	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Right Angle Through Hole	-65 ░C	125 °C			5.08 mm	0.2 "	6.1 mm	0.24 in
Sullins Connector Solutions PBC15DABN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Push-Pull	2	Gold	3 A	0.1 in	2.54 mm	5.84 mm	0.23 "	0.25 µm	10 µin	Male Pin			Tin	Black	30	0.1 "	2.54 mm	0.1 in	2.54 mm	Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Through Hole	-65 ░C	125 °C	0.56 in	14.22 mm
Sullins Connector Solutions PBC15SFAN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Push-Pull		Gold	3 A	0.1 in	2.54 mm	3.05 mm	0.12 in	0.25 µm	10 µin	Male Pin	13.67 mm	0.538 in	Tin	Black	15	0.1 "	2.54 mm			Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Through Hole	-65 ░C	125 °C							1

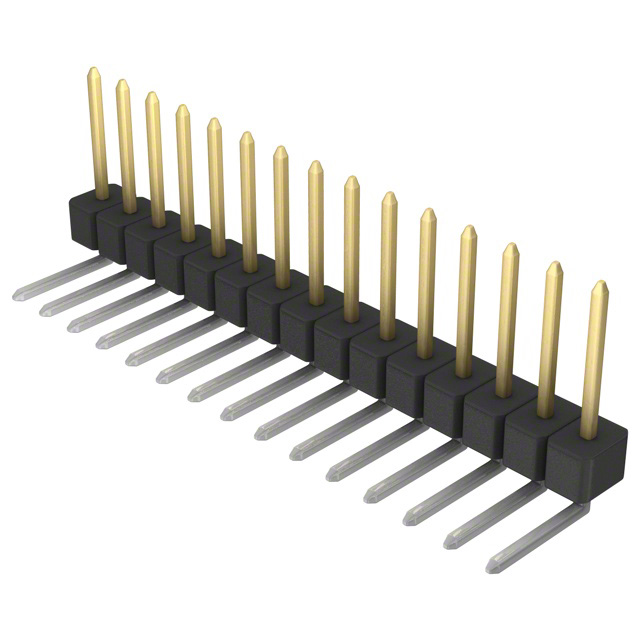

Sullins Connector Solutions PBC15SGBN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	Push-Pull		Gold	3 A	0.14 in	3.56 mm			0.25 µm	10 µin	Male Pin			Tin	Black	15	0.1 "	2.54 mm			Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Right Angle Through Hole	-65 ░C	125 °C			5.08 mm	0.2 "			1

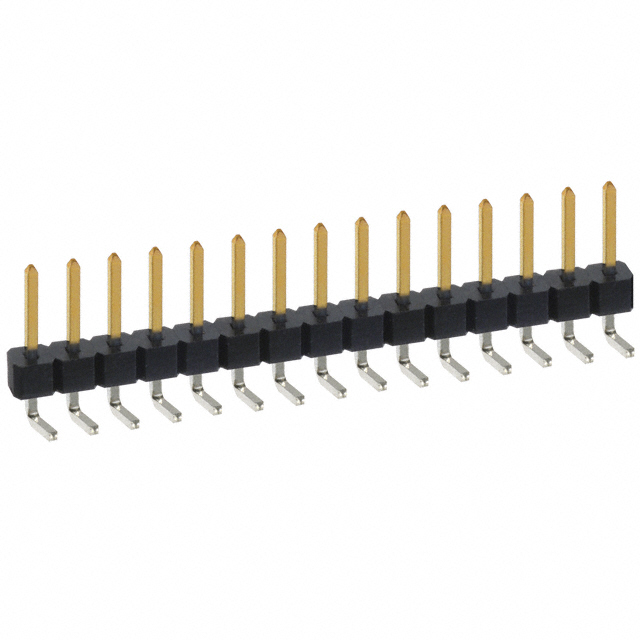

Sullins Connector Solutions PBC15SBAN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Push-Pull		Gold	3 A	0.14 in	3.56 mm	2.54 mm	0.1 in	0.25 µm	10 µin	Male Pin			Tin	Black	15	0.1 "	2.54 mm			Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Right Angle Through Hole	-65 ░C	125 °C							1

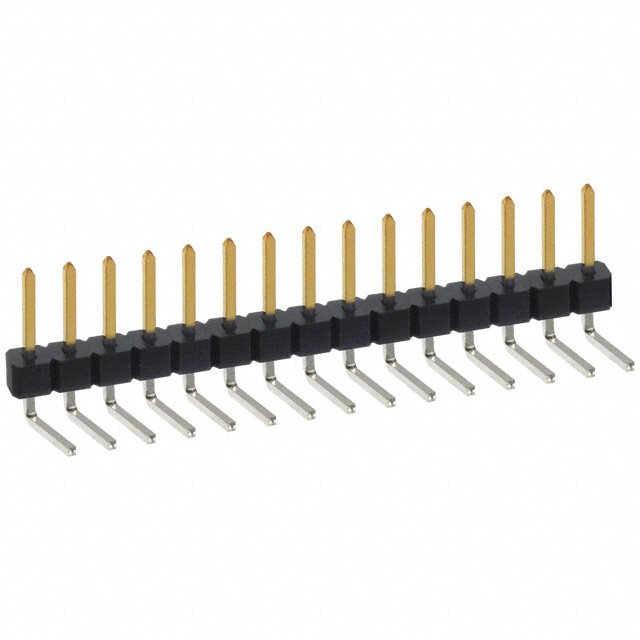

Sullins Connector Solutions PBC15SBCN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Push-Pull		Gold	3 A	0.14 in	3.56 mm	7.62 mm	0.3 in	0.25 µm	10 µin	Male Pin			Tin	Black	15	0.1 "	2.54 mm			Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Right Angle Through Hole	-65 ░C	125 °C							1

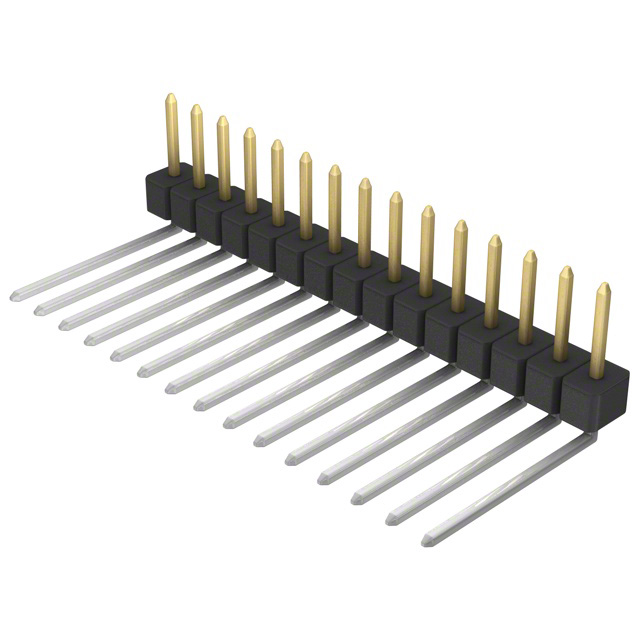

Sullins Connector Solutions PBC15SBEN	2.54 µm	100 µin	Board to Board Cable	All	UL94 V-0	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	Push-Pull		Gold	3 A	0.14 in	3.56 mm	12.7 mm	0.5 "	0.25 µm	10 µin	Male Pin			Tin	Black	15	0.1 "	2.54 mm			Solder	Square	Header Breakaway	Phosphor Bronze	Unshrouded	Right Angle Through Hole	-65 ░C	125 °C							1
