626-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

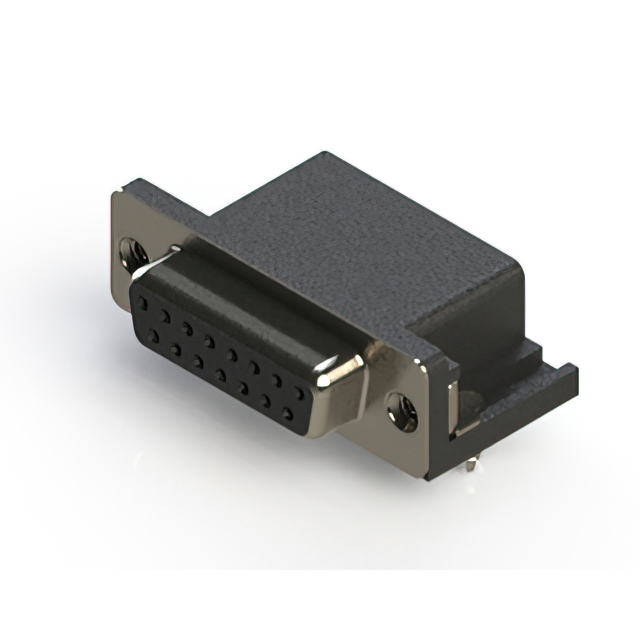

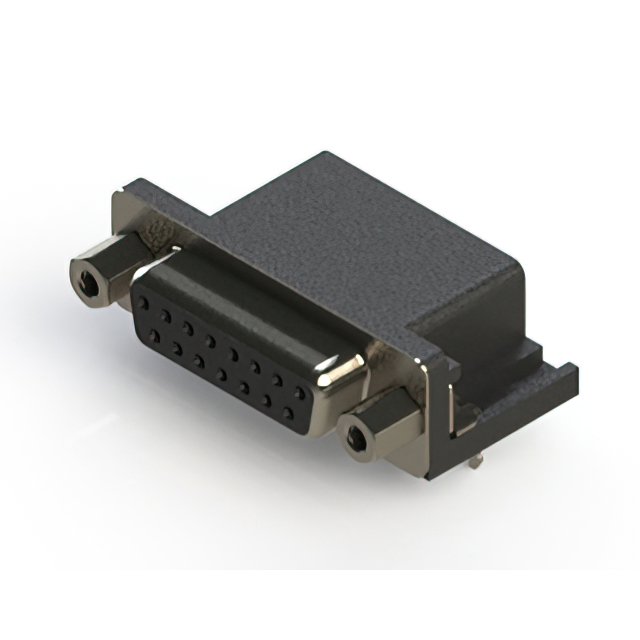

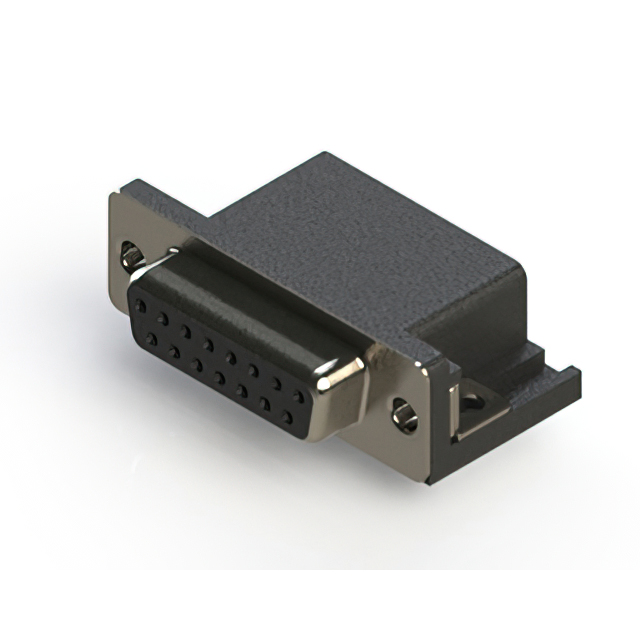

626 SERIES RIGHT ANGLE D-SUB REC
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Features | Mounting Type | Connector Type | Backset Spacing | Backset Spacing | Termination | Number of Rows [custom] | Connector Style | Contact Finish | Number of Positions | Contact Type | Flange Feature | Flange Feature | Current Rating (Amps) | Material Flammability Rating | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | 2 | 30 Áin | 0.76 Ám | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | Housing/Shell | 4-40 | 3 A | UL94 V-0 | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 2 | 15 µin | 0.38 µm | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | 4-40 Mating Side Female Screwlock | 3 A | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 2 | 30 Áin | 0.76 Ám | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | 4-40 Mating Side Female Screwlock | 3 A | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 2 | 30 Áin | 0.76 Ám | Nickel Plated Steel | Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | Housing/Shell | 4-40 | 3 A | UL94 V-0 | |
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | 2 | Nickel Plated Steel | Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | 4-40 | 3 A | UL94 V-0 | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 2 | 30 Áin | 0.76 Ám | Nickel Plated Steel | Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | 4-40 | 3 A | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | 2 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | 4-40 | 3 A | UL94 V-0 | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 85 °C | Black | Polyester Thermoplastic | 2 | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | 4-40 Mating Side Female Screwlock | 3 A | UL94 V-0 | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 2 | 15 µin | 0.38 µm | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | 4-40 | 3 A | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyester Thermoplastic | 2 | 15 µin | 0.38 µm | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Board Edge Right Angle Through Hole | Receptacle Female Sockets | 0.584 " | 14.84 mm | Solder | 2 | D-Sub | Gold | 15 | Signal | Housing/Shell (Unthreaded) | 3 A | UL94 V-0 |
