119K207 Series
Manufacturer: Rosenberger
Beta
⌘K

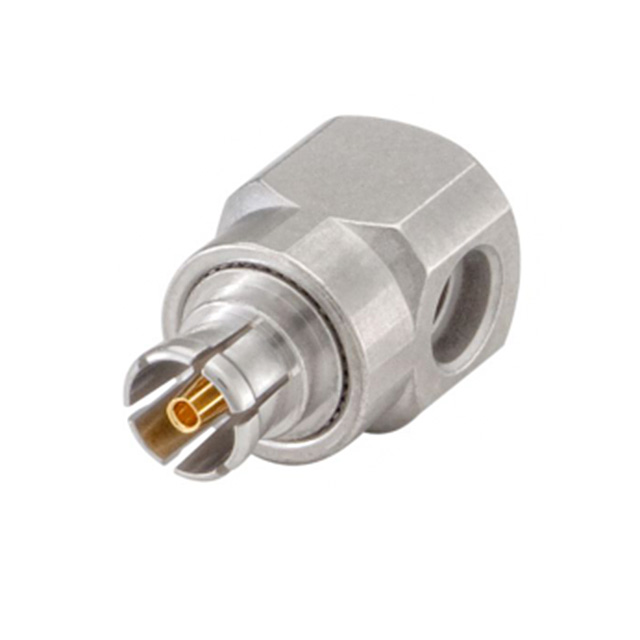

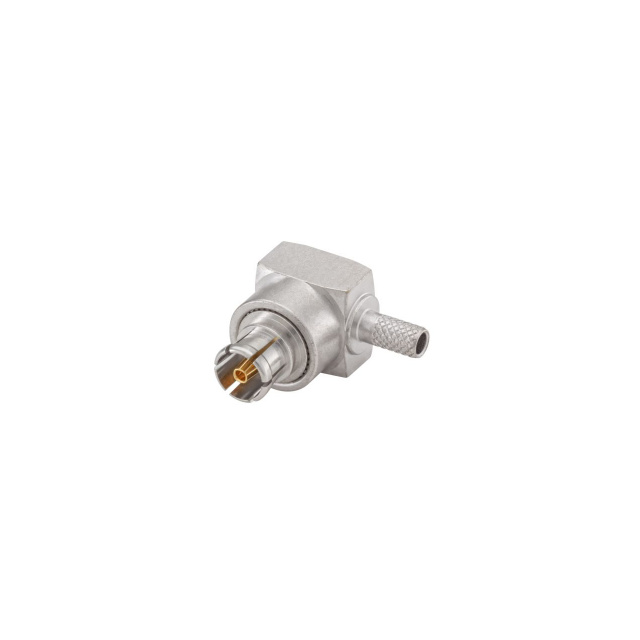

PSMP RIGHT ANGLE JACK
| Part | Dielectric Material | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Mating Cycles | Connector Type | Housing Color | Contact Termination | Fastening Type | Number of Ports | Shield Termination | Connector Style | Impedance | Center Contact Material | Mounting Type | Frequency - Max [Max] | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | -65 ░C | 165 °C | Beryllium Copper Brass | 480 V | 1000 | Female Socket Jack | Silver | Solder | Snap-On | 1 | Crimp | PSMP | 50 Ohms | Beryllium Copper | Free Hanging (In-Line) Right Angle | 10 GHz | |
 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | -65 ░C | 165 °C | Brass | 480 V | Female Socket Jack | Silver | Solder | Snap-On | 1 | Solder | PSMP | 50 Ohms | Beryllium Copper | Free Hanging (In-Line) Right Angle | 10 GHz | 1 Connector 1 End Cap |
