R22205 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

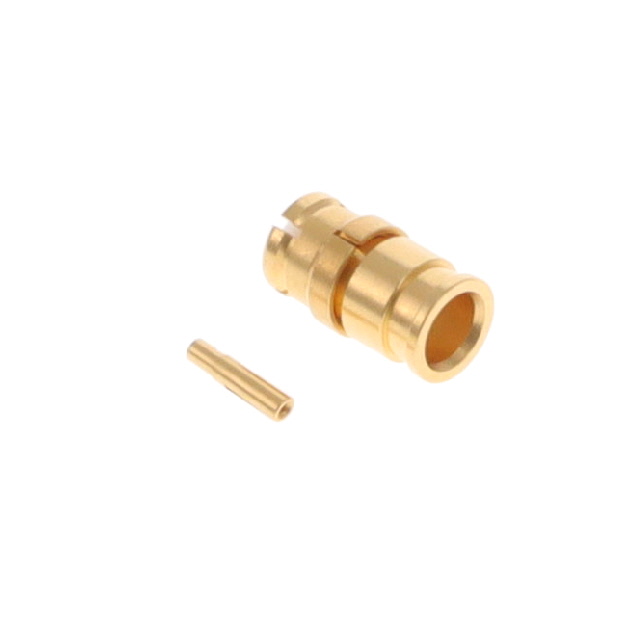

SMP / STRAIGHT FEMALE PLUG SOLDE
| Part | Dielectric Material | Voltage Rating | Body Finish | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Connector Type | Housing Color | Impedance | Shield Termination | Number of Ports | Mounting Type | Contact Termination | Cable Group | Frequency - Max [Max] | Center Contact Material | Fastening Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Gold | 1000 | -65 ░C | 165 °C | Beryllium Copper | Female Socket Plug | Gold | 50 Ohms | Solder | 1 | Free Hanging (In-Line) | Solder | RG-405 (.085" Semi Rigid) | 40 GHz | Beryllium Copper | Snap-On | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Gold | -65 ░C | 165 °C | Beryllium Copper | Female Socket Plug | Gold | 50 Ohms | Solder | 1 | Free Hanging (In-Line) | Solder | 40 GHz | Beryllium Copper | Snap-On | 0.047 in | ||
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Gold | -65 ░C | 165 °C | Beryllium Copper | Female Socket Plug | Gold | 50 Ohms | Solder | 1 | Free Hanging (In-Line) | Solder | RG-405 (.085" Semi Rigid) | 40 GHz | Beryllium Copper | Snap-On | ||
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | Gold | Gold | -65 ░C | 165 °C | Beryllium Copper | Female Socket Plug | Gold | 50 Ohms | Solder | 1 | Free Hanging (In-Line) | Solder | 40 GHz | Beryllium Copper | Snap-On | 0.047 in |
