807-020 Series
Manufacturer: EDAC Inc.
Beta
⌘K

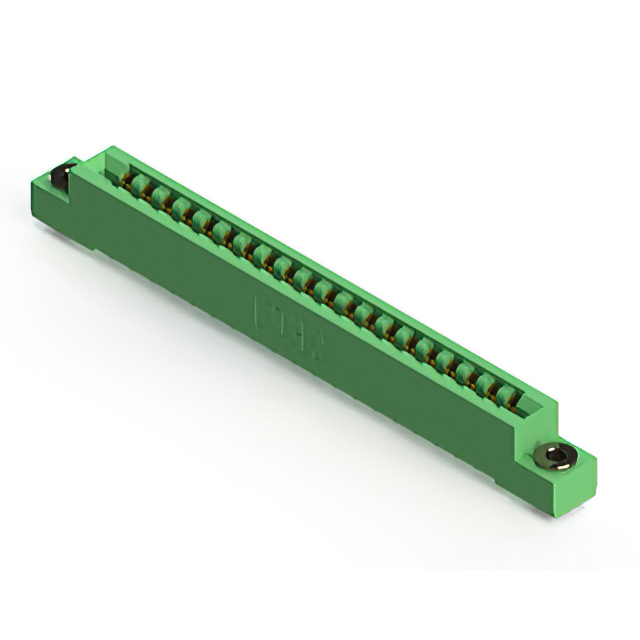

CONN EDGE DUAL FMALE 20POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Material | Number of Rows [custom] | Termination | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Gender | Contact Type | Read Out | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Number of Positions | Features | Color | Card Type | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Gold | Copper Alloy | 2 | Solder | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Board Edge Straddle Mount | Female | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 20 | Card Extender | Green | Non Specified - Dual Edge | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 20 Bay/Row | 125 °C | -40 C | Gold | Copper Alloy | 2 | Solder | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Right Angle Through Hole | Female | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 40 | Green | Non Specified - Dual Edge | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 20 Bay/Row | 125 °C | -40 C | Gold | Copper Alloy | 2 | Solder | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Female | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 40 | Green | Non Specified - Dual Edge | 1 | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Tin | Copper Alloy | 2 | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Female | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 20 | Green | Non Specified - Dual Edge | |||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Gold | Copper Alloy | 2 | Solder | 0.25 Ám | 10 Áin | Right Angle Through Hole | Female | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 20 | Green | Non Specified - Dual Edge | ||||||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 10 | 125 °C | -40 C | Gold | Copper Alloy | 2 | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Through Hole | Female | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 20 | Green | Non Specified - Dual Edge | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 20 Bay/Row | 125 °C | -40 C | Gold | Copper Alloy | 2 | Solder | 0.25 Ám | 10 Áin | Right Angle Through Hole | Female | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 40 | Green | Non Specified - Dual Edge | 1 | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 20 Bay/Row | 125 °C | -40 C | Tin | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Female | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 20 | Green | Non Specified - Single Edge | 1 | 1 | |||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 20 Bay/Row | 125 °C | -40 C | Tin | Copper Alloy | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Female | Semi Bellows | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 20 | Green | Non Specified - Single Edge | 1 | 1 | |||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 20 Bay/Row | 125 °C | -40 C | Tin | Copper Alloy | 2 | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Female | Semi Bellows | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 40 | Green | Non Specified - Dual Edge | 1 |
