BD63007 Series

Three-phase Brushless Motor Driver

Catalog

Three-phase Brushless Motor Driver

Part	Motor Type - AC, DC	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Voltage - Load [Max]	Voltage - Load [Min]	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output	Function	Supplier Device Package	Mounting Type	Output Configuration

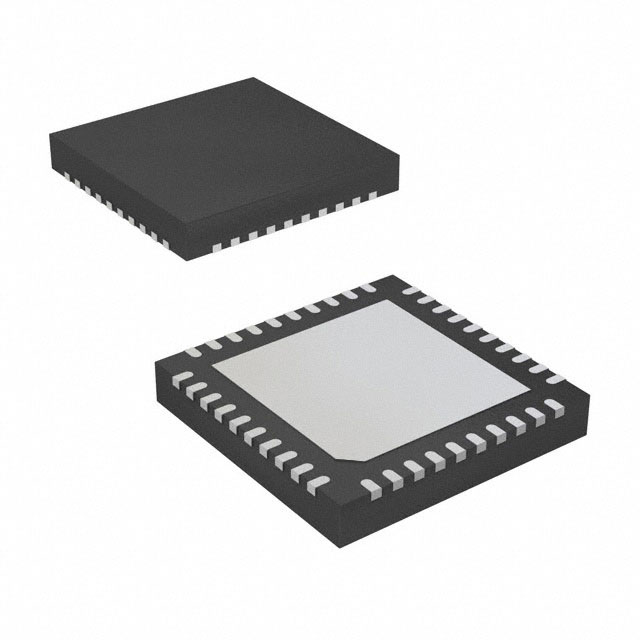

Rohm Semiconductor BD63007MUV-E2	Brushless DC (BLDC)	DMOS	28 V	8 V	General Purpose	28 V	8 V	Logic	85 °C	-25 °C	40-VFQFN Exposed Pad	3 A	Driver	VQFN040V6060	Surface Mount	Half Bridge (3)

Catalog

Three-phase Brushless Motor Driver

Description

BD63007MUV is a Three-Phase Brushless Motor Driver with 33V power supply voltage rating and 3A (5A peak) output current rating. It generates a driving signal from the Hall sensor and drives PWM through the input control signal. In addition, the power supply can use 12V or 24V and it has various controls and built-in protection functions, making it useful for variety of purposes. Since the IC adopts small packages, it can be used on small diameter motors.
