ASP043 Series

Catalog

SPRING CLAMP TERMINAL BLOCK, PLU

Part	Insulation Height	Insulation Height	Contact Material	Material Flammability Rating	Ingress Protection	Housing Material	Voltage - UL	Pitch	Pitch	Positions Per Level	Type	Current - UL	Termination Style	Number of Levels	Plug Wire Entry	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Mounting Type
METZ CONNECT USA Inc. ASP0430822	0.61 in	15.49 mm	Copper Alloy	UL94 V-0	IP20	Polyamide (PA46) Nylon 4/6	150 V	3.5 mm	0.138 "	8	Plug Female Sockets	10 A	Screwless - Spring Cage Tension Clamp	1	180 °	28 AWG	16 AWG	Lever Actuated	0.08 mm²	1.5 mm²	Black	8	-40 C	105 ░C	Tin	Free Hanging (In-Line)
METZ CONNECT USA Inc. ASP0430522	0.61 in	15.49 mm	Copper Alloy	UL94 V-0	IP20	Polyamide (PA46) Nylon 4/6	150 V	3.5 mm	0.138 "	5	Plug Female Sockets	10 A	Screwless - Spring Cage Tension Clamp	1	180 °	28 AWG	16 AWG	Lever Actuated	0.08 mm²	1.5 mm²	Black	5	-40 C	105 ░C	Tin	Free Hanging (In-Line)

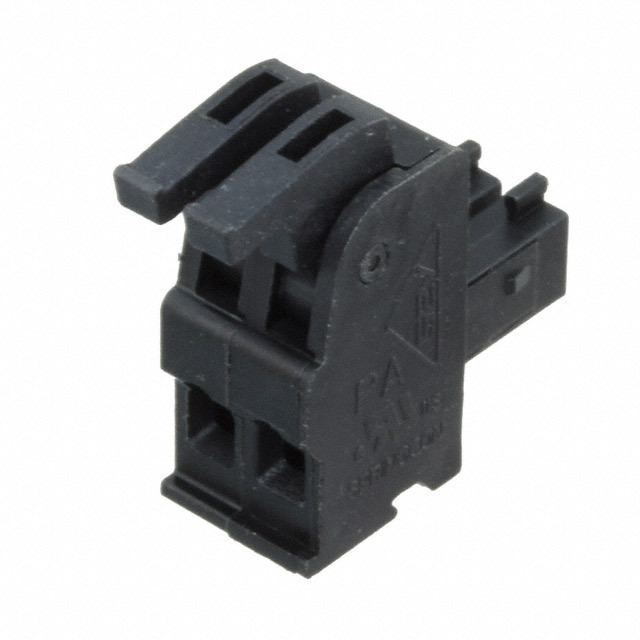

METZ CONNECT USA Inc. ASP0430222	0.61 in	15.49 mm	Copper Alloy	UL94 V-0	IP20	Polyamide (PA46) Nylon 4/6	150 V	3.5 mm	0.138 "	2	Plug Female Sockets	10 A	Screwless - Spring Cage Tension Clamp	1	180 °	28 AWG	16 AWG	Lever Actuated	0.08 mm²	1.5 mm²	Black	2	-40 C	105 ░C	Tin	Free Hanging (In-Line)
METZ CONNECT USA Inc. ASP0431222	0.61 in	15.49 mm	Copper Alloy	UL94 V-0	IP20	Polyamide (PA46) Nylon 4/6	150 V	3.5 mm	0.138 "	12	Plug Female Sockets	10 A	Screwless - Spring Cage Tension Clamp	1	180 °	28 AWG	16 AWG	Lever Actuated	0.08 mm²	1.5 mm²	Black	12	-40 C	105 ░C	Tin	Free Hanging (In-Line)
METZ CONNECT USA Inc. ASP0430422	0.61 in	15.49 mm	Copper Alloy	UL94 V-0	IP20	Polyamide (PA46) Nylon 4/6	150 V	3.5 mm	0.138 "	4	Plug Female Sockets	10 A	Screwless - Spring Cage Tension Clamp	1	180 °	28 AWG	16 AWG	Lever Actuated	0.08 mm²	1.5 mm²	Black	4	-40 C	105 ░C	Tin	Free Hanging (In-Line)
METZ CONNECT USA Inc. ASP0430322	0.61 in	15.49 mm	Copper Alloy	UL94 V-0	IP20	Polyamide (PA46) Nylon 4/6	150 V	3.5 mm	0.138 "	3	Plug Female Sockets	10 A	Screwless - Spring Cage Tension Clamp	1	180 °	28 AWG	16 AWG	Lever Actuated	0.08 mm²	1.5 mm²	Black		-40 C	105 ░C	Tin	Free Hanging (In-Line)
METZ CONNECT USA Inc. ASP0431022	0.61 in	15.49 mm	Copper Alloy	UL94 V-0	IP20	Polyamide (PA46) Nylon 4/6	150 V	3.5 mm	0.138 "	10	Plug Female Sockets	10 A	Screwless - Spring Cage Tension Clamp	1	180 °	28 AWG	16 AWG	Lever Actuated	0.08 mm²	1.5 mm²	Black	10	-40 C	105 ░C	Tin	Free Hanging (In-Line)
