34124 Series

Catalog

CONN RING CIRC 14-16AWG #1/4

Part	Contact Material	Terminal Type	Insulation	Termination	Length - Overall	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Thickness	Thickness	Mounting Type	Stud/Tab Size	Contact Finish
TE Connectivity Raychem Cable Protection 34124-1	Copper	Circular	Non-Insulated	Crimp	0.855 in	21.72 mm	11.91 mm	0.469 in	Brazed Seam Serrated Termination	0.031 in	0.79 mm	Free Hanging (In-Line)	0.25 Stud

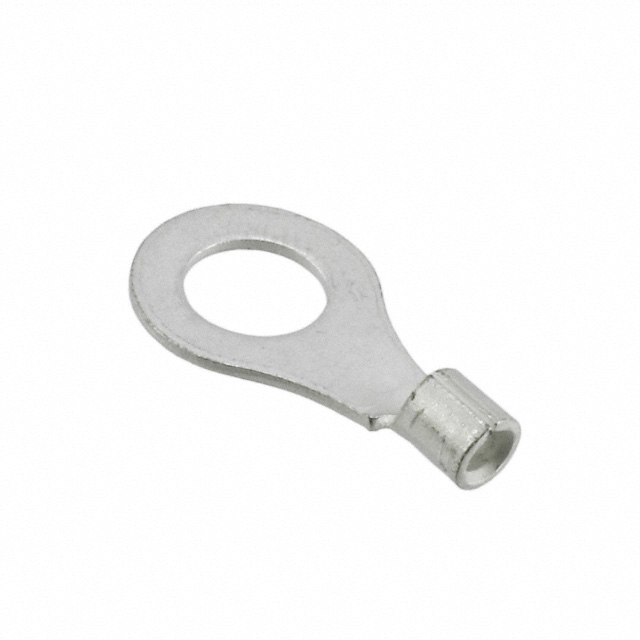

TE Connectivity Raychem Cable Protection 2-34124-1	Copper	Circular	Non-Insulated	Crimp	0.855 in	21.72 mm	11.91 mm	0.469 in	Brazed Seam Serrated Termination	0.031 in	0.79 mm	Free Hanging (In-Line)	0.25 Stud	Tin
