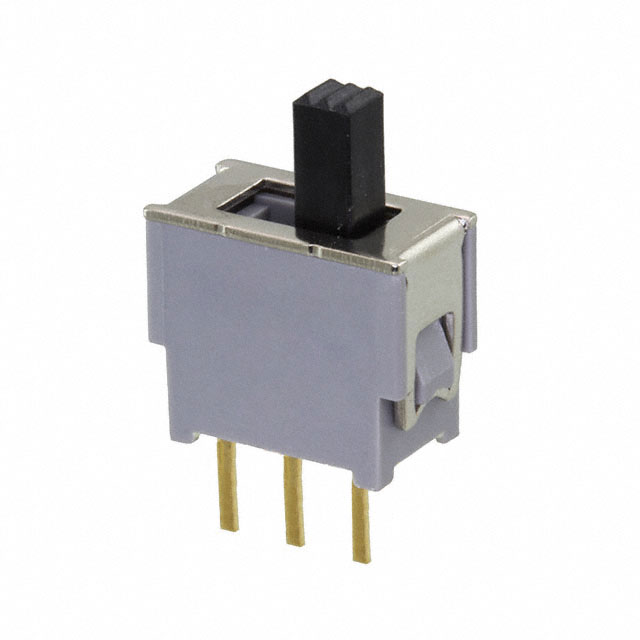

AS1E-2M Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SLIDE SWITCH, SPDT, 0.05A, 48V, TH
| Part | Electrical Life | Operating Force [Min] | Operating Force [Max] | Switch Travel | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Circuit | Termination Style | Mounting Type | Voltage Rating - DC | Contact Timing | Current Rating (Amps) | Switch Function | Contact Finish | Actuator Length [x] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 10000 Cycles | 70 gf | 500 gf | 2.2 mm | 85 °C | -20 ░C | Standard | SPDT | PC Pin | Through Hole | 48 V | Non-Shorting (BBM) | 50 mA | On-Off-On | Gold | 4.3 mm | 48 V |
