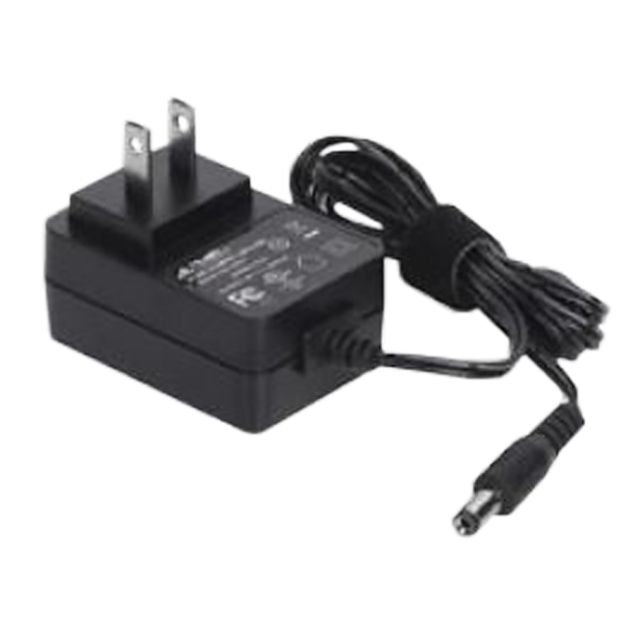

L6R12 Series

Catalog

AC/DC WALL MOUNT ADAPTER 24V 12W

Part	Voltage - Output	Cord Length	Cord Length	Region Utilized	Approval Agency	Form	Polarization	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Power (Watts)	Standard Number	Current - Output (Max) [Max]	No Load Power Consumption	Efficiency	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]
Tri-Mag, LLC L6R12-240	24 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	0 °C	NEMA 1-15P	12 W	62368-1	500 mA	100 mW	Level VI	ITE (Commercial)	1 in	2.32 in	25.4 mm	1.61 in	40.9 mm	59 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC

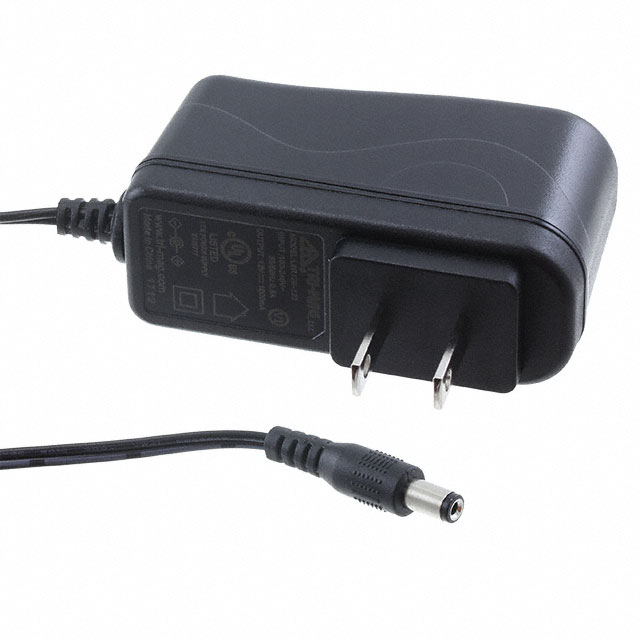

Tri-Mag, LLC L6R12H-050	5 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	10 °C	NEMA 1-15P	10 W	62368-1	2 A	100 mW	Level VI	ITE (Commercial)	1.71 in	1.54 in	43.5 mm	24.13 mm	24 mm	39.2 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
Tri-Mag, LLC L6R12-300	30 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	0 °C	NEMA 1-15P	12 W	62368-1	400 mA	100 mW	Level VI	ITE (Commercial)	1.24 "	2.32 in	31.5 mm	1.61 in	40.9 mm	58.9 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
Tri-Mag, LLC L6R12-090	9 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	0 °C	NEMA 1-15P	12 W	62368-1	1.3 A	100 mW	Level VI	ITE (Commercial)	1 in	2.32 in	25.4 mm	1.61 in	40.9 mm	59 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
Tri-Mag, LLC L6R12H-120	12 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	10 °C	NEMA 1-15P	12 W	62368-1	1 A	100 mW	Level VI	ITE (Commercial)	1.71 in	1.54 in	43.5 mm	24.13 mm	24 mm	39.2 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
Tri-Mag, LLC L6R12-180	18 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	0 °C	NEMA 1-15P	13 W	62368-1	700 mA	100 mW	Level VI	ITE (Commercial)	1.24 "	2.32 in	31.5 mm	1.61 in	40.9 mm	58.9 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
Tri-Mag, LLC L6R12-360	36 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	0 °C	NEMA 1-15P	11 W	62368-1	0.3 A	100 mW	Level VI	ITE (Commercial)	1.24 "	2.32 in	31.5 mm	1.61 in	40.9 mm	58.9 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
Tri-Mag, LLC L6R12-050	5 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	0 °C	NEMA 1-15P	11 W	62368-1	2.1 A	100 mW	Level VI	ITE (Commercial)	1 in	2.32 in	25.4 mm	1.61 in	40.9 mm	59 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
Tri-Mag, LLC L6R12-070	7 V	1.5 m	59 in	North America	cUL FCC UL	Wall Mount	Positive Center	Fixed Blade	40 °C	0 °C	NEMA 1-15P	9.1 W	62368-1	1.3 A	100 mW	Level VI	ITE (Commercial)	1.24 "	2.32 in	31.5 mm	1.61 in	40.9 mm	58.9 mm	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
