M2112LE Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Length [x] | Mounting Type | Actuator Type | Panel Cutout Dimensions [diameter] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Illumination Type, Color | Bushing Thread | Illumination Voltage (Nominal) | Termination Style | Switch Function | Current Rating (Amps) | Illumination | Voltage Rating - AC | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

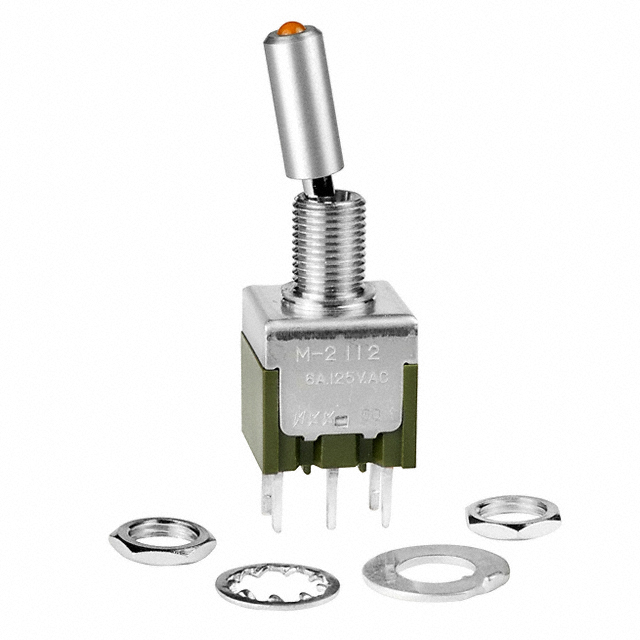

 NKK Switches | 25000 Steps | 14.7 mm | Panel Mount | Standard Round | 6.5 mm | Epoxy Sealed Terminals | 55 °C | -10 °C | SPDT | LED Yellow | 1/4-40 | 2.1 VDC | Quick Connect - 0.062" (1.5mm) | On-On | 3 A 6 A | Illuminated | 125 V | 30 V |

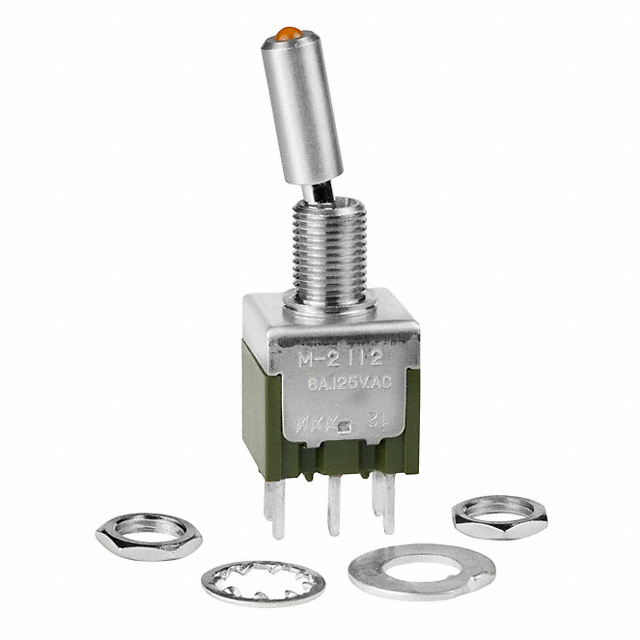

 NKK Switches | 25000 Steps | 14.7 mm | Panel Mount | Standard Round | 6.5 mm | Epoxy Sealed Terminals | 55 °C | -10 °C | SPDT | LED Yellow | 1/4-40 | 2.1 VDC | PC Pin | On-On | 3 A 6 A | Illuminated | 125 V | 30 V |
