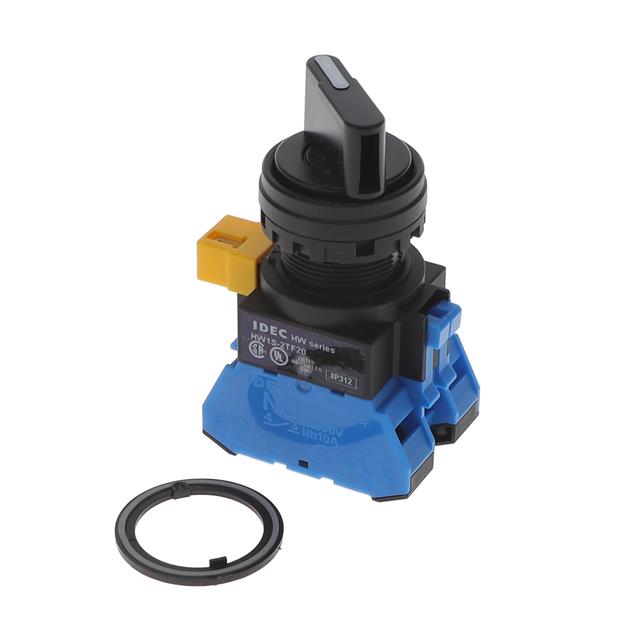

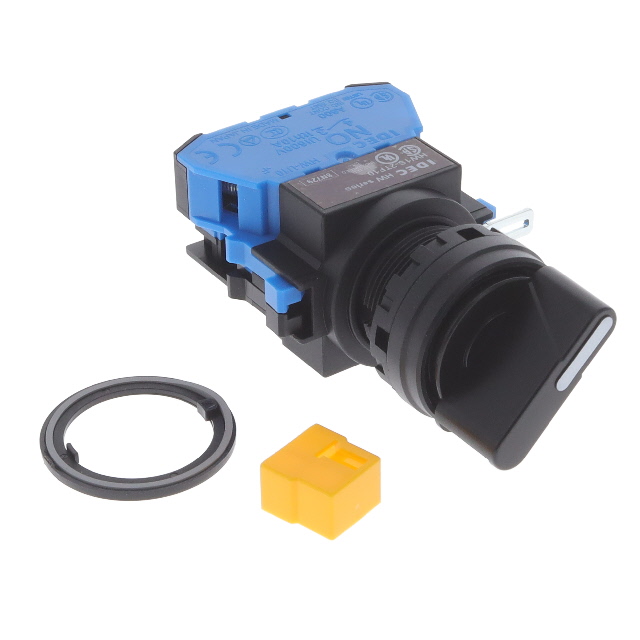

HW1S-2T Series
Manufacturer: IDEC
Beta
⌘K
ROTARY SWITCH, 2 POSITION, 2 POLE, 90 °, 10 A, 600 V, HW SERIES
| Part | Depth Behind Flange [z] | Approval Agency | Mechanical Life | Ingress Protection | Circuit | Voltage Rating - DC | Mounting Type | Number of Positions | Type | Panel Cutout Dimensions [diameter] | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Switch Function | Current Rating (Amps) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 48.5 mm | CCC CE CSA TUV UL | 500000 Cycles | IP65 - Dust Tight Water Resistant | DPST-NO | 24 V | Panel Mount | 2 | Standard | 22.3 mm | Non-Illuminated | 50 °C | -25 °C | 110 V | Off-On | 8 A 10 A | Screw Terminal |
 IDEC | 48.5 mm | CCC CE CSA TUV UL | 500000 Cycles | IP65 - Dust Tight Water Resistant | SPST-NO | 24 V | Panel Mount | 2 | Standard | 22.3 mm | Non-Illuminated | 50 °C | -25 °C | 110 V | Off-On | 8 A 10 A | Screw Terminal |
