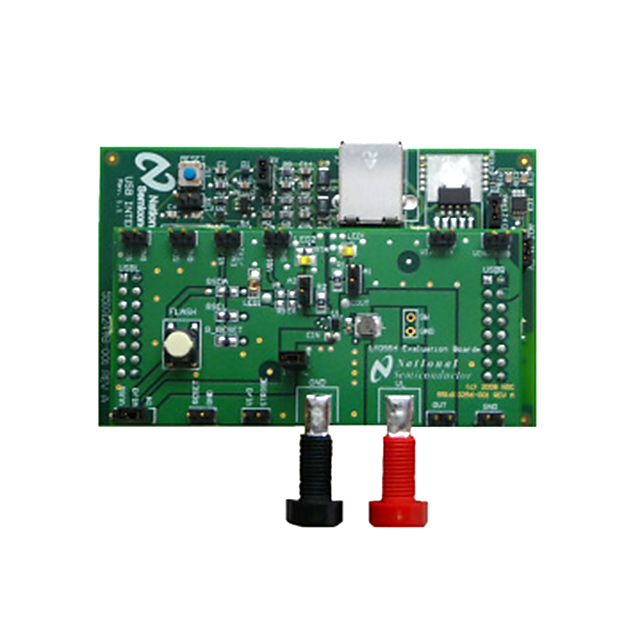

LM3554 Series
Synchronous boost converter with 1.2A dual high side LED driver and I2C compatible interface
Manufacturer: Texas Instruments
Catalog
Synchronous boost converter with 1.2A dual high side LED driver and I2C compatible interface
Key Features
• Input Voltage: 2.5 V to 5.5 VProgrammable 4.5-V or 5-V Constant Output VoltageDual High-Side Current SourcesGrounded Cathode Allowing for Better Heat Sinking and LED Routing> 90% EfficiencyUltra-Small Solution Size: < 23 mm2Four Operating Modes: Torch, Flash, LED Indicator, and Voltage OutputAccurate and Programmable LED Current from 37.5 mA to 1.2 AHardware Flash and Torch EnableLED Thermal Sensing and Current ScalebackSoftware Selectable Input Voltage MonitorProgrammable Flash TimeoutDual Synchronization Inputs for RF Power-Amplifier Pulse EventsOpen and Short LED DetectionActive High Hardware Enable for Protection Against System Faults400-kHz I2C-Compatible InterfaceInput Voltage: 2.5 V to 5.5 VProgrammable 4.5-V or 5-V Constant Output VoltageDual High-Side Current SourcesGrounded Cathode Allowing for Better Heat Sinking and LED Routing> 90% EfficiencyUltra-Small Solution Size: < 23 mm2Four Operating Modes: Torch, Flash, LED Indicator, and Voltage OutputAccurate and Programmable LED Current from 37.5 mA to 1.2 AHardware Flash and Torch EnableLED Thermal Sensing and Current ScalebackSoftware Selectable Input Voltage MonitorProgrammable Flash TimeoutDual Synchronization Inputs for RF Power-Amplifier Pulse EventsOpen and Short LED DetectionActive High Hardware Enable for Protection Against System Faults400-kHz I2C-Compatible Interface
Description
AI
The LM3554 is a 2-MHz fixed-frequency, current-mode synchronous boost converter. The device is designed to operate as a dual 600-mA (1.2 A total) constant-current driver for high-current white LEDs, or as a regulated 4.5-V or 5-V voltage source.
The main features include: an I2C-compatible interface for controlling the LED current or the desired output voltage, a hardware flash enable input for direct triggering of the flash pulse, and dual TX inputs which force the flash pulse into a low-current torch mode allowing for synchronization to RF power amplifier events or other high-current conditions. Additionally, an active high hardware enable (HWEN) input provides a hardware shutdown during system software failures.
Five protection features are available within the LM3554 including a software selectable input voltage monitor, an internal comparator for interfacing with an external temperature sensor, four selectable current limits to ensure the battery current is kept below a predetermined peak level, an overvoltage protection feature to limit the output voltage during LED open circuits, and an output short circuit protection which limits the output current during shorts to GND.
The LM3554 is a 2-MHz fixed-frequency, current-mode synchronous boost converter. The device is designed to operate as a dual 600-mA (1.2 A total) constant-current driver for high-current white LEDs, or as a regulated 4.5-V or 5-V voltage source.
The main features include: an I2C-compatible interface for controlling the LED current or the desired output voltage, a hardware flash enable input for direct triggering of the flash pulse, and dual TX inputs which force the flash pulse into a low-current torch mode allowing for synchronization to RF power amplifier events or other high-current conditions. Additionally, an active high hardware enable (HWEN) input provides a hardware shutdown during system software failures.
Five protection features are available within the LM3554 including a software selectable input voltage monitor, an internal comparator for interfacing with an external temperature sensor, four selectable current limits to ensure the battery current is kept below a predetermined peak level, an overvoltage protection feature to limit the output voltage during LED open circuits, and an output short circuit protection which limits the output current during shorts to GND.
