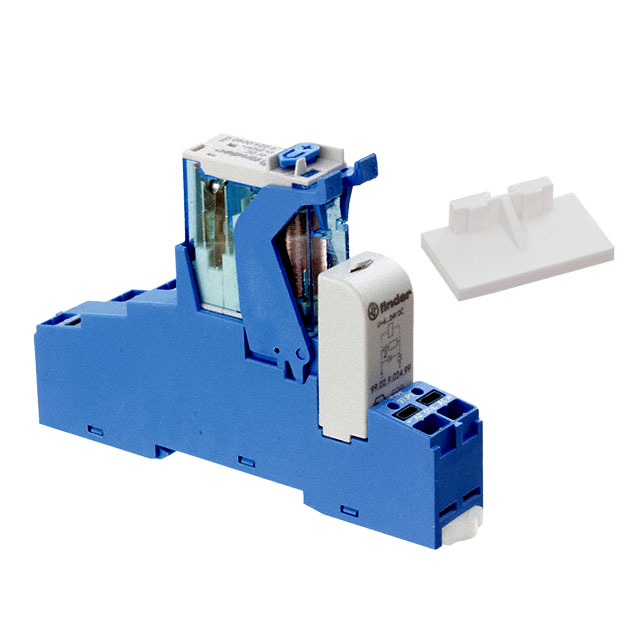

4C.P2.9 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 12V
| Part | Coil Resistance | Switching Voltage [Max] | Must Release Voltage | Release Time | Contact Rating (Current) | Termination Style | Features | Coil Current | Contact Material | Operate Time | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Coil Voltage | Relay Type | Coil Type | Mounting Type | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 300 Ohms | 440 VAC | 2.4 VDC | 10 ms | 8 A | Spring Terminal | Diode Lighted Indicator | 40 mA | Silver Nickel (AgNi) | 10 ms | 8.8 VDC | 70 °C | -40 C | 3520 VA | 12 VDC | General Purpose | Non Latching | DIN Rail | DPDT (2 Form C) |
