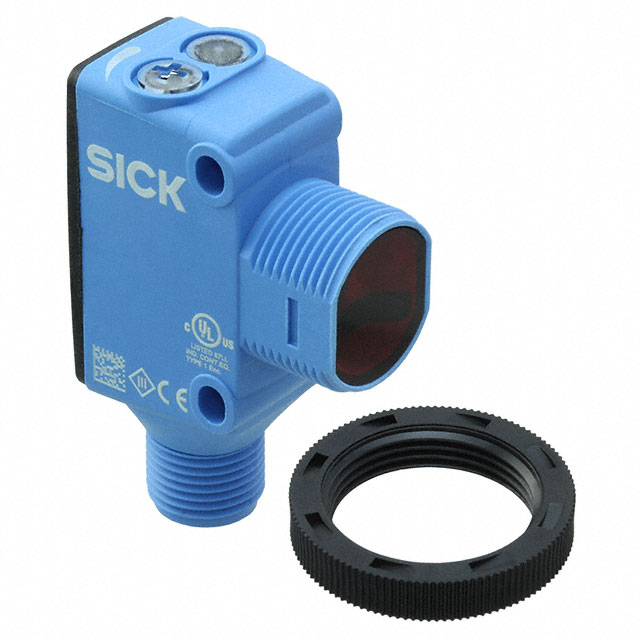

HTF18 Series

Catalog

SENSOR PROXIMITY 300MM NPN/PNP

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Ingress Protection	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Response Time	Adjustment Type	Output Configuration	Sensing Method	Cable Length	Cable Length	Sensing Distance [Min]	Sensing Distance [Max]
SICK, Inc. 1080327	10 VDC	30 VDC	Connector M12	IP67	Red (631nm)	-40 ¯C	65 °C	11.811 " 300 mm	0.197 in 5 mm	500 µs	Adjustable Potentiometer	NPN PNP	Proximity
SICK, Inc. 1071044	10 VDC	30 VDC	Connector M12	IP67	Red (631nm)	-40 ¯C	65 °C	11.811 " 300 mm	0.197 in 5 mm	500 µs	Adjustable Potentiometer	PNP	Proximity
SICK, Inc. 1074590	10 VDC	30 VDC	Cable with Connector	IP67	Red (631nm)	-40 ¯C	65 °C	11.811 " 300 mm	0.197 in 5 mm	500 µs	Adjustable Potentiometer	PNP	Proximity	78.74 "	2 m
SICK, Inc. 1078491	10 VDC	30 VDC	Connector M8	IP67	Red (631nm)	-40 ¯C	65 °C	11.811 " 300 mm	0.197 in 5 mm	500 µs	Adjustable Potentiometer	PNP	Proximity
SICK, Inc. 1075806	10 VDC	30 VDC	Connector M12 4POS	IP67 IP69K	Red LED	-40 C	65 °C	5.906 in	0.197 in	500 µs	Adjustable Potentiometer	PNP - Dark-ON/Light-ON - Selectable				5 mm	15 cm
SICK, Inc. 1075808	10 VDC	30 VDC	Cable	IP67 IP69K	Red (631nm)	-40 ¯C	65 °C	11.811 " 300 mm	0.197 in 5 mm	500 µs	Adjustable Potentiometer	PNP	Proximity	78.74 "	2 m
SICK, Inc. 1075807	10 VDC	30 VDC	Connector M12	IP67	Red (631nm)	-40 ¯C	65 °C	11.811 " 300 mm	0.197 in 5 mm	500 µs	Adjustable Potentiometer	NPN	Proximity
SICK, Inc. 1075809	10 VDC	30 VDC	Cable	IP67	Red (631nm)	-40 ¯C	65 °C	11.811 " 300 mm	0.197 in 5 mm	500 µs	Adjustable Potentiometer	NPN	Proximity	78.74 "	2 m
