52 Series

Catalog

CMC 1.7A 2LN TH

Part	Package / Case	Mounting Type	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)

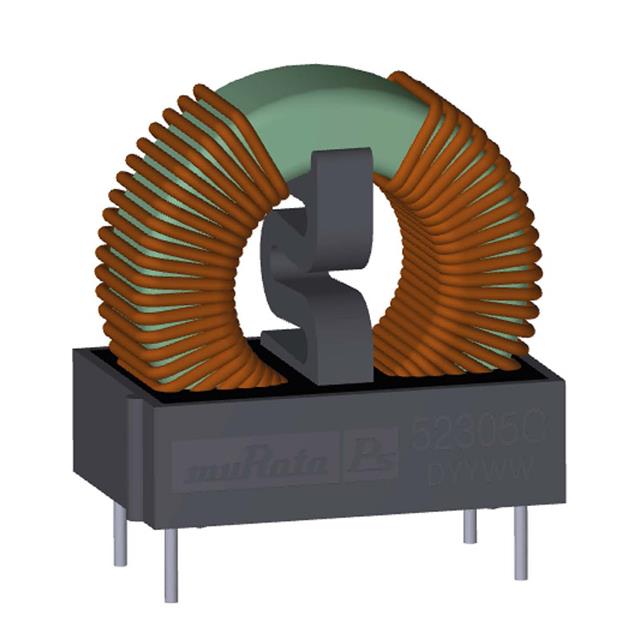

Murata Electronics 52106C	Vertical 4 PC Pin	Through Hole	193 mOhm	24 mm	16.3 mm	0.945 "	0.642 "	2	125 °C	-40 C	Power Line	31 mm	1.22 in
Murata Electronics 52305C	Vertical 4 PC Pin	Through Hole	45 mOhm	24 mm	16.3 mm	0.945 "	0.642 "	2	125 °C	-40 C	Power Line	31 mm	1.22 in	3.5 A
Murata Electronics 52505C	Vertical 4 PC Pin	Through Hole	91 mOhm	24 mm	16.3 mm	0.945 "	0.642 "	2	125 °C	-40 C	Power Line	31 mm	1.22 in	2.4 A
Murata Electronics 52705C	Vertical 4 PC Pin	Through Hole		24 mm	16.3 mm	0.945 "	0.642 "	2	125 °C	-40 C	Power Line	31 mm	1.22 in	2.2 A	107 mOhm
