PMA18A Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 18W

Part	Polarization	Efficiency	Cord Length	Cord Length	Input Connector	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [x]	Output Connector [diameter]	Output Connector	Form	Region Utilized	Voltage - Output	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]

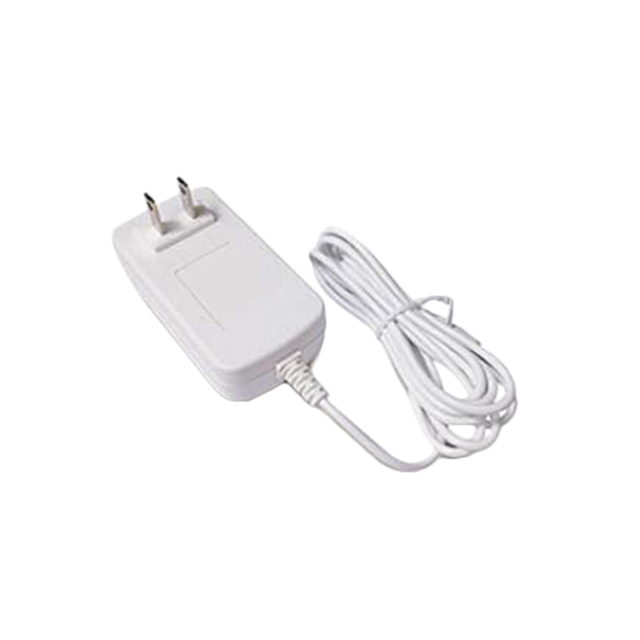

Phihong USA PMA18A-120PHW	Positive Center	Level VI	1.83 m	72 in	NEMA 1-15P	18 W	cULus	1.5 A	Fixed Blade	264 VAC	90 VAC	10 mm	2.1 mm 5.5 mm	Barrel Plug	Wall Mount	North America	12 V	Medical	3.23 in	43.2 mm	82 mm	1.7 in	30 mm	1.18 in	40 °C	10 °C
