MS128 Series

Catalog

RF SHIELD 0.500X0.520" SNAP FIT

Part	Mounting Type	Width - Overall [y]	Width - Overall [y]	Ventilation	Length - Overall	Length - Overall	Height - Overall [z]	Height - Overall [z]	Type	Length - Overall [x]	Length - Overall [x]	Width - Overall [y]
Masach Tech Ltd. MS128-10C-NS	Snap Fit	0.5 "	12.7 mm	Non-Vented	0.52 in	13.2 mm	3.5 mm	0.138 in	Cover

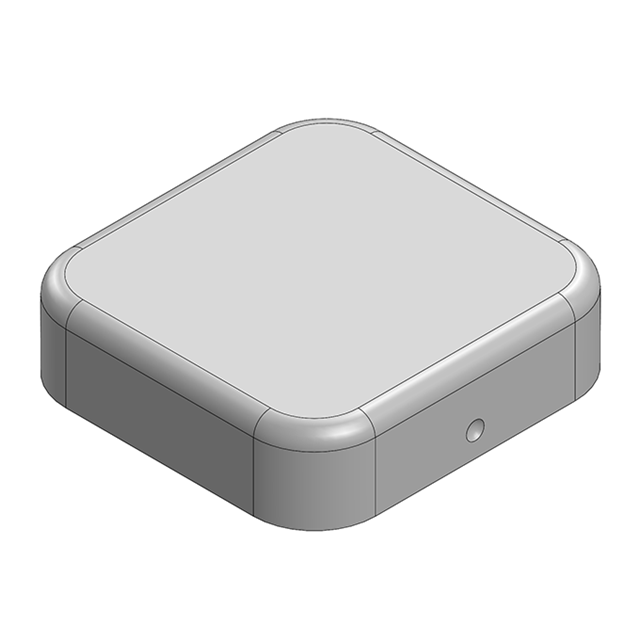

Masach Tech Ltd. MS128-10C	Snap Fit	0.5 "	12.7 mm	Non-Vented	0.52 in	13.2 mm	3.5 mm	0.138 in	Cover
Masach Tech Ltd. MS128-10S-NS	Solder	12.3 mm		Non-Vented			7.5 mm	0.295 in	Shield 1-Piece	12.8 mm	0.504 in	0.484 in
Masach Tech Ltd. MS128-10F-NS	Solder	12.3 mm					7.5 mm	0.295 in	Frame	12.8 mm	0.504 in	0.484 in

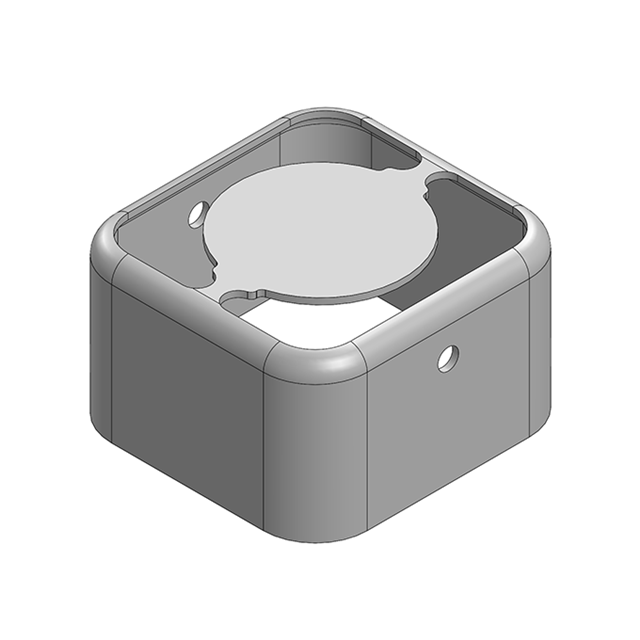

Masach Tech Ltd. MS128-10F	Solder	12.3 mm					7.5 mm	0.295 in	Frame	12.8 mm	0.504 in	0.484 in
