053307 Series

Manufacturer: Molex

Catalog

CONN HDR 34POS SMD TIN

Part	Contact Finish	Number of Positions	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Mounting Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions
Molex 0533073471	Tin	34	2	3.66 mm	0.144 in	0.8 mm	0.031 in	Surface Mount	4.5 mm 5.5 mm	120 µin	3.05 µm	Header Outer Shroud Contacts

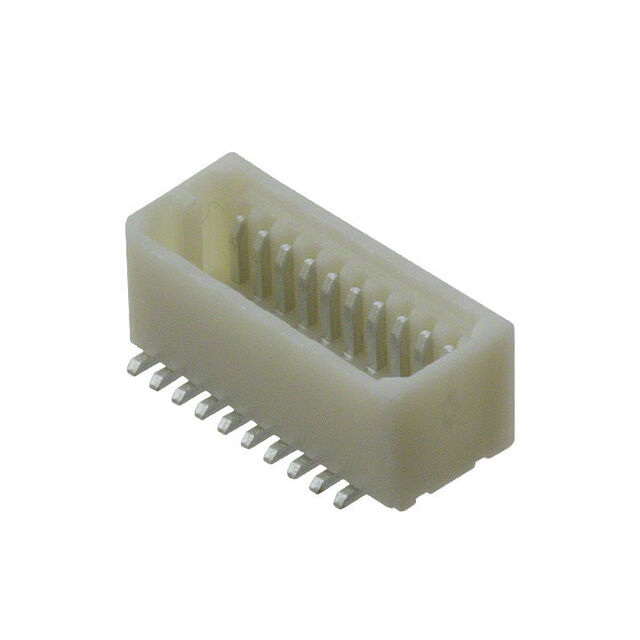

Molex 0533072071	Tin	20	2	3.66 mm	0.144 in	0.8 mm	0.031 in	Surface Mount	4.5 mm 5.5 mm	120 µin	3.05 µm	Header Outer Shroud Contacts

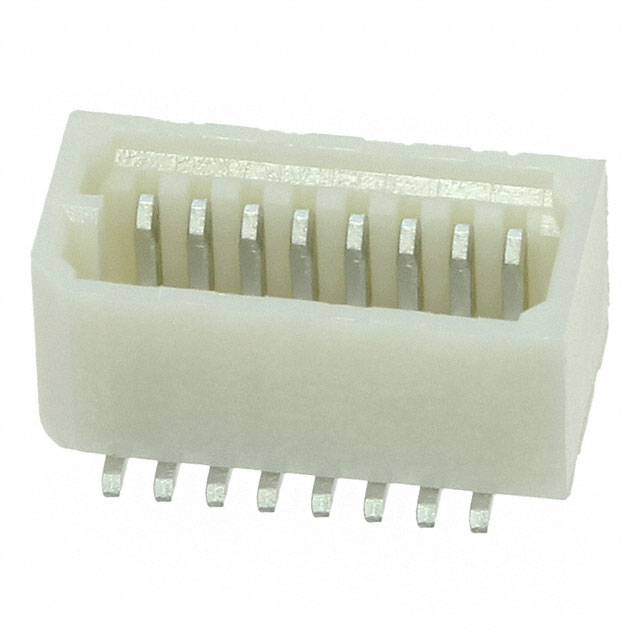

Molex 0533071691	Tin		2	3.66 mm	0.144 in	0.8 mm	0.031 in	Surface Mount	4.5 mm 5.5 mm	120 µin	3.05 µm	Header Outer Shroud Contacts	16
Molex 0533072471	Tin	24	2	3.66 mm	0.144 in	0.8 mm	0.031 in	Surface Mount	4.5 mm 5.5 mm	120 µin	3.05 µm	Header Outer Shroud Contacts
Molex 0533071671	Tin		2	3.66 mm	0.144 in	0.8 mm	0.031 in	Surface Mount	4.5 mm 5.5 mm	120 µin	3.05 µm	Header Outer Shroud Contacts	16

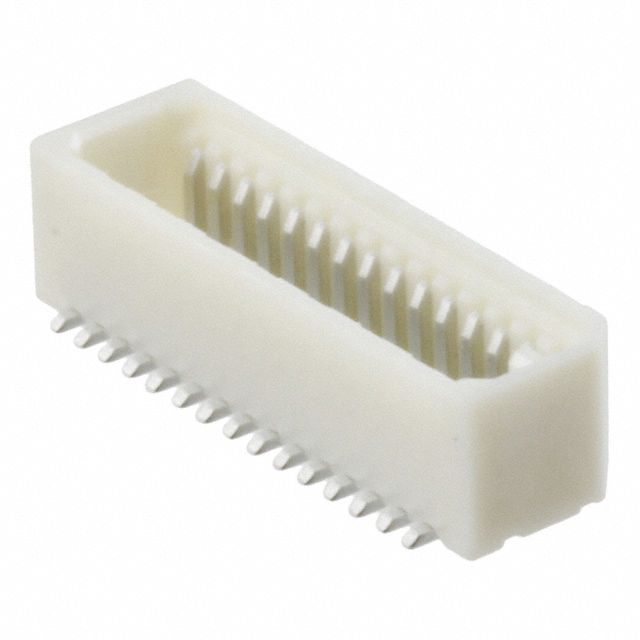

Molex 0533073071	Tin	30	2	3.66 mm	0.144 in	0.8 mm	0.031 in	Surface Mount	4.5 mm 5.5 mm	120 µin	3.05 µm	Header Outer Shroud Contacts

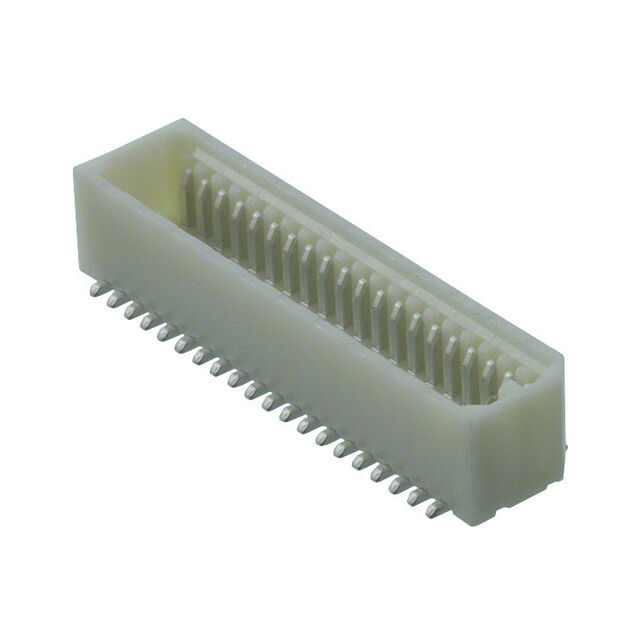

Molex 0533074071	Tin	40	2	3.66 mm	0.144 in	0.8 mm	0.031 in	Surface Mount	4.5 mm 5.5 mm	120 µin	3.05 µm	Header Outer Shroud Contacts
