5012-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

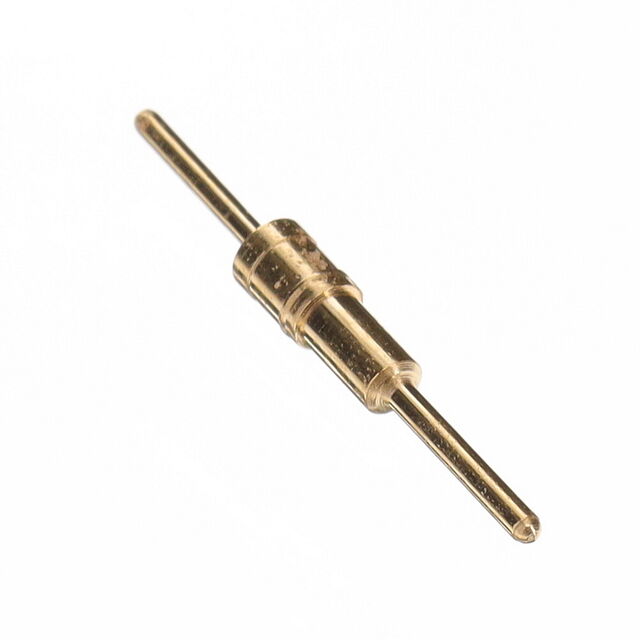

CONN PC PIN CIRC .019DIA GOLD
| Part | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Contact Material | Length - Overall [x] | Length - Overall [x] | Termination | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | 3.91 mm | 0.154 in | 20 µin | 0.51 µm | 0.265 " | 6.73 mm | Non-Insulated | 0.057 in | 1.45 mm | PC Pin | Double End | 1.45 mm | 0.057 in | Gold | Brass Alloy | 12.07 mm | 0.475 in | Press-Fit | 0.58 mm | 0.023 in | 0.019 in | 0.48 mm |
 Mill-Max Manufacturing Corp. | Through Hole | 3.91 mm | 0.154 in | 10 Áin | 0.25 Ám | 0.265 " | 6.73 mm | Non-Insulated | 0.057 in | 1.45 mm | PC Pin | Double End | 1.45 mm | 0.057 in | Gold | Brass Alloy | 12.07 mm | 0.475 in | Press-Fit | 0.58 mm | 0.023 in | 0.019 in | 0.48 mm |
Mill-Max Manufacturing Corp. | Through Hole | 3.91 mm | 0.154 in | 200 Áin | 5.08 Ám | 0.265 " | 6.73 mm | Non-Insulated | 0.057 in | 1.45 mm | PC Pin | Double End | 1.45 mm | 0.057 in | Tin | Brass Alloy | 12.07 mm | 0.475 in | Press-Fit | 0.58 mm | 0.023 in | 0.019 in | 0.48 mm |
