MSCBS Series

Catalog

CBS STUDDED MINI M4THREAD 1/4"

Part	Material	Mounting Type	Length - Overall	Length - Overall	Holding Type	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Between Board Height	Between Board Height	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Length - Overall [x]	Length - Overall [x]	Between Board Height

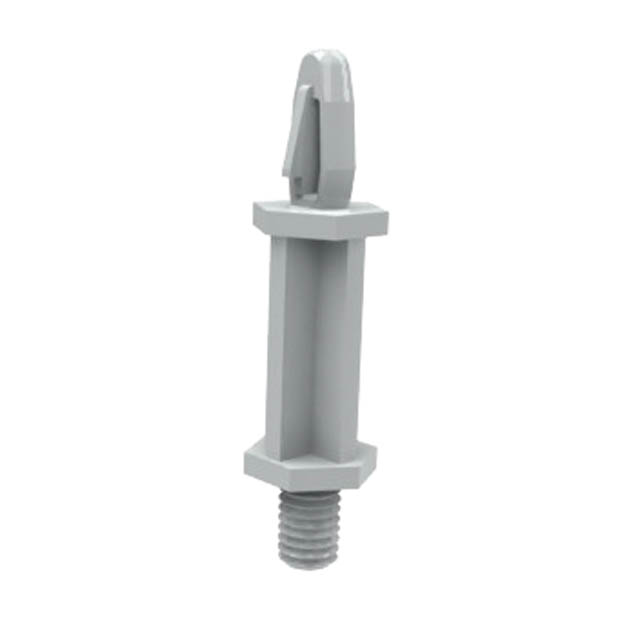

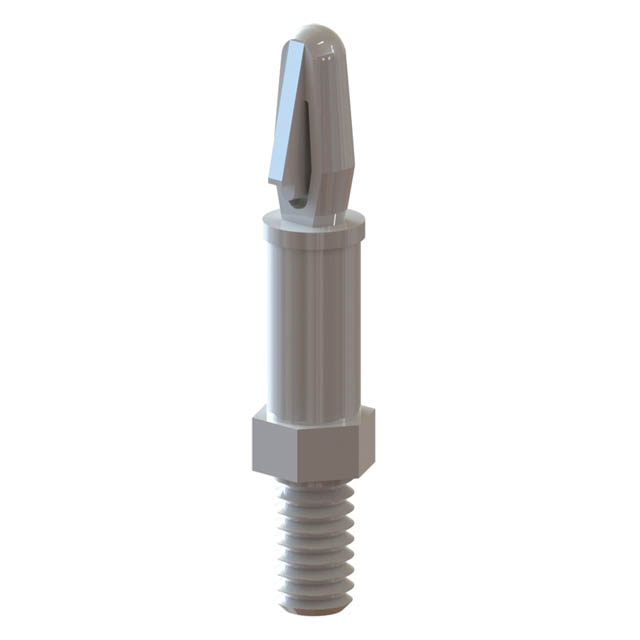

Essentra Components MSCBSM-M4-4-01	Nylon	Threaded Stud	0.844 in	21.43 mm	Snap Lock	0.125 in	0.125 in	3.18 mm	6.35 mm	0.25 in	1.6 mm	0.063 in
Essentra Components MSCBSM-M3-2-01	Nylon	Threaded Stud			Snap Lock								18.3 mm	0.72 in
Essentra Components MSCBS- 6-19	Nylon	Threaded Stud			Snap Lock				0.375 in	9.53 mm					0.375 "
Essentra Components MSCBSM-M3-10-01	Nylon	Threaded Stud	1.22 in	31 mm	Snap Lock				0.626 "	15.9 mm
Essentra Components MSCBSM-M3-8-01	Nylon	Threaded Stud			Snap Lock				0.5 in	12.7 mm			27.8 mm	1.094 in
Essentra Components MSCBS-12-01	Nylon	Threaded Stud			Snap Lock				0.75 "	19.05 mm			35.56 mm	1.4 in	0.75 "
Essentra Components MSCBS-14-01	Nylon	Threaded Stud			Snap Lock				0.875 in	22.23 mm					0.875 in
