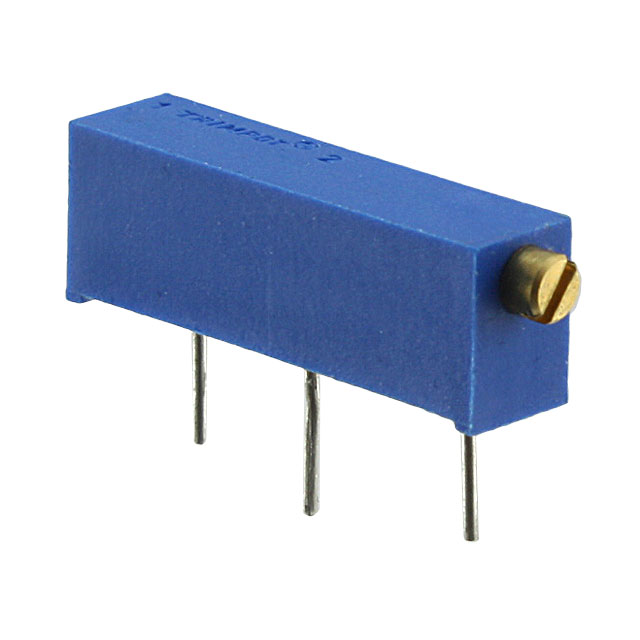

3006P Series

Catalog

TRIMMER 3K OHM 0.75W PC PIN SIDE

Part	Mounting Type	Termination Style	Tolerance	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Adjustment Type	Power (Watts)	Power (Watts)	Resistive Material	Temperature Coefficient	Number of Turns
Bourns Inc. 3006P-1-302LF	Through Hole	PC Pins	10 %	3 kOhms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-204	Through Hole	PC Pins	10 %	200000 Ohms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-501ZLF	Panel Mount Through Hole	PC Pins	10 %	0.5 kOhms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-501	Through Hole	PC Pins	10 %	0.5 kOhms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-100ZLF	Panel Mount Through Hole	PC Pins	10 %	10 Ohms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-203ZLF	Panel Mount Through Hole	PC Pins	10 %	20 kOhms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-101	Through Hole	PC Pins	10 %	100 Ohms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-105ZLF	Panel Mount Through Hole	PC Pins	10 %	1 MOhms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-251	Through Hole	PC Pins	10 %	250 Ohms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
Bourns Inc. 3006P-1-502Z	Panel Mount Through Hole	PC Pins	10 %	5 kOhms	6.35 mm	0.19 in	0.25 in	4.83 mm	Side Adjustment	3/4W	0.75 W	Cermet	100 ppm/°C	15
