2617-0 Series

Catalog

PIN PRESS FIT SOLDERLESS .018

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Terminal Type	Contact Finish Thickness	Contact Finish Thickness	Terminal Style	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Length - Above Flange [x]	Length - Above Flange [x]	Contact Material	Termination	Insulation	Mounting Type	Contact Finish	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]

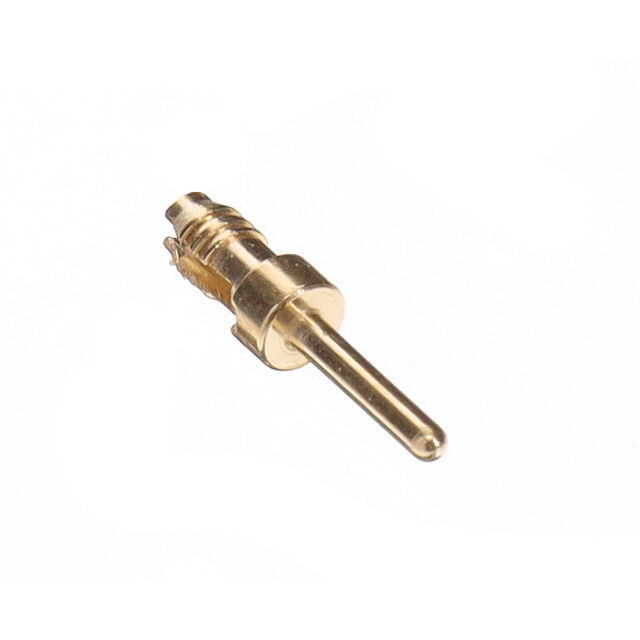

Mill-Max Manufacturing Corp. 2617-0-01-15-00-00-03-0	1.4 mm	0.055 in	0.227 in	5.77 mm	0.51 mm	0.02 in	PC Pin	10 Áin	0.25 Ám	Single End	0.04 in	1.02 mm	0.119 in	3.02 mm	1.96 mm	0.077 in	Brass Alloy	Press-Fit	Non-Insulated	Through Hole	Gold	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 2617-0-01-21-00-00-03-0	1.4 mm	0.055 in	0.227 in	5.77 mm	0.51 mm	0.02 in	PC Pin	20 µin	0.51 µm	Single End	0.04 in	1.02 mm	0.119 in	3.02 mm	1.96 mm	0.077 in	Brass Alloy	Press-Fit	Non-Insulated	Through Hole	Gold	1.12 mm	0.044 in
Mill-Max Manufacturing Corp. 2617-0-01-01-00-00-03-0	1.4 mm	0.055 in	0.227 in	5.77 mm	0.51 mm	0.02 in	PC Pin	200 Áin	5.08 Ám	Single End	0.04 in	1.02 mm	0.119 in	3.02 mm	1.96 mm	0.077 in	Brass Alloy	Press-Fit	Non-Insulated	Through Hole	Tin-Lead	1.12 mm	0.044 in
Mill-Max Manufacturing Corp. 2617-0-01-80-00-00-03-0	1.4 mm	0.055 in	0.227 in	5.77 mm	0.51 mm	0.02 in	PC Pin	200 Áin	5.08 Ám	Single End	0.04 in	1.02 mm	0.119 in	3.02 mm	1.96 mm	0.077 in	Brass Alloy	Press-Fit	Non-Insulated	Through Hole	Tin	1.12 mm	0.044 in
