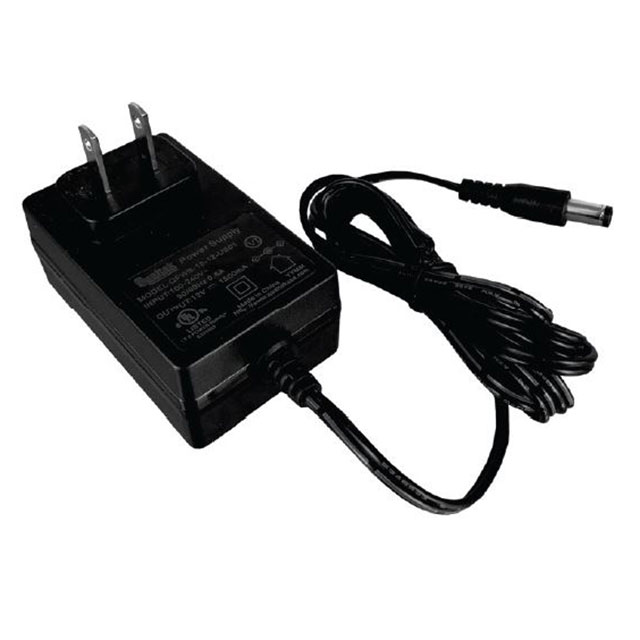

QFWB-18 Series

Manufacturer: Qualtek

Catalog

AC/DC WALL MOUNT ADAPTER 5V 11W

Part	Weight	Weight	Voltage - Output	Region Utilized	Approval Agency	Applications	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Power (Watts)	Cord Length	Cord Length	Input Type	Current - Output (Max) [Max]	Form	No Load Power Consumption	Input Connector	Output Connector [x]	Output Connector [diameter]	Output Connector	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Qualtek QFWB-18-5-US01	105.23 g	0.232 lb	5 V	North America	cULus	ITE (Commercial)	Level VI	100 VAC	240 VAC	40 °C	11 W	1.5 m	59 in	Fixed Blade	2.1 A	Wall Mount	100 mW	NEMA 1-15P	11 mm	2.1 mm 5.5 mm	Barrel Plug	Positive Center	28.8 mm	43.3 mm	71.3 mm	1.7 in	1.13 "	2.81 "
Qualtek QFWB-18-12-US01	105.23 g	0.232 lb	12 V	North America	cULus	ITE (Commercial)	Level VI	100 VAC	240 VAC	40 °C	18 W	1.5 m	59 in	Fixed Blade	1.5 A	Wall Mount	100 mW	NEMA 1-15P	11 mm	2.1 mm 5.5 mm	Barrel Plug	Positive Center	28.8 mm	43.3 mm	71.3 mm	1.7 in	1.13 "	2.81 "
Qualtek QFWB-18-9-US01	105.23 g	0.232 lb	9 V	North America	cULus	ITE (Commercial)	Level VI	100 VAC	240 VAC	40 °C	18 W	1.5 m	59 in	Fixed Blade	2 A	Wall Mount	100 mW	NEMA 1-15P	11 mm	2.1 mm 5.5 mm	Barrel Plug	Positive Center	28.8 mm	43.3 mm	71.3 mm	1.7 in	1.13 "	2.81 "
