R11442 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMB M STR PCB C100
| Part | Mating Cycles | Body Finish | Center Contact Plating | Voltage Rating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Connector Type | Frequency - Max [Max] | Fastening Type | Contact Termination | Shield Termination | Mounting Type | Center Contact Material | Number of Ports | Impedance | Housing Color | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

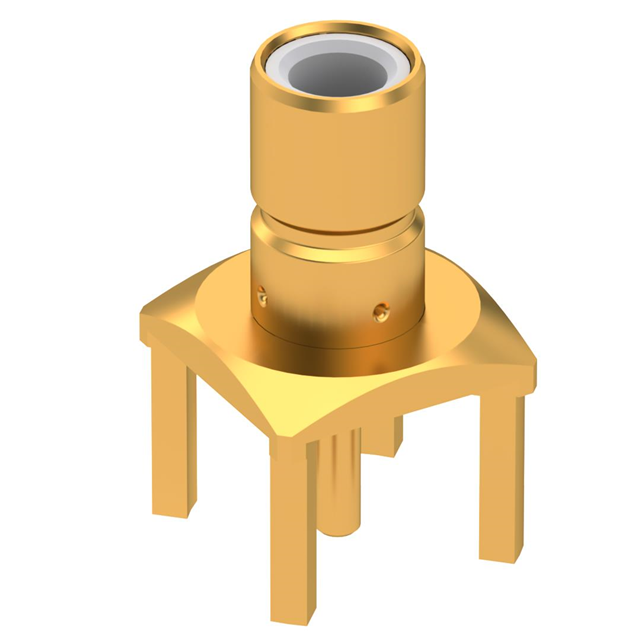

 Radiall USA, Inc. | 500 | Gold | Gold | 500 V | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Jack Male Pin | 4 GHz | Snap-On | Solder | Solder | Through Hole | Brass | 1 | 50 Ohms | Gold | SMB |

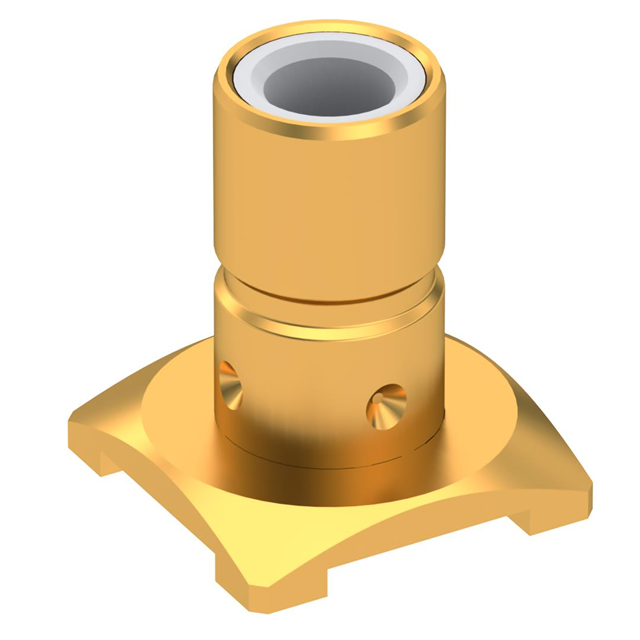

 Radiall USA, Inc. | 500 | Gold | Gold | 500 V | Brass | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Jack Male Pin | 4 GHz | Snap-On | Solder | Solder | Surface Mount | Brass | 1 | 50 Ohms | Gold | SMB |
