HLMP15 Series

Catalog

LED GREEN CLEAR T-1 T/H

Part	Voltage - Forward (Vf) (Typ)	Lens Transparency	Viewing Angle	Lens Size	Lens Size	Lens Color	Current - Test	Wavelength - Peak	Lens Style	Configuration	Mounting Type	Color	Millicandela Rating	Supplier Device Package	Package / Case	Height (Max) [Max] [z]	Viewing Angle [custom]
ON Semiconductor HLMP1520	2.1 V	Clear	45 °	3 mm	T-1	Green	10 mA	565 nm	Round with Domed Top	Standard	Through Hole	Green	12 mcd	T-1	Radial	6.3 mm

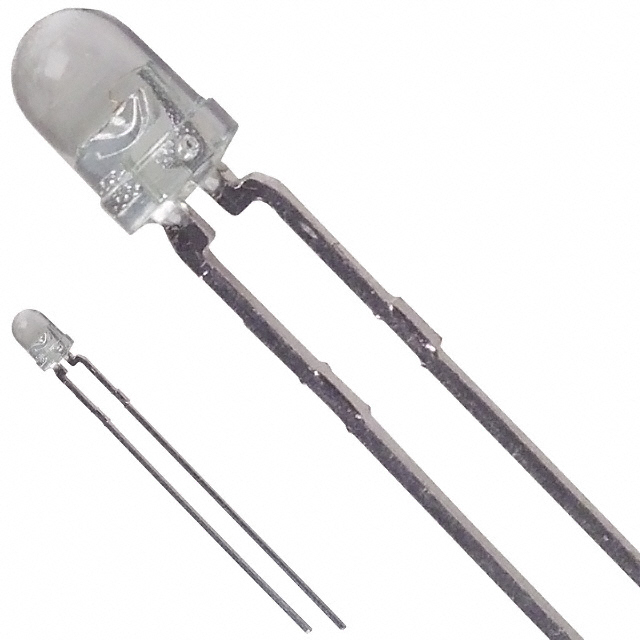

ON Semiconductor HLMP1540	2.2 V	Clear	45 °	3 mm	T-1	Green	20 mA	565 nm	Round with Domed Top	Standard	Through Hole	Green	60 mcd	T-1	Radial	6.3 mm

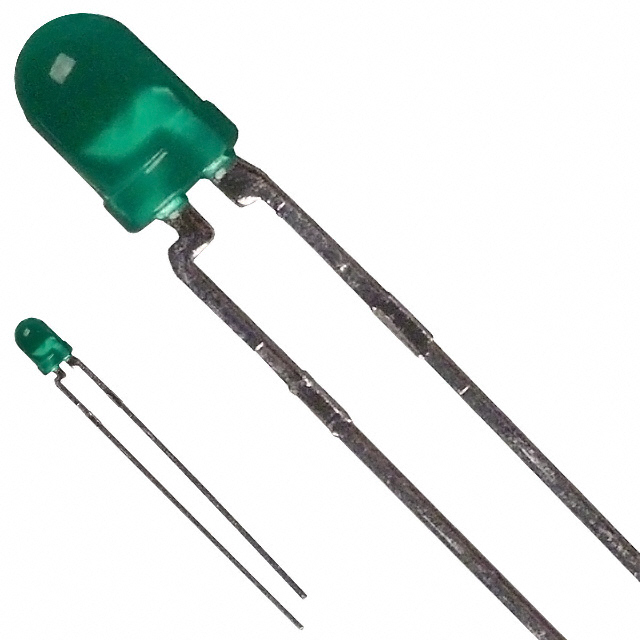

ON Semiconductor HLMP1523	2.2 V	Diffused		3 mm	T-1	Green	20 mA	562 nm	Round with Domed Top	Standard	Through Hole	Green	10 mcd	T-1	Radial	6.3 mm	90 °
ON Semiconductor HLMP1585	2.2 V	Diffused	75 °	3 mm	T-1	Green	10 mA	565 nm	Round with Domed Top	Standard	Through Hole	Green	8.5 mcd	T-1	Radial	6.35 mm
ON Semiconductor HLMP1521	2.1 V	Clear	45 °	3 mm	T-1	Green	10 mA	565 nm	Round with Domed Top	Standard	Through Hole	Green	12 mcd	T-1	Radial	6.3 mm
