SD-PNN05 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN RCPT FMALE 5POS SOLDER CUP
| Part | Material Flammability Rating | Shielding | Primary Material | Number of Positions | Insert Material [custom] | Shell Material | Orientation | Connector Type | Contact Finish - Mating | Shell Finish | Features | Ingress Protection | Contact Material | Backshell Material, Plating | Color | Fastening Type | Cable Opening | Cable Opening | Shell Size - Insert | Mounting Type | Contact Finish Thickness - Mating | Mounting Feature | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

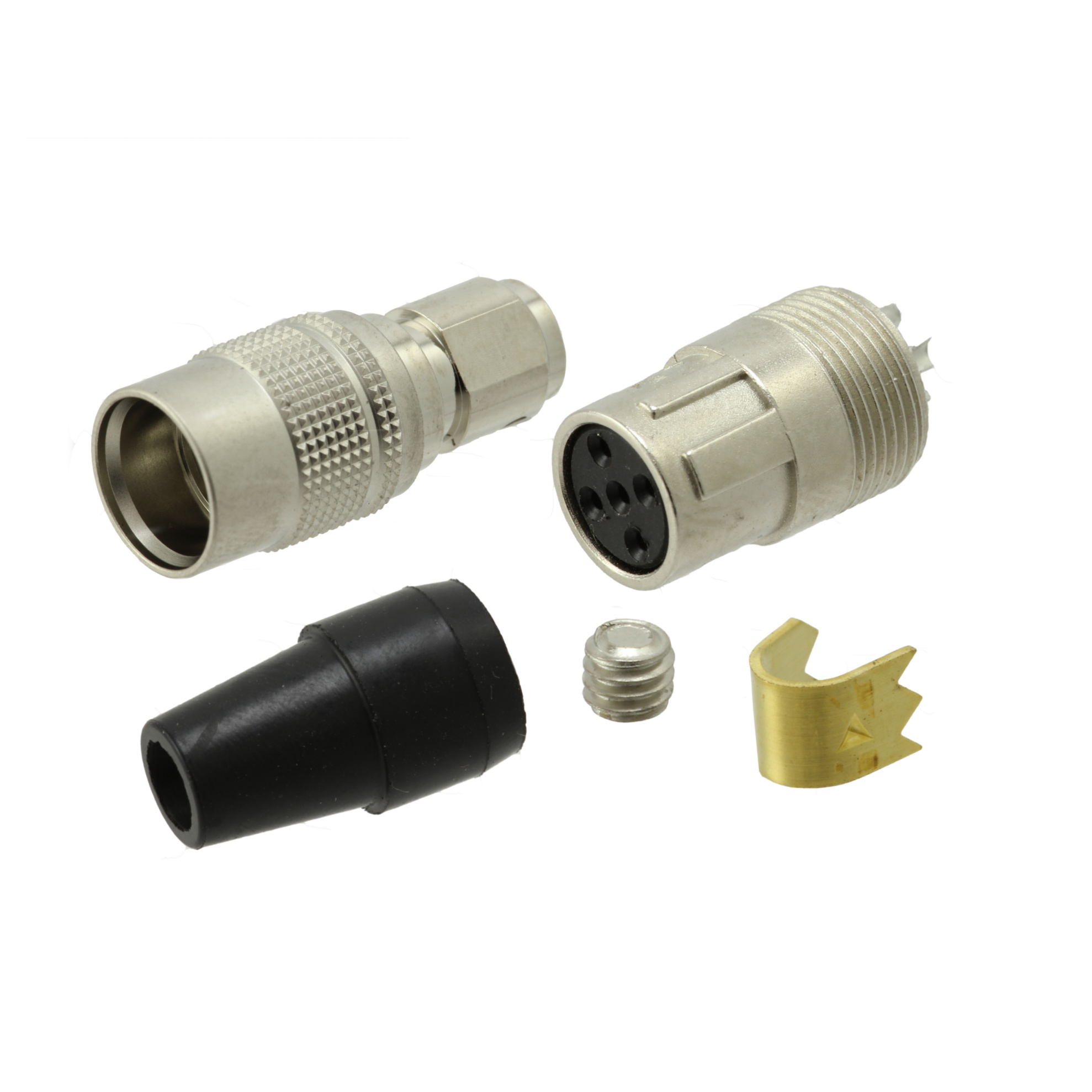

 Adam Tech | UL94 V-0 | Unshielded | Metal | 5 | Nylon 4/6 Polyamide (PA46) | Zinc Alloy | Keyed | Receptacle Female Sockets | Gold | Nickel | Backshell Cable Clamp Strain Relief | IP67 - Dust Tight Waterproof | Brass | Brass Nickel | Black Silver | Detent Lock | 7.39 mm | 0.291 in | DIN | Free Hanging (In-Line) | Flash | ||

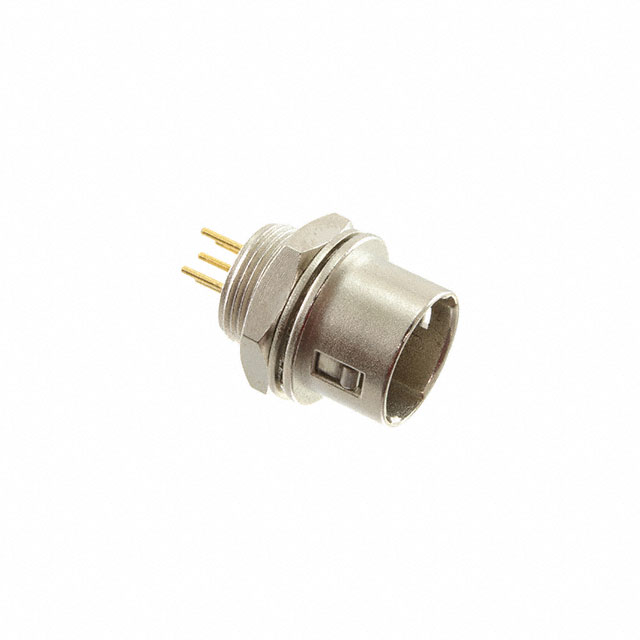

 Adam Tech | UL94 V-0 | Unshielded | Metal | 5 | Nylon 4/6 Polyamide (PA46) | Zinc Alloy | Keyed | Receptacle Male Pins | Gold | Nickel | IP67 - Dust Tight Waterproof | Brass | Silver | Detent Lock | DIN | Panel Mount Through Hole | Flash | Bulkhead - Rear Side Nut | Solder |
