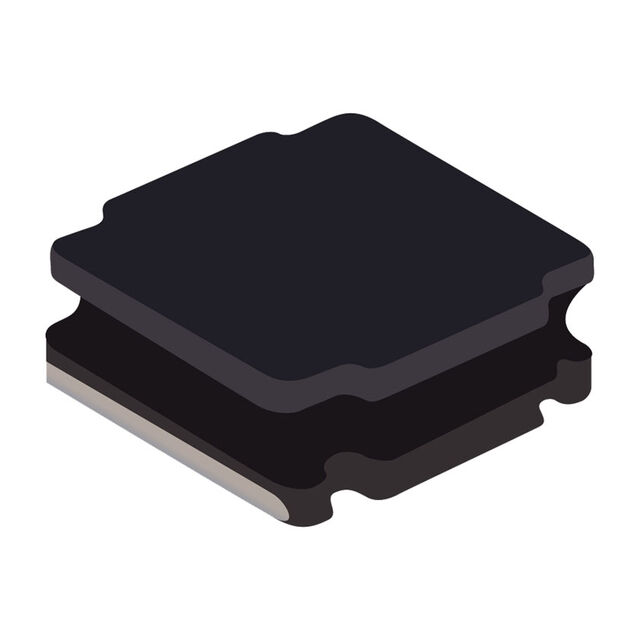

SRN3012BTA Series

Catalog

POWER INDUCTOR (SMD), 1.5 ΜH, 3.6 A, SEMISHIELDED, 3 A, SRN3012BTA SERIES

Part	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current Rating (Amps)	DC Resistance (DCR)	Material - Core	Tolerance	Inductance	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	Mounting Type	Supplier Device Package	Current - Saturation (Isat)	DC Resistance (DCR) [Max]
Bourns Inc. SRN3012BTA-1R5M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	3.6 A	62 mOhm	Ferrite	20 %	1.5 µH	102 MHz	1 MHz	10	Surface Mount	3012	3 A
Bourns Inc. SRN3012BTA-2R2M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	2.9 A		Ferrite	20 %	2.2 µH	95 MHz	1 MHz	10	Surface Mount	3012	2.4 A	90 mOhm
Bourns Inc. SRN3012BTA-R68M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	4.8 A		Ferrite	20 %	0.68 µH	175 MHz	1 MHz	10	Surface Mount	3012	4.3 A	37 mOhm
Bourns Inc. SRN3012BTA-4R7M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	2.1 A		Ferrite	20 %	4.7 ÁH	60 MHz	1 MHz	10	Surface Mount	3012		168 mOhm
Bourns Inc. SRN3012BTA-5R6M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	1.9 A		Ferrite	20 %	5.6 µH	55 MHz	1 MHz	10	Surface Mount	3012	1.4 A	240 mOhm
Bourns Inc. SRN3012BTA-150M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	1.2 A		Ferrite	20 %	15 µH	30 MHz	1 MHz	10	Surface Mount	3012	800 mA	480 mOhm
Bourns Inc. SRN3012BTA-1R0M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	4.2 A		Ferrite	20 %	1 µH	120 MHz	1 MHz	10	Surface Mount	3012	3.6 A	48 mOhm
Bourns Inc. SRN3012BTA-3R3M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	2.4 A	130 mOhm	Ferrite	20 %	3.3 µH	71 MHz	1 MHz	10	Surface Mount	3012	1.8 A
Bourns Inc. SRN3012BTA-R47M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	5.2 A	29 mOhm	Ferrite	20 %	470 nH	190 MHz	1 MHz	10	Surface Mount	3012	4.8 A
Bourns Inc. SRN3012BTA-470M	AEC-Q200	1.2 mm	0.047 "	100 kHz	3 mm	0.118 in	3 mm	0.118 "	Shielded	3030 Metric	1212	-55 C	125 °C	Drum Core Wirewound	650 mA		Ferrite	20 %	47 µH	16 MHz	1 MHz	10	Surface Mount	3012	520 mA	1.8 Ohm
