TERM BLCK HDR 21POS 90DEG 3.81MM
| Part | Number of Positions | Voltage - UL | Positions Per Level | Pitch [x] | Pitch [x] | Contact Material | Features | Contact Mating Finish | Housing Material | Number of Levels | Color | Header Orientation | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Operating Temperature [Min] | Operating Temperature [Max] | Type | Termination Style | Current - UL | Material Flammability Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

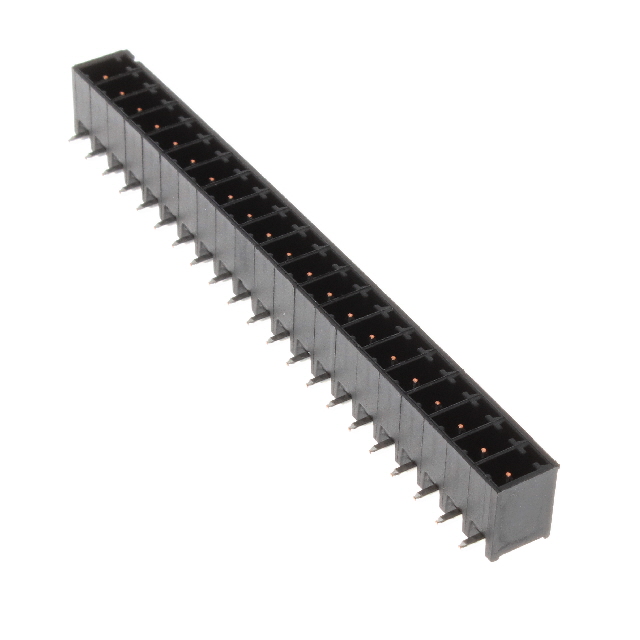

 TE Connectivity Raychem Cable Protection | 21 | 300 V | 21 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole |

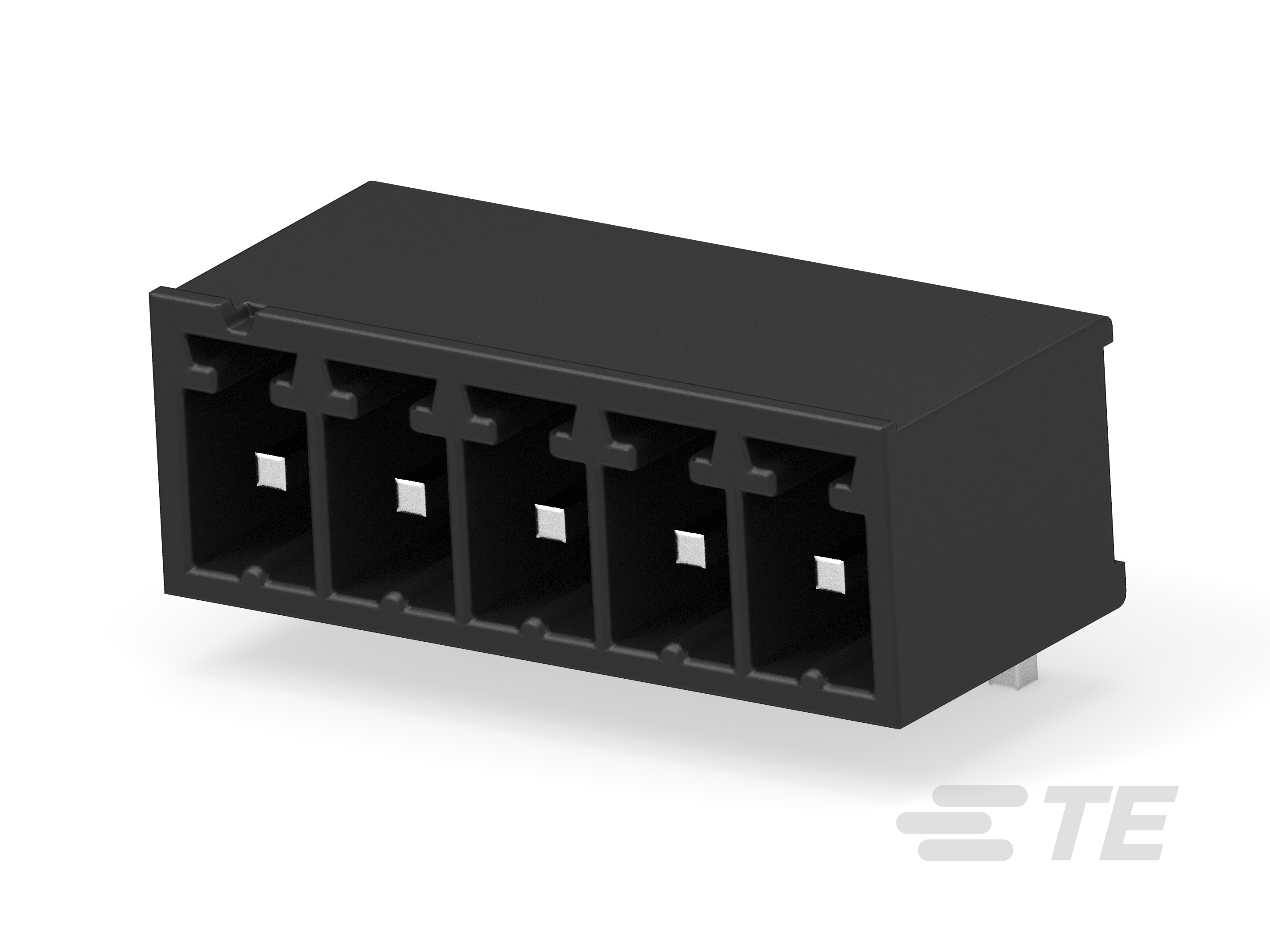

 TE Connectivity Raychem Cable Protection | 300 V | 5 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole | |
TE Connectivity Raychem Cable Protection | 11 | 300 V | 11 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole |

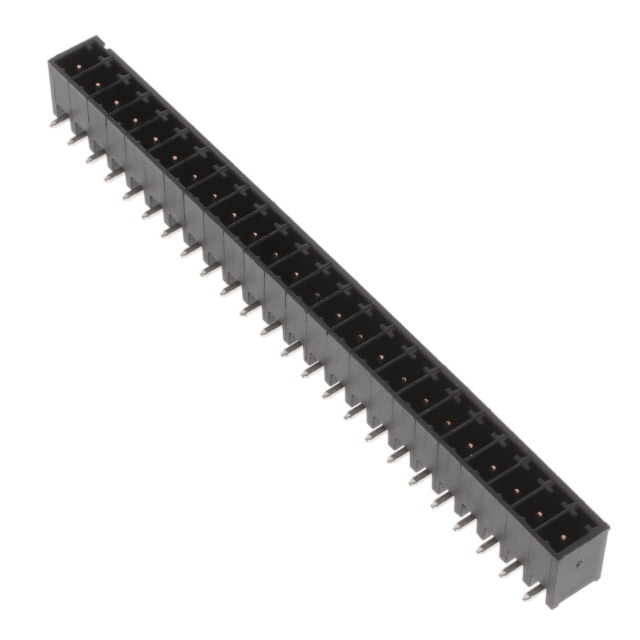

 TE Connectivity Raychem Cable Protection | 24 | 300 V | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole | |
 TE Connectivity Raychem Cable Protection | 23 | 300 V | 23 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole |

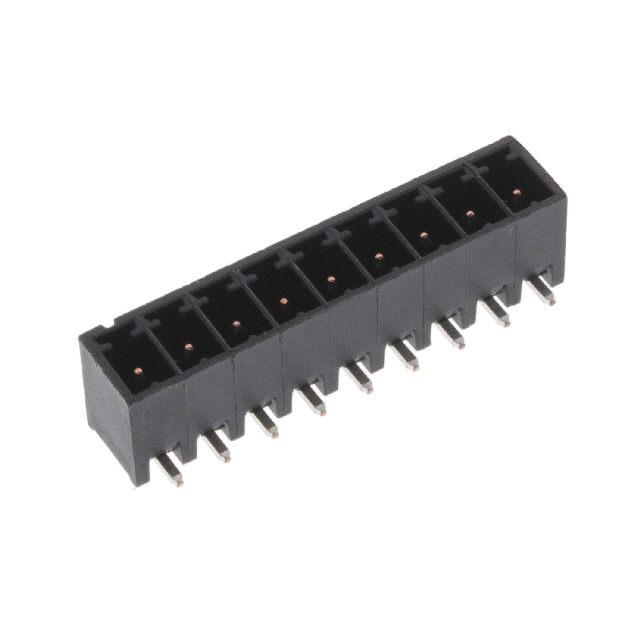

 TE Connectivity Raychem Cable Protection | 9 | 300 V | 9 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole |

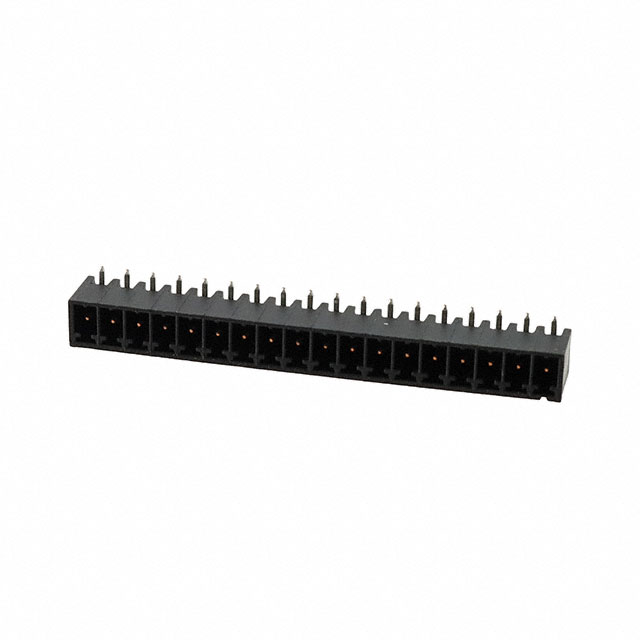

 TE Connectivity Raychem Cable Protection | 19 | 300 V | 19 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole |

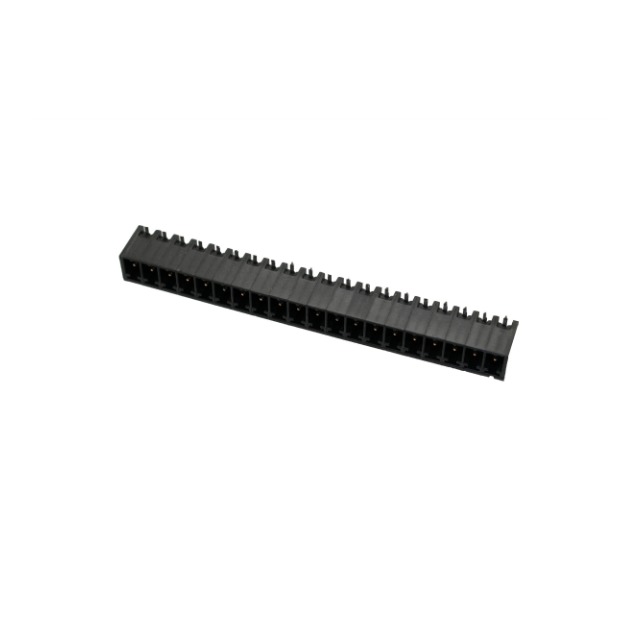

 TE Connectivity Raychem Cable Protection | 20 | 300 V | 20 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole |

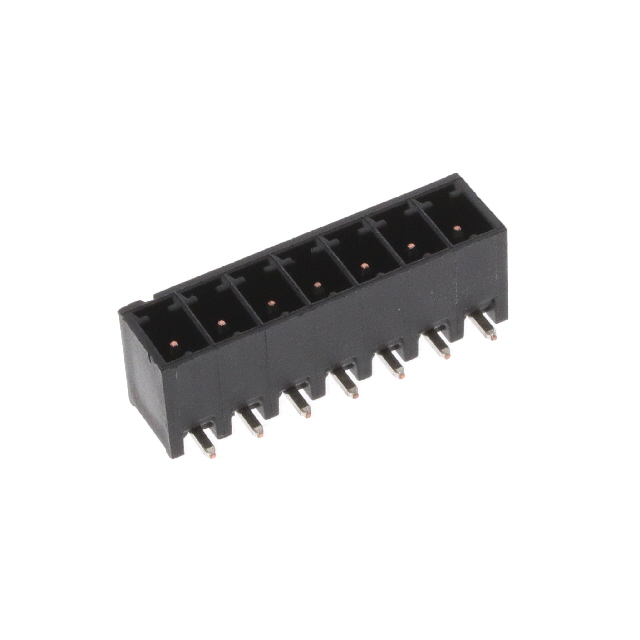

 TE Connectivity Raychem Cable Protection | 7 | 300 V | 7 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole |

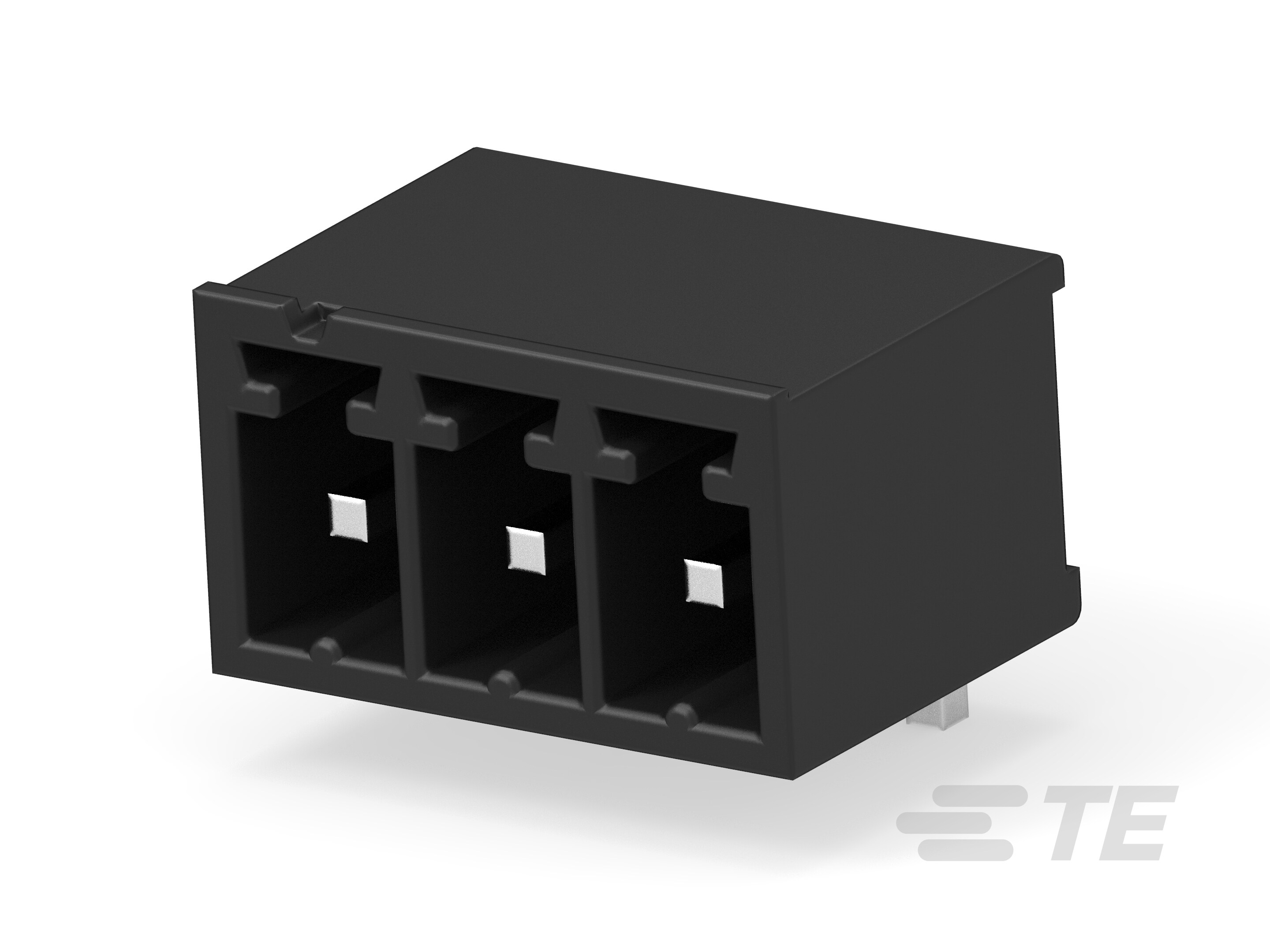

 TE Connectivity Raychem Cable Protection | 300 V | 3 | 0.15 in | 3.81 mm | Copper Alloy | High Temp Housing | Tin | Polyamide (PA) Nylon | 1 | Black | 90° Right Angle | 0.285 in | 7.25 mm | 0.075 in | 1.9 mm | -40 °C | 105 ░C | Header Male Pins Shrouded (4 Side) | Solder | 11 A | UL94 V-0 | Through Hole |
