25102 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

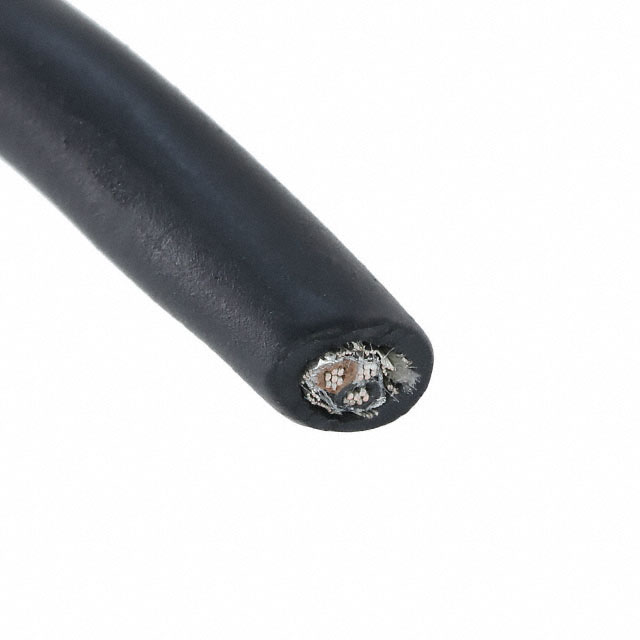

CABLE 2COND 22AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Ratings | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Conductor Insulation | Number of Conductors | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Material | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | ISO 10993 UL Style 20668 | Multi-Conductor | -30 ░C | 90 °C | Polyurethane (PU) | Poly-Vinyl Chloride (PVC) | 2 | 304.8 m | 1000 ft | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | 30 AWG | 7 | Slate | 22 AWG | Braid Foil | 0.196 " 4.98 mm | 300 VDC | Copper Tinned | |||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | ISO 10993 UL Style 20668 | Multi-Conductor | -30 ░C | 90 °C | Polyurethane (PU) | Poly-Vinyl Chloride (PVC) | 2 | 0.813 mm | 0.032 in | Biological Compatibility Drain Wire Rip Cord | 30 AWG | 7 | Black | 22 AWG | Braid Foil | 0.196 " 4.98 mm | 300 VDC | Copper Tinned | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity |
