SJD12C Series

Manufacturer: YAGEO

Catalog

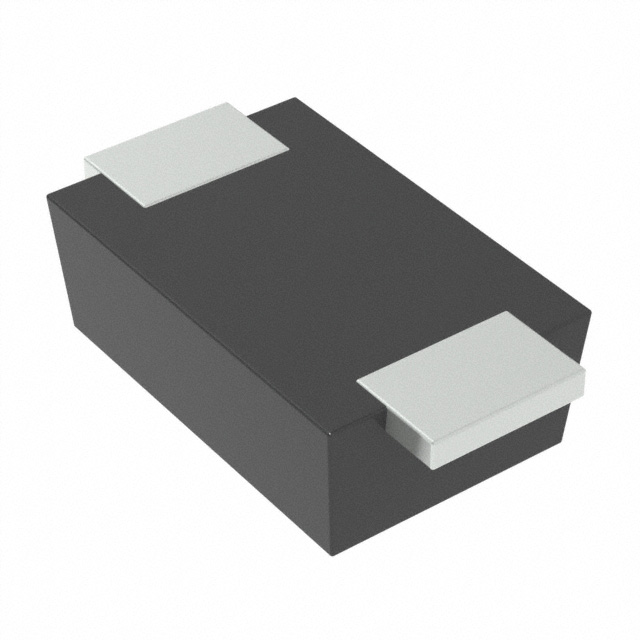

TVS DIODE 70VWM 113VC SOD123S

Part	Package / Case	Type	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Mounting Type	Bidirectional Channels [custom]	Power - Peak Pulse
YAGEO SJD12C70L01	DO-219AA	Zener	1.8 A	70 V	113 V	SOD-123S	General Purpose	150 °C	-55 °C	77.8 V	Surface Mount	1	200 W
YAGEO SJD12C30L01	DO-219AA	Zener	4.2 A	30 V	48.4 V	SOD-123S	General Purpose	150 °C	-55 °C	33.3 V	Surface Mount	1	200 W
YAGEO SJD12C24L01	DO-219AA	Zener	5.2 A	24 V	38.9 V	SOD-123S	General Purpose	150 °C	-55 °C	26.7 V	Surface Mount	1	200 W
YAGEO SJD12C36L01	DO-219AA	Zener	3.5 A	36 V	58.1 V	SOD-123S	General Purpose	150 °C	-55 °C	40 V	Surface Mount	1	200 W
YAGEO SJD12C15L01	DO-219AA	Zener	8.2 A	15 V	24.4 V	SOD-123S	General Purpose	150 °C	-55 °C	16.7 V	Surface Mount	1	200 W
YAGEO SJD12C12L01	DO-219AA	Zener	10.1 A	12 V	19.9 V	SOD-123S	General Purpose	150 °C	-55 °C	13.3 V	Surface Mount	1	200 W
YAGEO SJD12C6.5L01	DO-219AA	Zener	17.9 A	6.5 V	11.2 V	SOD-123S	General Purpose	150 °C	-55 °C	7.22 V	Surface Mount	1	200 W
